Hoover 1100 - Manual (Page 11)

1.
2.
3.
4.
5.
6.

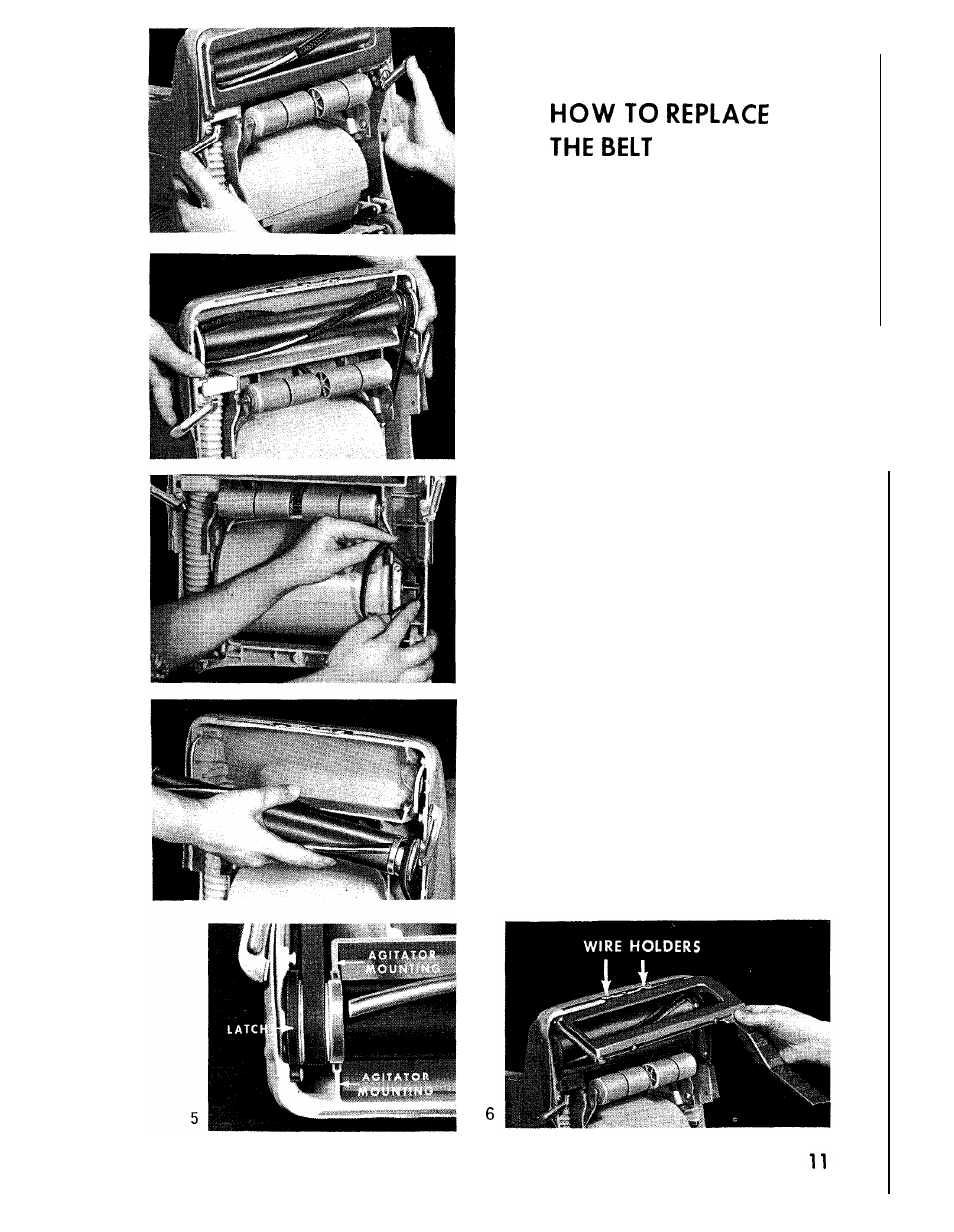

Turn cleaner over. Remove metal
plate on bottom of cleaner by
pushing latches toward the out-
side of cleaner. Lift plate to re-
lease it from wire holders.
Push latches, that hold agitator,
in and toward center of cleaner
until they are free. Lift out
agitator and remove old belt.
Place new belt over motor pulley,
with smooth side next to pulley,
then over agitator.
Replace agitator and latch it in
position.
Make sure that belt is in center
of pulley and free of agitator
mountings and latch. Turn agitator
by hand to be sure that belt is in
proper position in pulley groove.
R e p l a c e b o t t o m p l a t e . P l a c e
metal knobs, on front of plate, in
wire holders. Check to see that
latches are pushed back and will
not be covered by plate. Place
plate in position and latch se-
cure ly . Turn agitator by hand to
be sure that belt is in proper
position on pulley.
