56

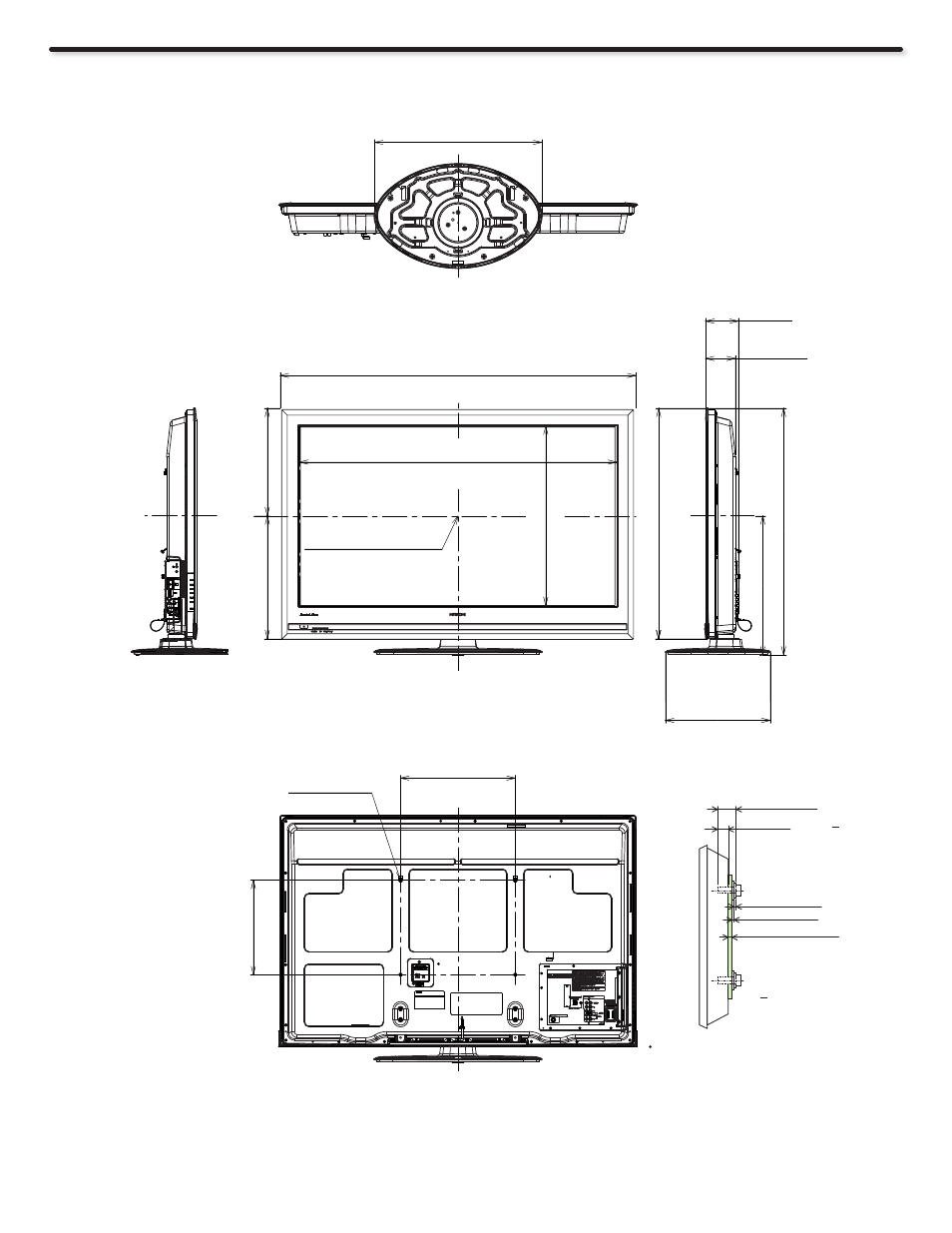

Set Dimensions
P50X902 model (Includes Table Top Stand) Weight (lbs./kg): 108.4/49.2
Rear View
Use as Reference for Wall Mount Bracket
48-7/8 (1242)
4-1/2 (120)
14-7/16 (366)
33-31/32 (863)
31-15/16 (81
1)
14-13/16 (376.5)
17-3/32 (434.5)
(ACTIVE AREA)
43-9/16 (1105.9)
(ACTIVE
AREA)
24-1
1/16 (626.4)
19-1/8 (485.5)
(DEPTH)
4-5/16 (109.6)
15-3/4 (400)
13 (330)
23-1/16 (586)
CENTER OF THE SCREEN
HOLE FOR
WALL MOUNT
(4 PLACES)
Units : Inches (mm)
Screw Length (A)
Insertion length (B)
Spring Washer (C)
Plane Washer (D)
Wall Mount Bracket (E)
Example :
A = B+C+D+E
A: 13~15 mm.
B: 9~11 mm.
C: 1 mm.
D: 1 mm.
E: 2 mm.
The screw type :Theread ISO M6- (Metric
type, do not use Standard type).
Side View
Wall Mount Screw specification
