MAINTENANCE RIDER 11 BIO/13 BIO

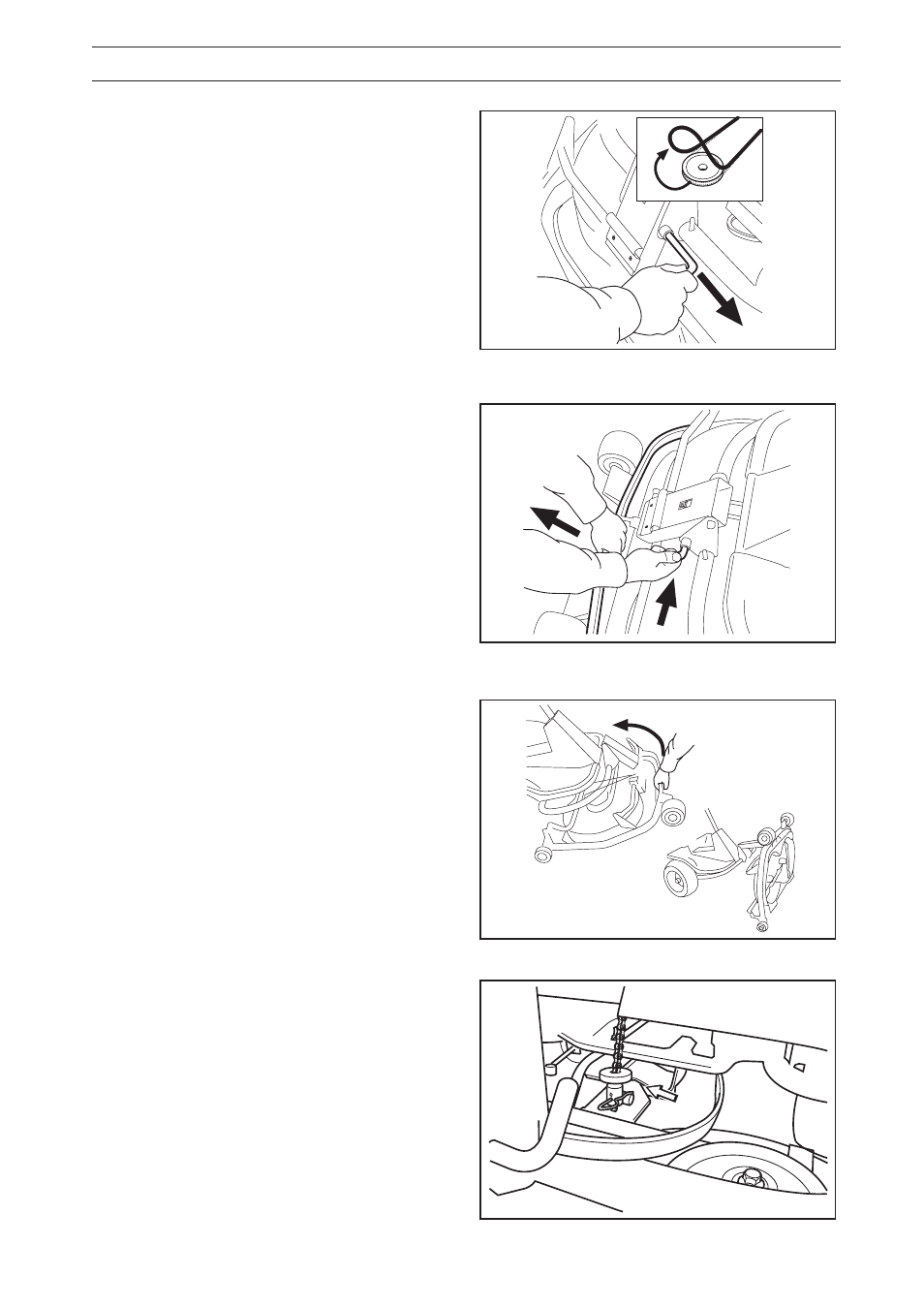

8. Lift off the drive belt (1). Then pull out the pin
(2).
Take care not to get your hand trapped.
10. Grasp the front edge of the cutting unit, pull out
and raise into the service position.
Restoring from service position
To leave the service position, reverse the
procedures set out in “Placing in the service
position”. Make sure that the cutting unit’s ”lug”
enters the loop correctly on the underside of the
machine, see diagram.
2
1
9. Pull the frame forwards and refit the pin.
If the cylindrical bolt, which is now holding the
cutting unit is removed, the cutting unit can be
lifted off.
