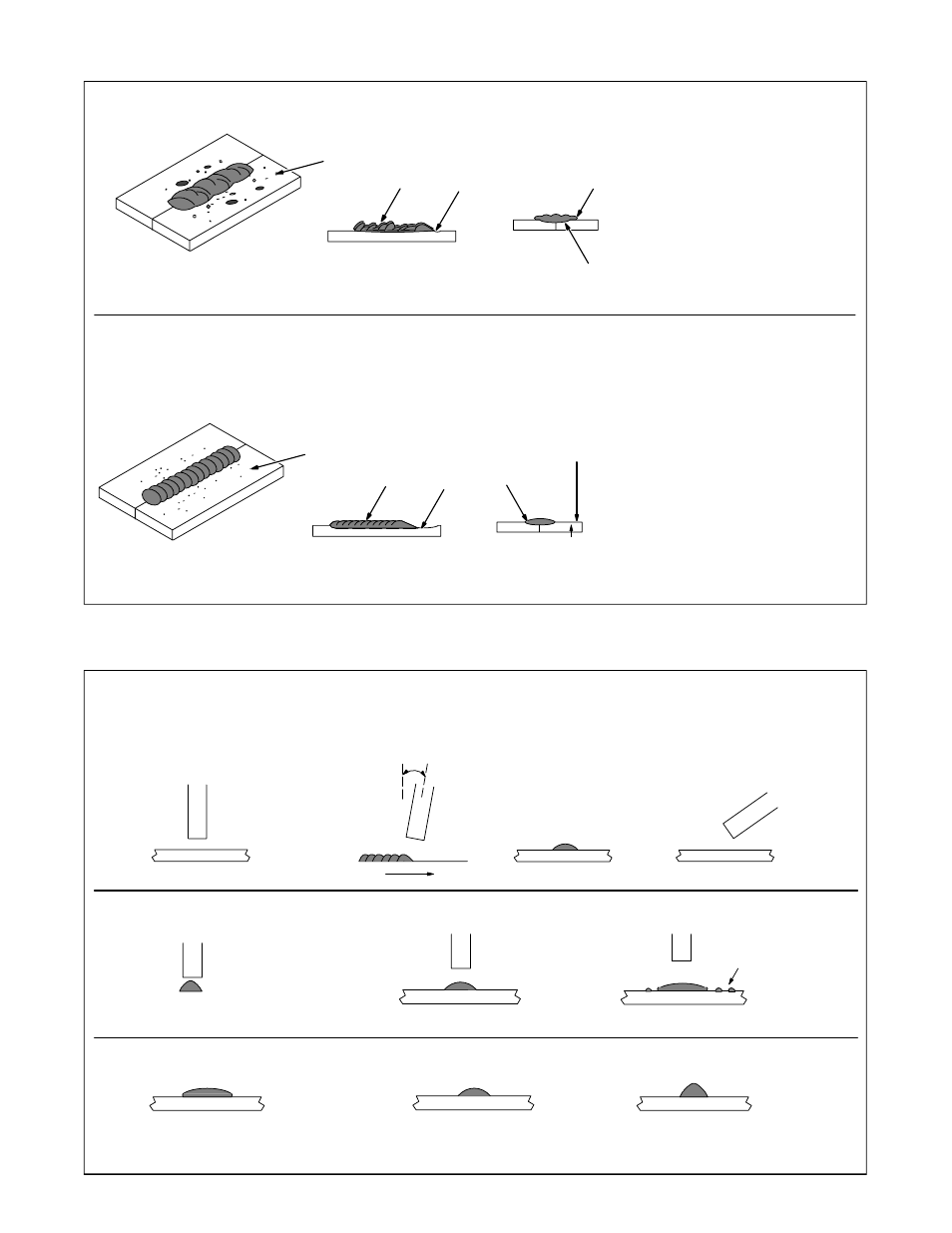

8-5. Weld Bead Characteristics
Ref. S-0052-B
1 Large Spatter Deposits
2 Rough, Uneven Bead
3 Slight Crater During Welding
4 Bad Overlap
5 Poor Penetration
1 Fine Spatter
2 Uniform Bead
3 Moderate Crater During
Welding
Weld a new bead or layer for each
1/8 in (3.2 mm) thickness in metals
being welded.
4
No Overlap
5 Good Penetration Into Base
Metal
5
4 2 3
1
4
1 5
Good Weld Bead
2 3
Poor Weld Bead
S-0053-A
8-6. Conditions That Affect Weld Bead Shape
S-0061
Angle Too Small
10
° - 30
°
Angle Too Large Correct Angle
Drag
Electrode Angle
Too Short Normal Too Long
Arc Length
Slow Normal Fast
Spatter
Travel Speed
