Heath Zenith SL-6166 - Manual (Page 3)

-- 595-5494-11
12
45678
12
45678
Inside
Doorbell
Button

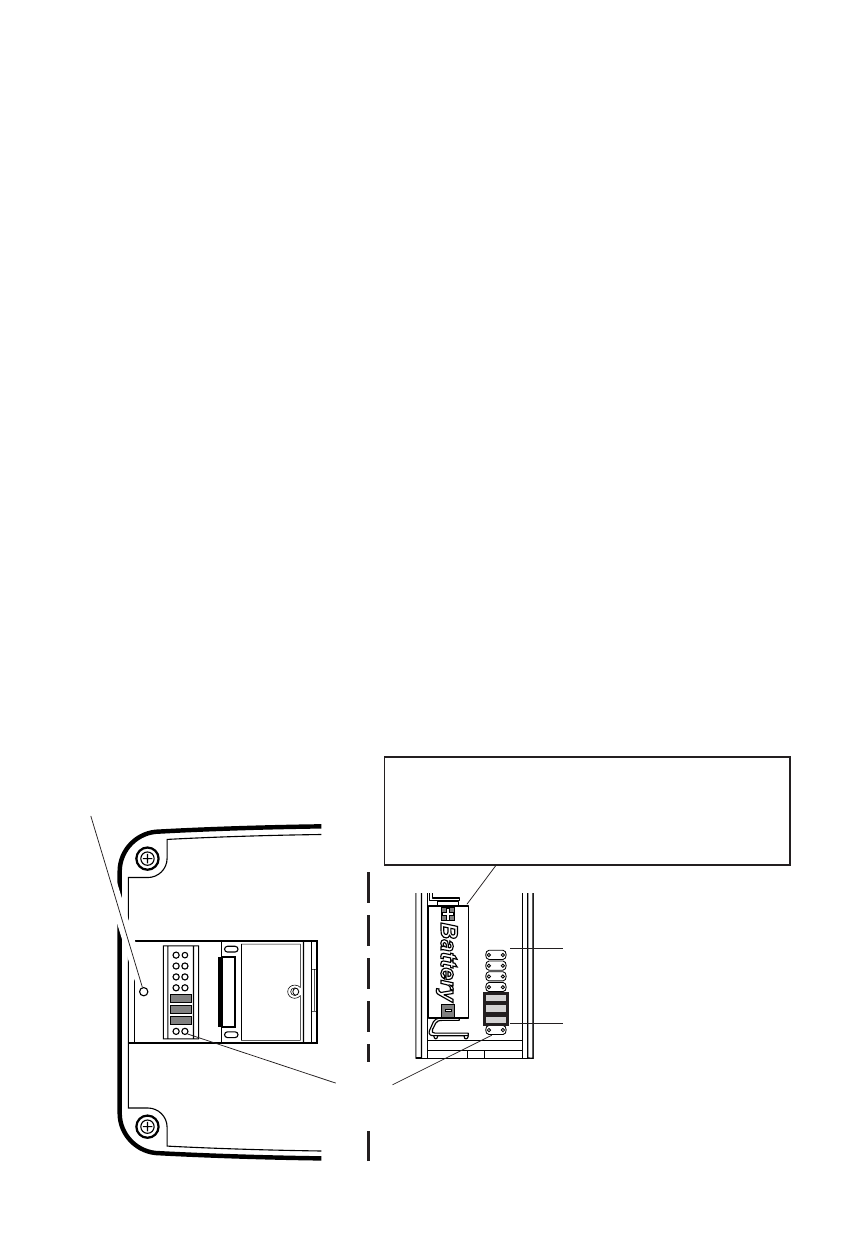

2. Open the cases and locate the jumpers on both the doorbell button and
chime (See illustration).
. The doorbell button and chime both have eight different jumper locations.
The jumper positions 1 through 7 are used for setting the code.
4. To change the code, add and/or remove jumpers as needed. There are 128
different combinations. It is recommended to only change one jumper at a
time and then check to see if system is functioning properly. Note: Jumpers
in positions 1 through 7 must be exactly the same for both the doorbell button
and chime for this system to function.
Tune Settings
Your Heath ® /Zenith wireless doorbell has different selectable tunes: Ding
(one note), Ding-Dong (two note), or Westminster (eight note). The factory
setting is for the Westminster; however, this can be changed by following the
instructions below.
•
Ding (one note tune)
Doorbell button: Add a jumper to location 8.
•
Ding-Dong (two note tune)
Doorbell button: Remove jumper from location 8.
Chime: Remove jumper from location 8.
•
Westminster (Eight note tune)
Doorbell button: Remove jumper from location 8.
Chime: Add a jumper to location 8.
Note: Model 6167 has doorbell buttons for both front and back door. The back
door must use the
Ding tune and the front door may use either the Ding-Dong
or Westminster tune.
Doorbell Button Battery Replacement
Install an alkaline type A23 12 Volt
battery. The positive terminal should be
positioned as shown.
* Code Settings 1-7
Must Match Both
Doorbell Button and
Chime
Remove screw to
open access door
Tune
Setting
Back of
Chime
Note: Some models
might require the use of
tweezers to remove and
replace the jumpers.
