Video connections, Figure 5 – video connections – Harman-Kardon AVR 125 User Manual
Page 49
SURR
, 1A
, 0.5A
DVD PLAYER
VCR (Video 1)
TV or Video Monitor (Video 2)
In/Rec
Out/Play
OUT
IN
L R VIDEO
L R Video S-Video
Optical Coax
L R Video S-Video
SURR
VIDEO CONNECTIONS
Device Connection Options
: Recommended connections are shown in red, but connections may be made to best fit your system requirements. The Video 3 inputs are on the front panel of the receiver.
Device
Input Name
Audio Input Connections
Audio Output Connections
Video Connections
CD Player
CD
CD
L/R Inputs, Optical Digital 1 or 2, or
Coaxial Digital
1 or
2
Not required
Not required
DVD Player
DVD
Coaxial Digital 1
or 2, Optical Digital 1 or 2, or DVD L/R Inputs
Not required
DVD
Composite or
S-Video
VCR Video
1
Video 1 L/R Inputs
Video 1 L/R Outputs
Video 1
Composite or S-Video
Input and Output
Cable Box or Satellite Receiver
Video 3
Video 3 L/R Inputs,
Optical Digital 3
*
, or Coaxial Digital 3
*
Inputs
Not required
Video 3
Composite or S-Video
Input
Audio Recorder
Tape
Tape L/R Inputs,
Optical Digital 1/2
**
or Coaxial Digital 1/2
**
Inputs
Tape L/R Outputs,
Digital Optical
**
or Coaxial Outputs
**
Not required
TV or Projector
Video 2
or 3
Video 2
or 3 L/R Inputs
Not required
Monitor-Out
Composite and/or S-Video
*
Check with your cable company to determine whether digital audio is available for all channels. It may be necessary to make BOTH analog and digital connections if it is not.
**
Digital audio recorders only.
250 Crossw
ays P
ark Drive
,W
oodbury
,New
York 11797 www
.harmankardon.com © 2002 Harman International Industries
,Incorpor
ated P
art No
.:
CQE1A188Z

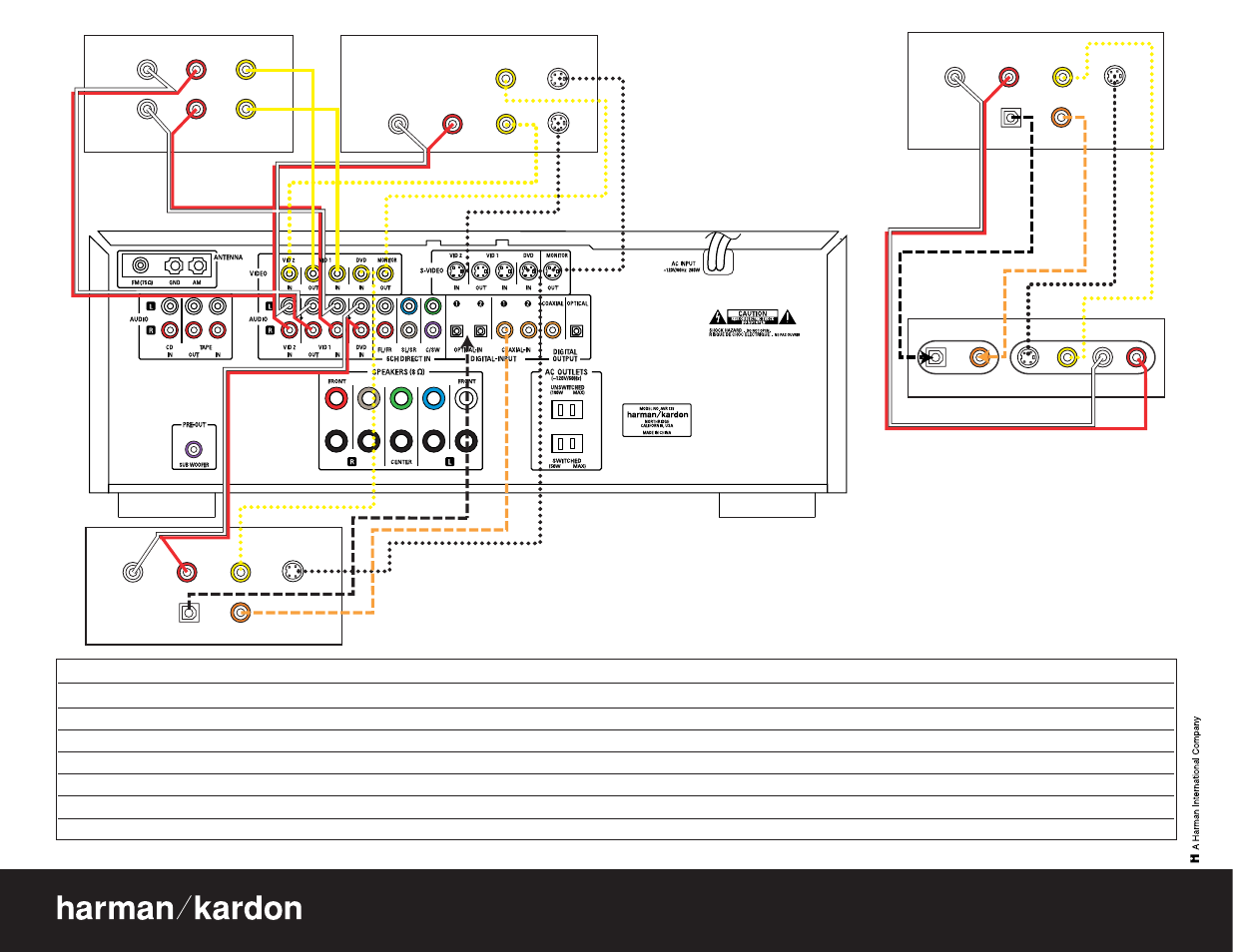

Figure 5 – Video Connections
Dashed lines (– – – –) indicate coax and optical digital audio connections.
Choose either type (but not both) for each digital audio source.
Dotted lines (••••) indicate composite or S-Video connections. S-Video is the
preferred connection when available, but you may use either type (but not both).
When both composite and S-Video sources are connected to the AVR you must
also connect both outputs from the AVR to your TV.
Power for the Digital Revolution
.
®
®
Cable or Sat or HDTV Set-Top Box (Video 3)
FRONT PANEL
OUT
L R Video S-Video
Optical Coax
Optical 3 Coax 3
Digital Input
Video 3
S-Video Video L-Audio-R
