AVR 125 QUICK-START GUIDE

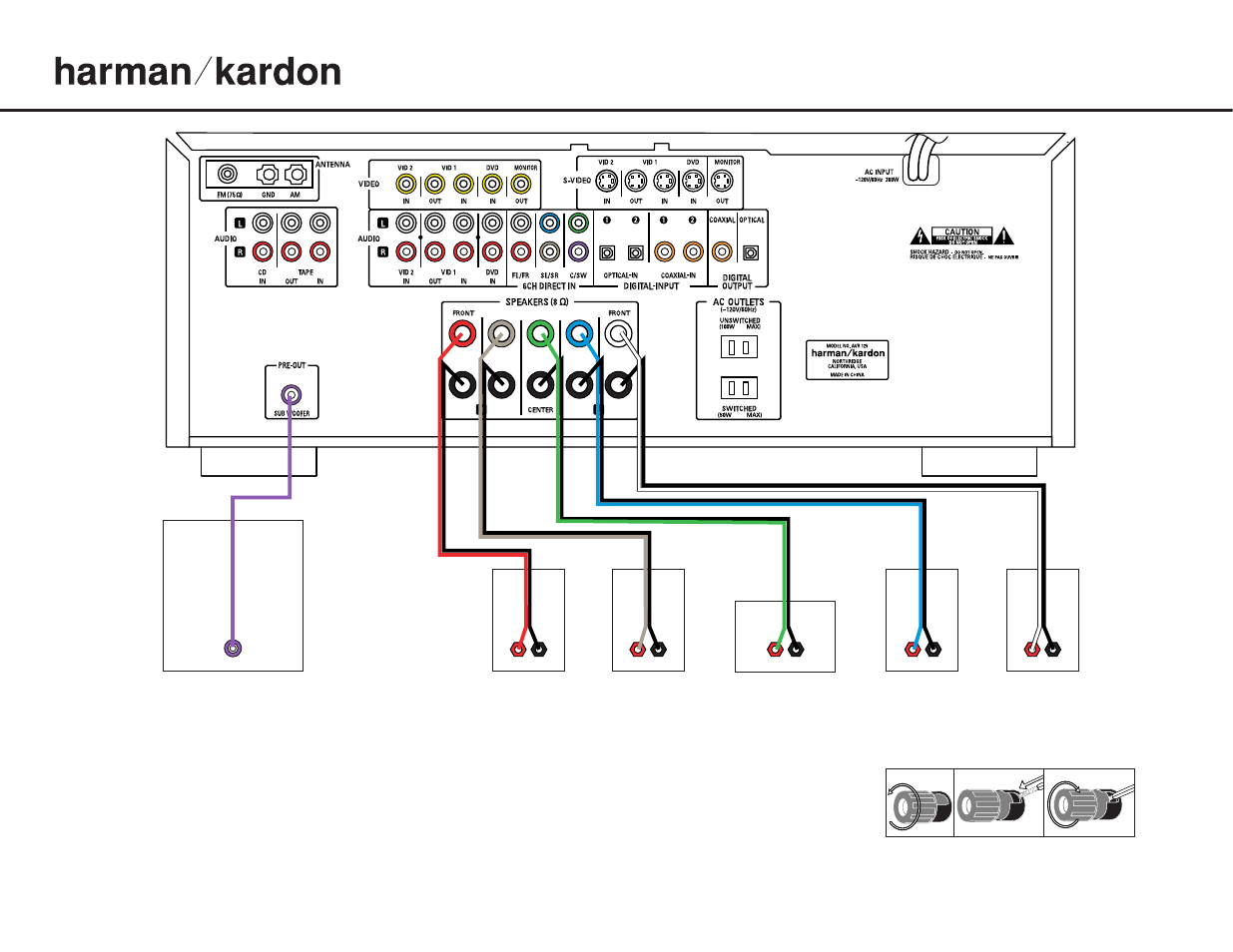

Figure 2 – Speaker Connections
Step 2. Connect the speakers to the receiver: red (+)
on speaker to colored (+) on receiver and
black (–) to black (–). (See page 14.)
Step 3. Connect the Subwoofer Pre-Out jack to
the Line-In jack on your subwoofer (see
page 14). Adjust the settings on the
subwoofer as needed.
Figure 3 – How to Use the Binding-Post
Speaker Terminal
SURR SURR
, 1A
, 0.5A
SURROUND
RIGHT SPEAKER
SURROUND
LEFT SPEAKER
FRONT RIGHT
SPEAKER
FRONT LEFT
SPEAKER CENTER SPEAKER SUBWOOFER
+
_
LINE IN/SUB/LFE +
_
+
_
+
_
+
_
