Hamilton Electronics MICROLAB 8534-01 User Manual
Page 29
MICROLAB
®
Carousel User Guide (June 2003)
27

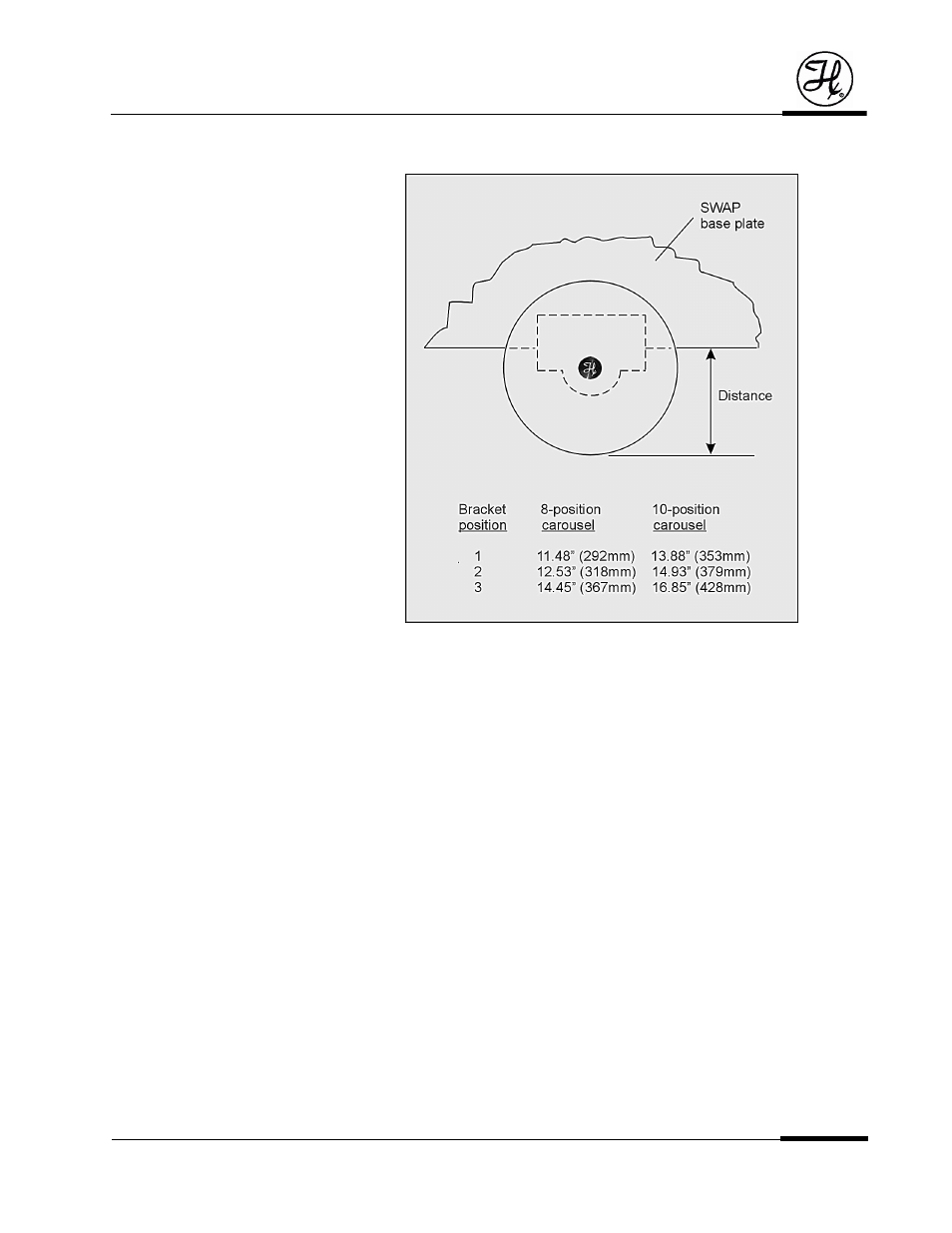

Figure 24:
Overhang distance of platters from SWAP
base plate (refer to figure 5 for bracket positions)
