MICROLAB
®
Carousel User Guide (June 2003)
9

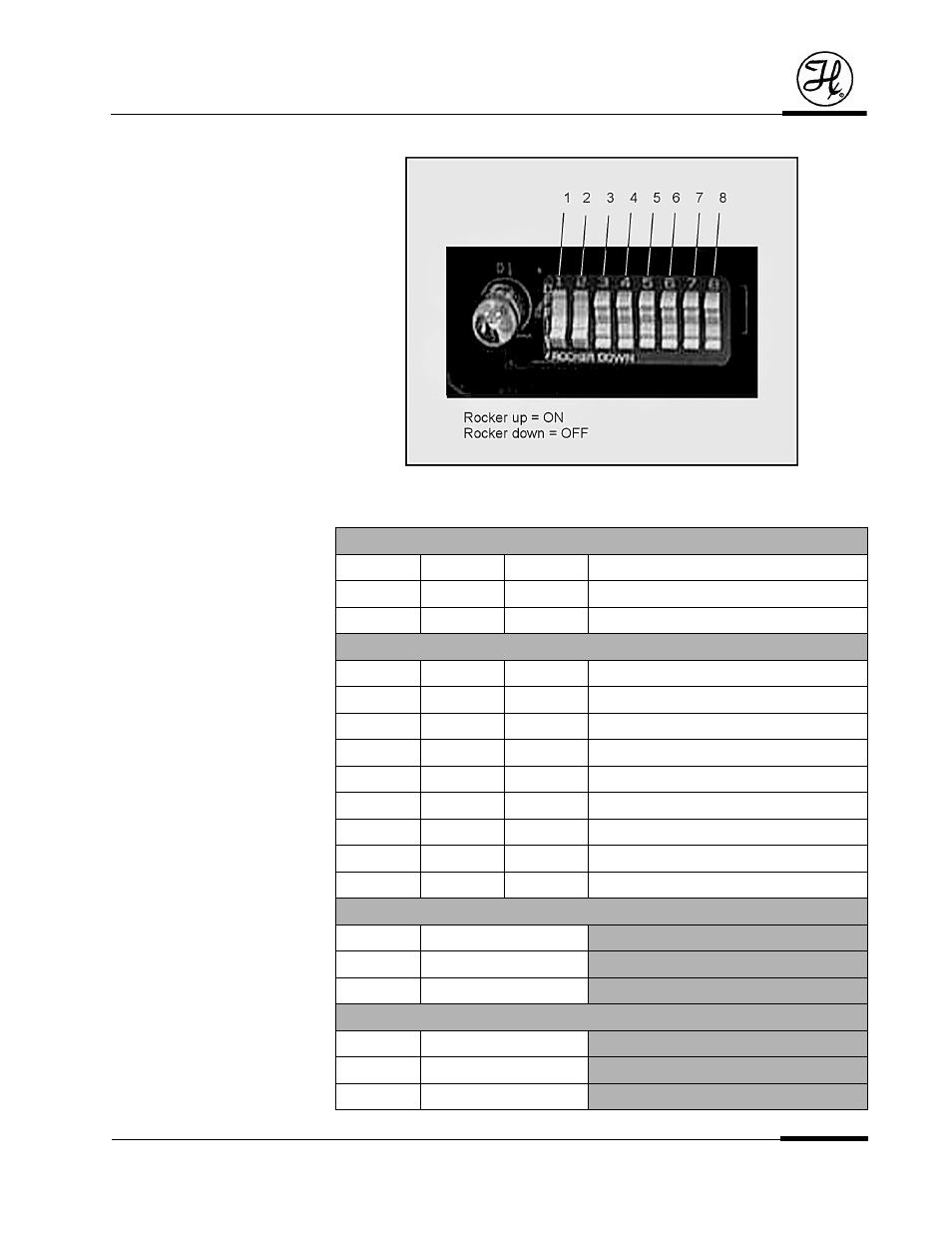

Figure 8:
DIP switch (Set for 10 position universal platter)
Table 1.
DIP switch selection
PLATTER SELECT
SW1-1
SW1-2
SW1-3
DESCRIPTION
OFF
OFF
OFF
8 POSITION PORTRAIT (DEFAULT)
ON
ON
OFF
10 POSITION UNIVERSAL
UNIT IDENTIFICATION
SW1-4
SW1-5
SW1-6
DESCRIPTION
OFF
OFF
OFF
UNIT 1 (DEFAULT)
ON
OFF
OFF
UNIT 2
OFF
ON
OFF
UNIT 3
ON
ON
OFF
UNIT 4
OFF
OFF
ON
UNIT 5
ON
OFF
ON
UNIT 6
OFF
ON
ON
UNIT 7
ON
ON
ON
UNIT 8
SPARE
SW1-7
DESCRIPTION
OFF
(DEFAULT)
ON
TBD
FORCED DOWNLOAD
SW1-8
DESCRIPTION
OFF
(DEFAULT)
ON
FORCED DOWNLOAD
