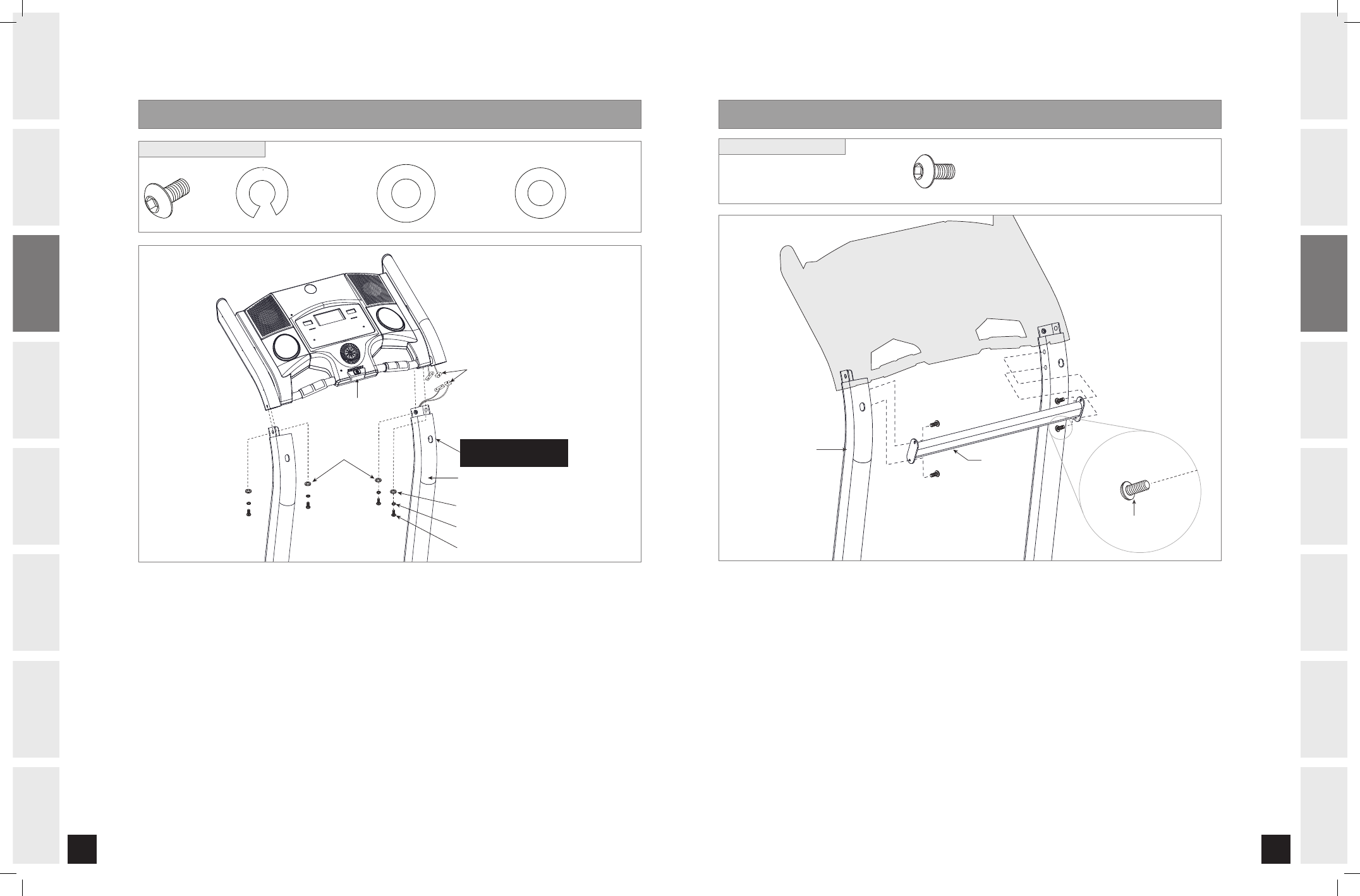

ASSEMBLY STEP 3
FLAT WASHER (I)
CONSOLE MAST
CONSOLE CABLES
SPRING WASHER (H)
BOLT (G)
CONSOLE
DO NOT ATTACH
THIS SIDE UNTIL STEP 3-D
ARC WASHER (J)
HARDWARE BAG 3 CONTENTS :
A Open HARDWARE BAG 3.
B With running deck in lowered position, place CONSOLE on the console masts. Align the
brackets that are underneath the console with the top holes of the console masts.
C To assemble the CONSOLE to the LEFT CONSOLE MAST, insert 1 BOLT (G), 1 SPRING
WASHER (H) and 1 FLAT WASHER (I) into the side hole and insert 1 BOLT (G), 1 SPRING
WASHER (H) and 1 ARC WASHER (J) into the back hole in the LEFT CONSOLE MAST
and lightly tighten.
D Gently lift RIGHT side of the CONSOLE to connect the CONSOLE CABLES. Carefully tuck
wires in mast to avoid damage. NOTE: Do not pinch console cable or grip pulse wires.
E Repeat STEP C above to assemble the RIGHT CONSOLE MAST to the CONSOLE.
F Leave console bolts loose until after STEP is completed.
ASSEMBLY STEP
BOLT (K)
SUPPORT BAR
CONSOLE MAST
BOLT (K)
15 mm
Qty: 4
HARDWARE BAG CONTENTS :
Open HARDWARE BAG .
Align SUPPORT BAR with holes in CONSOLE MASTS.
Insert BOLTS (K) into all 4 holes of the SUPPORT BAR.
NOTE: Look into holes in the right mast before inserting bolts to avoid pinching cables.
Tighten all console bolts (Step 3) and support bar bolts (Step 4) completely.
A.
B.
C.
D.
FLAT WASHER (I)
19 mm
Qty: 2 SPRING WASHER (H)
15 mm
Qty: 4 BOLT (G)
15 mm
Qty: 4 ARC WASHER (J)
17 mm
Qty: 2
