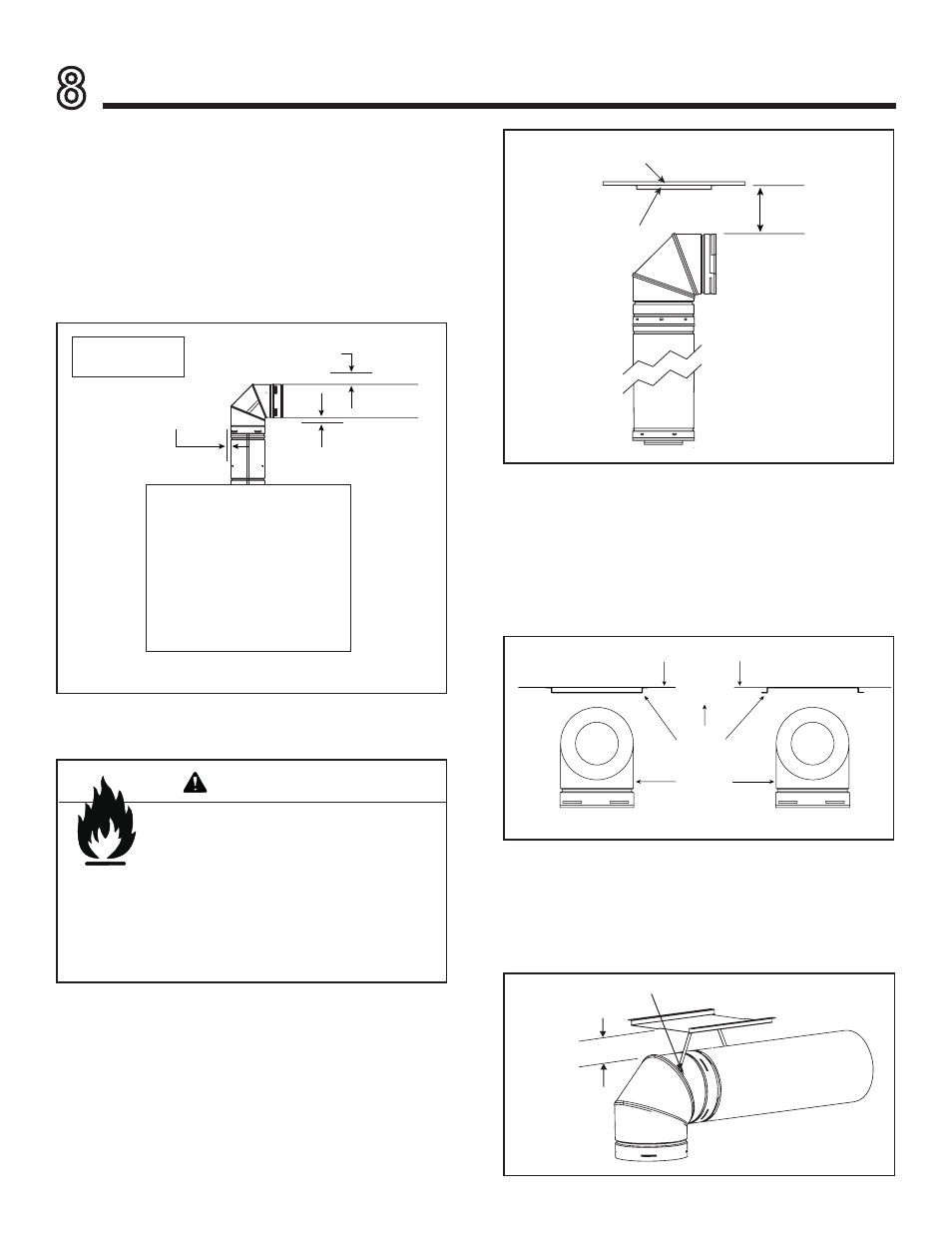

A. Pipe Clearances to Combustibles
WARNING! Risk of Fire! Maintain air space clearance to
vent.
DO NOT pack insulation or other combustibles:
• Between ceiling fi restops
• Between wall shield fi restops
• Around vent system
Failure to keep insulation or other material away from
vent pipe may cause over heating and fi re.
8
Vent Clearances and Framing
COMBUSTIBLE SURFACE
CORRECT
INCORRECT
DIRECTION
UP
HEAT SHIELD
90º ELBOW
Fire Risk.
Installation of this appliance may require the
use of heat shield 385-290 above the fi rst 90º
elbow in the venting system.
Heat Shield Above First 90
0
Elbow
Figure 8.2
Figure 8.3
Fasten the shield in place using the four pilot holes pro-
vided in the part.
• Position the shield so the longest dimension (13 1/2
inch) is placed in same direction the elbow is pointing.
• Center the shield directly above the elbow with a 1/2
inch air space between shield and combustible surface
(see Figure 8.3).
• Heat shield required if vertical distance between top of
horizontal elbow and any combustible surface above
elbow is less than 4 inches.
• Heat shield not required if distance is more than 4
inches.
HEAT
SHIELD
3 IN. MIN.
(76 mm)
COMBUSTIBLE
SURFACE
Figure 8.1 Pipe Clearances
1 in. CLEARANCE
AROUND VERTICAL
SECTIONS
3 in. TOP
CLEARANCE
1 in. SIDE AND
BOTTOM CLEARANCE
Note: Slope not
required.
WARNING
• Attach elbow heat shield to the exhaust pipe if combusti-
ble materials are not present at install (see Figure 8.4).
• Cut the tabs as shown and bend down. Using the screws
found in the manual bag secure the heat shield to the pipe
maintaining 3 to 4 inches between the pipe and shield.
SCREW
3 in.
(76 mm)
Figure 8.4
