Repair parts, Gear case – Husqvarna 55B21HV User Manual
Page 19
19

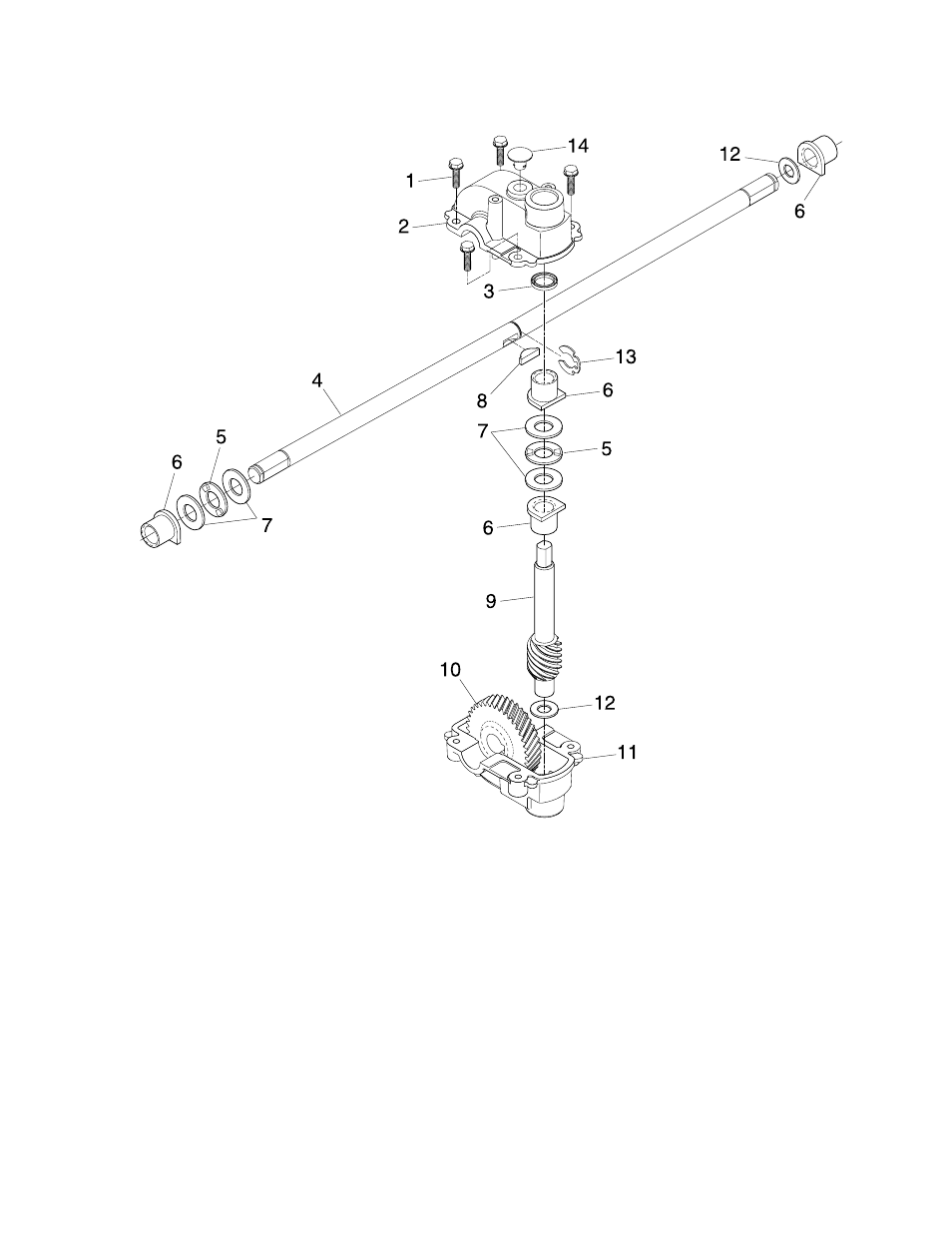

ROTARY LAWN MOWER - - MODEL NUMBER 55B21HV (55B21HVA)
PRODUCT NUMBER 954 22 32-27
GEAR CASE ASSEMBLY - - PART NUMBER 532 18 36-99
KEY PART
NO. NO.
DESCRIPTION
1 817 54 10-11
Screw, Tapping #10-24 x .668
2 532 16 06-72
Gear Case, Upper
3 532 05 70-72
Seal
4 532 18 39-08
Drive Shaft
5 532 16 08-18
Bearing, Needle, Thrust
6 532 07 78-81
Bearing
7 532 16 08-17
Washer, Thrust
8 532 85 08-48
Key, Hi-pro
9 532 18 41-34
Shaft, Worm
10 532 16 06-79
Gear, Helical
11 532 16 06-73
Gear Case, Lower
12 532 05 70-79
Washer, Hardened
13 812 00 00-39
E-Ring
14 532 08 64-47
Plug
- - 532 75 03-69
Grease
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
