Firebrick
Firebrick installation-required
The firebrick is shipped in the ashpan. It will need
to be placed on the brick shelf as shown in Fig. 15. It
can be installed with either face to the fire. Hold the
brick longways and slide it down into the slot on the
shelf. There is a stop at the rear of the shelf to stop the
rearward travel.The brick just sits on the shelf in the
upright position.

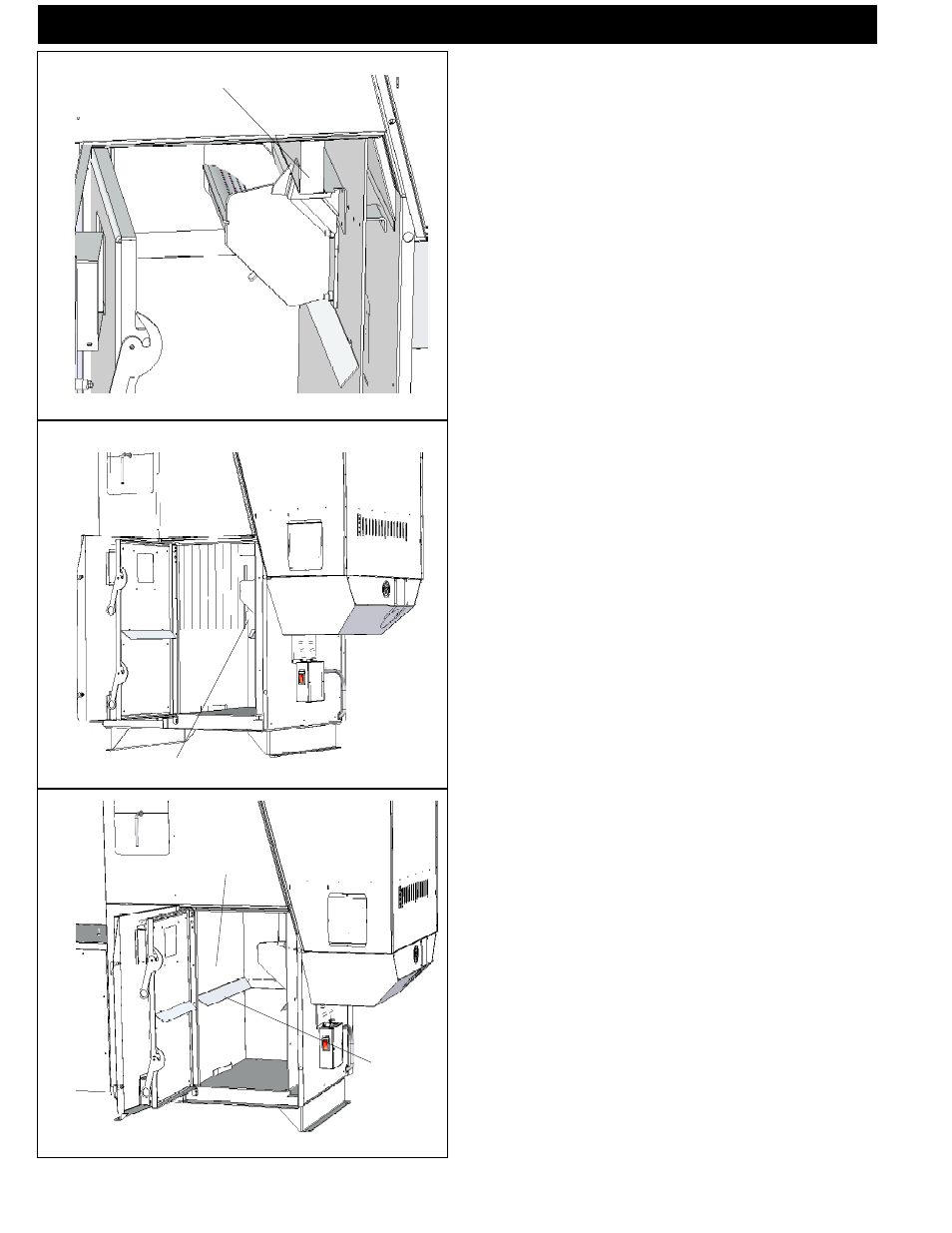

Fig. 15
Fig. 17
Baffle installation
The upper heat exchanger baffle comes shipped
along side the ashpan. Remove the ashpan and the baffle.
This upper baffle needs to be installed before operating
the furnace.
The baffle has a long 45 degree bend on the bot-
tom of the firebox side. See Fig. 17.
The top has a 90 degree bend on the same side to
use as a handle.
On the opposite side there are four hooks that will
support the baffle.
On the front and rear of the firebox walls there are
brackets that these hooks fit into. See Fig. 16
Slide the upper baffle down on to the brackets,
while you hold the baffle against the heat exchanger. You
will notice that the upper baffle will hold the lower baffle
plate into position. See Fig.17.
Note how the upper and lower baffles are held
into position because they will need to be removed
during heat exchanger cleaning.
Fig. 16 Baffle support bracket
Upper heat
exchanger baffle
45 o bend
Assembly
