ZIO ® /ZIO PLUS LCD WALL MODULES
63-2719—03 18
Link Slots on the Wire Sheet
This section describes how parameters may be linked to the
wall module. Refer the user to the Spyder User Guide, form
63-2662, for more specific information on variables and wire
sheet logic.
The S-Bus Wall Module function block can be dropped into
existing applications to replace the Conventional Wall Module
block. You can see an example in Fig. 26. A maximum of four
Zios may be wired on a single Sylk bus, with no more than one
TR70 per bus.
When making links from existing blocks to the wall module
function block input slots, there is no need to break the
existing links from these existing blocks. The new tool allows
for multiple output connections.
When connecting to slots on function blocks which lie on
different wire sheets, remember that you can save time by
using the Link Mark method, a standard Niagara Workbench
linking mechanism.

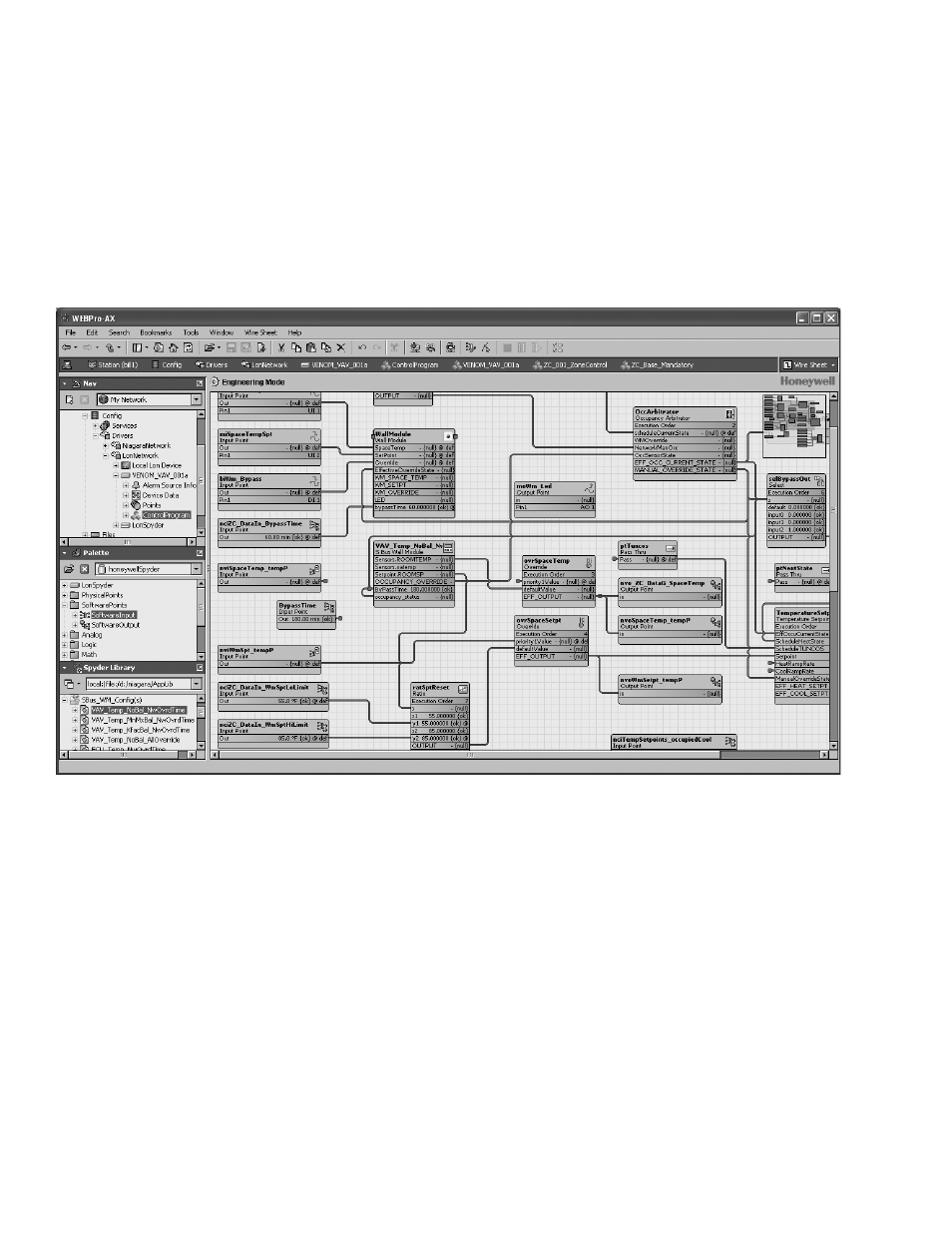

Fig. 26. Example of the S-Bus Wall Module block dropped into a Venom VAV application.
