Combo View

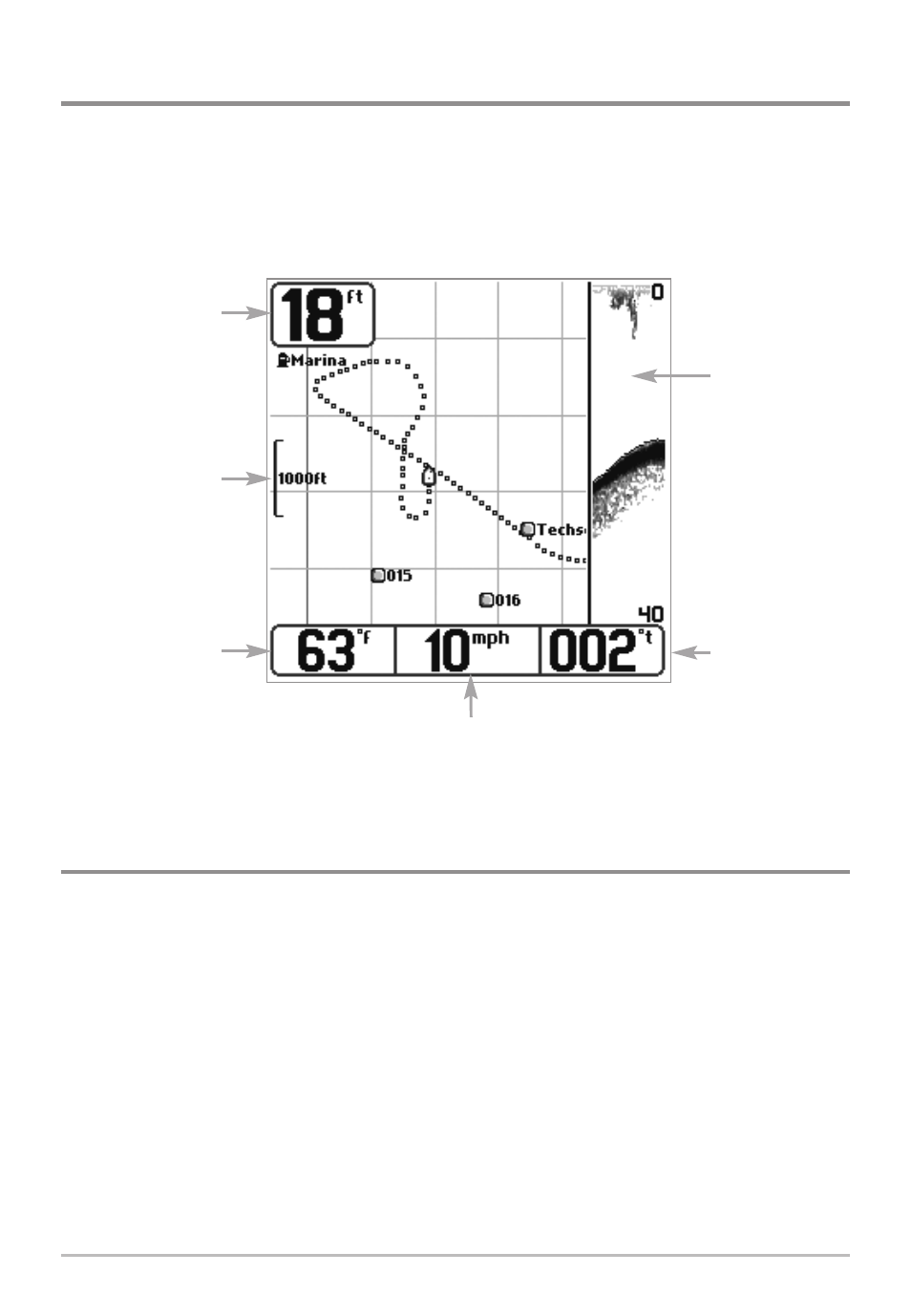

Combo View - This view is displayed as a split screen, with Track View on the left
and Sonar View on the right side of the screen. The width of the sonar window
can be changed.
View Orientation
Both Track and Combo views allow you to choose the orientation of the view.
When North-Up orientation is selected, North is shown at the top of the display.
In other words, objects located to the north of the boat are drawn above the boat.
When Course-Up orientation is selected, the direction of motion of the boat is
shown at the top of the display. In other words, objects ahead of the boat are
drawn above the boat. In both orientations, the view pans automatically, so that
the boat is always centered on the display. When the boat is stationary, it is drawn
as a circle. When the boat is in motion, it takes on a boat shape, pointed in the
direction of motion (always Up in the Course-Up orientation).
Track Scale
Speed of Boat
Water
Surface
Temperature
Bearing of
Boat with
Respect
to North
Sonar
Window
Depth
Combo View
