Your free standing dishwasher can be installed in modern kitchens as follows:
l to stand next to furniture units or other electric household appliances
(Please read the chapter on “Installation” in the instruction manual.)
l
to insert or built-in under the one worktop.
Should it be necessary to remove the top shelf of the dishwasher, proceed as follows:

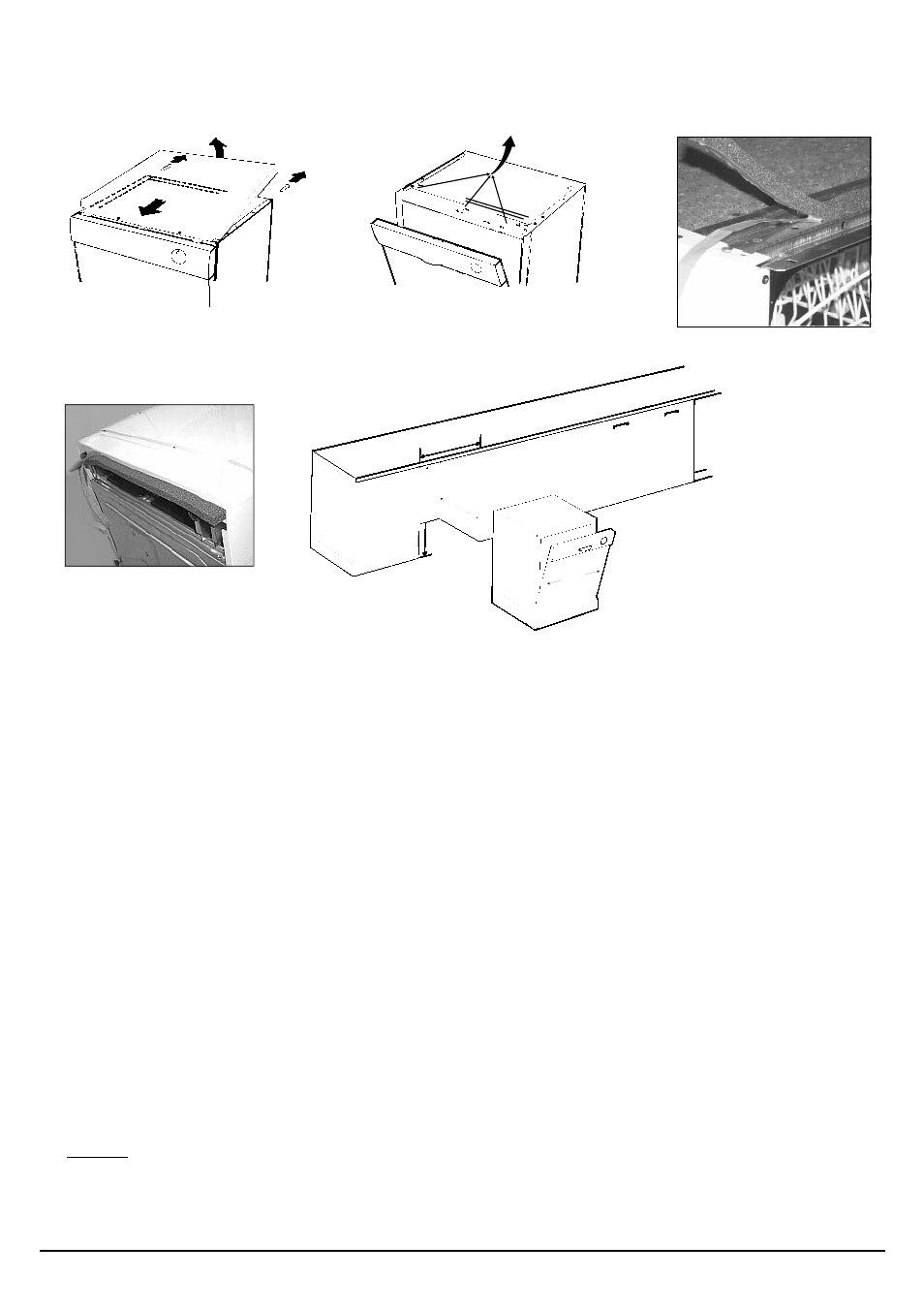

– Unscrew the 2 rear screws and then, with a light push forward, let it slide out and remove it (see fig.1)
– Discard the polystyrene rectangle.
– Open the door and, after unscrewing the fixing screws, remove the 3 plastic plugs used to hook the shelf on (fig. 2)
– Glue on the small soundproofing adhesive spongy strip onto the top crosspiece (photo 3) and, after tilting the appliance, glue
on another one underneath the base (photo 4).
– Straighten up the appliance and adjust the front and back feet by unscrewing them in an anti-clockwise direction to raise the
dishwasher to the required height.
– Insert the appliance underneath the worktop (fig.5), checking that the inlet and outlet pipes do not get bent or squashed (please
read the instructions provided in the “Installation” chapter).
–Open the dishwasher door and glue on the two equal-sized adhesive spongy strips on the front edge of the appliance cabinet.
Begin from the top without leaving out any spaces and make sure the strips adhere all along the length of the edge. A small part
of the spongy strip protruding onto the outside will block any light left between the dishwasher and adjacent cabinets, thus
improving the soundproofing.
Warning:
The dishwasher plug must be within access once the appliance has been built in, in order to allow for maintenance to be carried
out safely.
The structure of your dishwasher makes it impossible to fit it under a hob.
INSTRUCTIONS FOR INSTALLING THE DISHWASHER IN
FULLY-FITTED KITCHENS.
