Hearth and Home Technologies 6000TRS-CE User Manual

Page 22

For Vertical Runs - The flue system must be
supported every 240 cm above the heater flue outlet
by wall brackets.

To install support brackets for vertical runs:

• Attach wall brackets to the flue pipe and secure

the wall bracket to the framing members with nails
or screws.

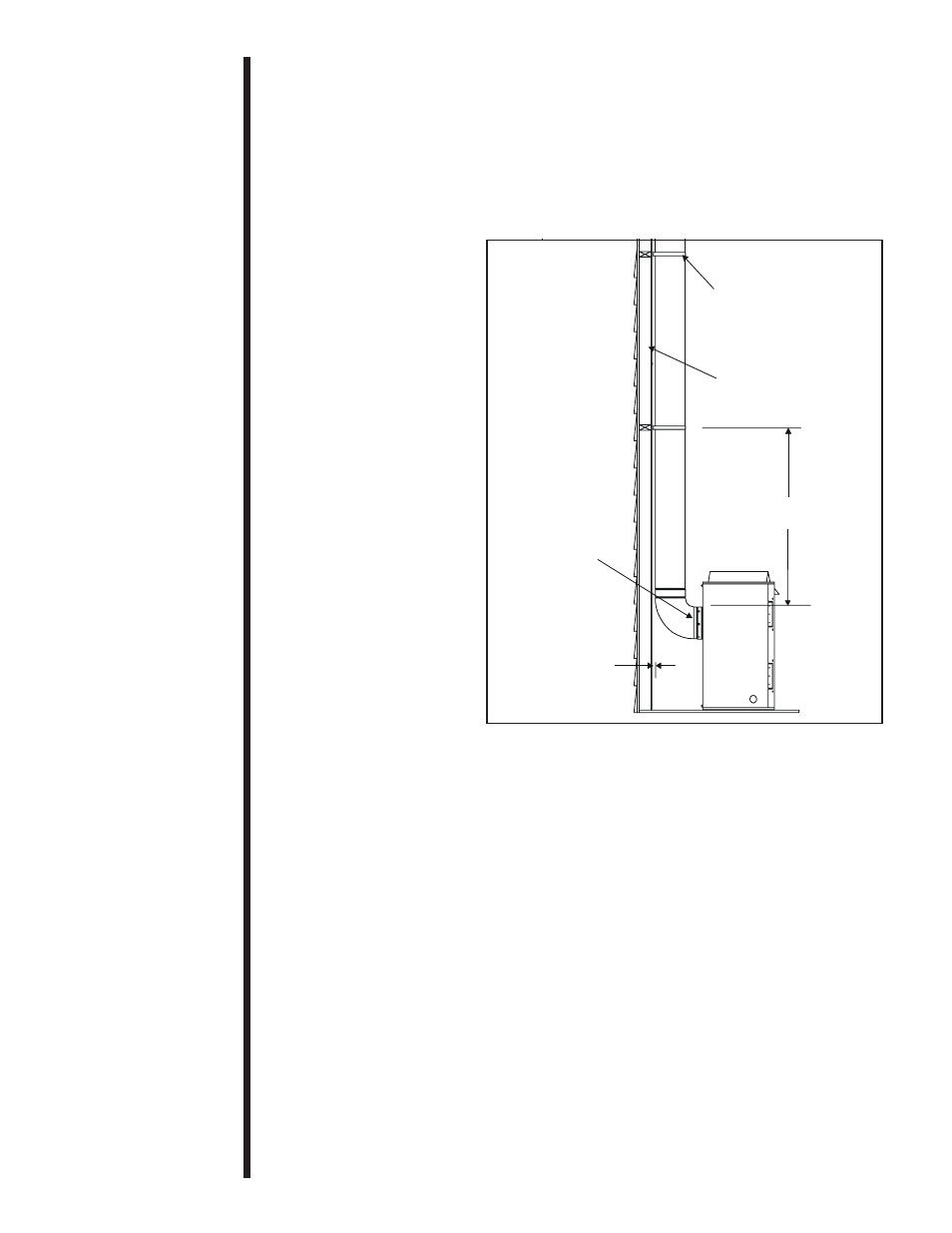

Figure 17. Installing Support Brackets

3. Install Firestops

For Horizontal Runs - Firestops are REQUIRED on
both sides of a combustible wall through which the
flue passes.

To install firestops (heat shield) for horizontal runs that
pass through either interior or exterior walls:

• Cut a 25.4 cm X 30.5 cm hole through the wall.

• Position the firestops on both sides of the hole pre-

viously cut and secure the firestops with nails or
screws.

• The pipe opening of the firestops MUST BE placed

towards the bottom of the firestop.

• Continue the flue run through the firestop.

WALL BRACKET

WALL STUD

243.8 cm

FLUE

OUTLET

2.54 cm MIN.
