MAINTENANCE
Service position for cutting unit
The cutting head can be placed in the service
position to provide easy access for cleaning, repairs
and servicing. In the service position the cutting unit
is raised and locked in the vertical position.

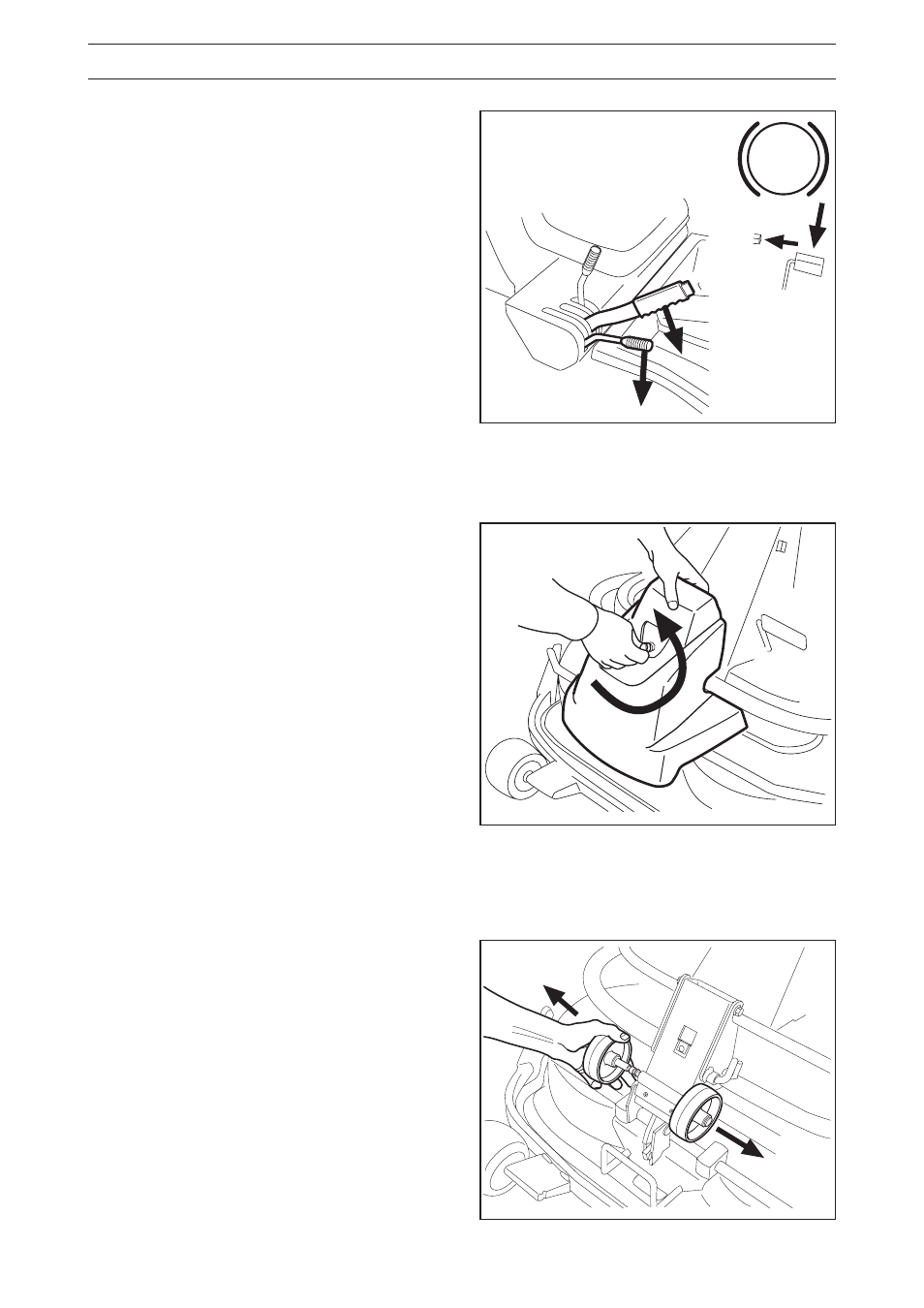

Placing in service position
1. Position the machine on flat ground. Apply the
parking brake (1), see page 8. Adjust the cutting
unit to the lowest cutting height and lower the
cutting unit.
P
1
2. Remove the front hood by removing the pin.
(There are complete instructions on using the
service position inside the front hood).
3. Remove the two support wheels from under the
front hood.
