Hearth & Home Technologies • RC200 Multifunction Remote Control • 2166-392 Rev. C • 1/13

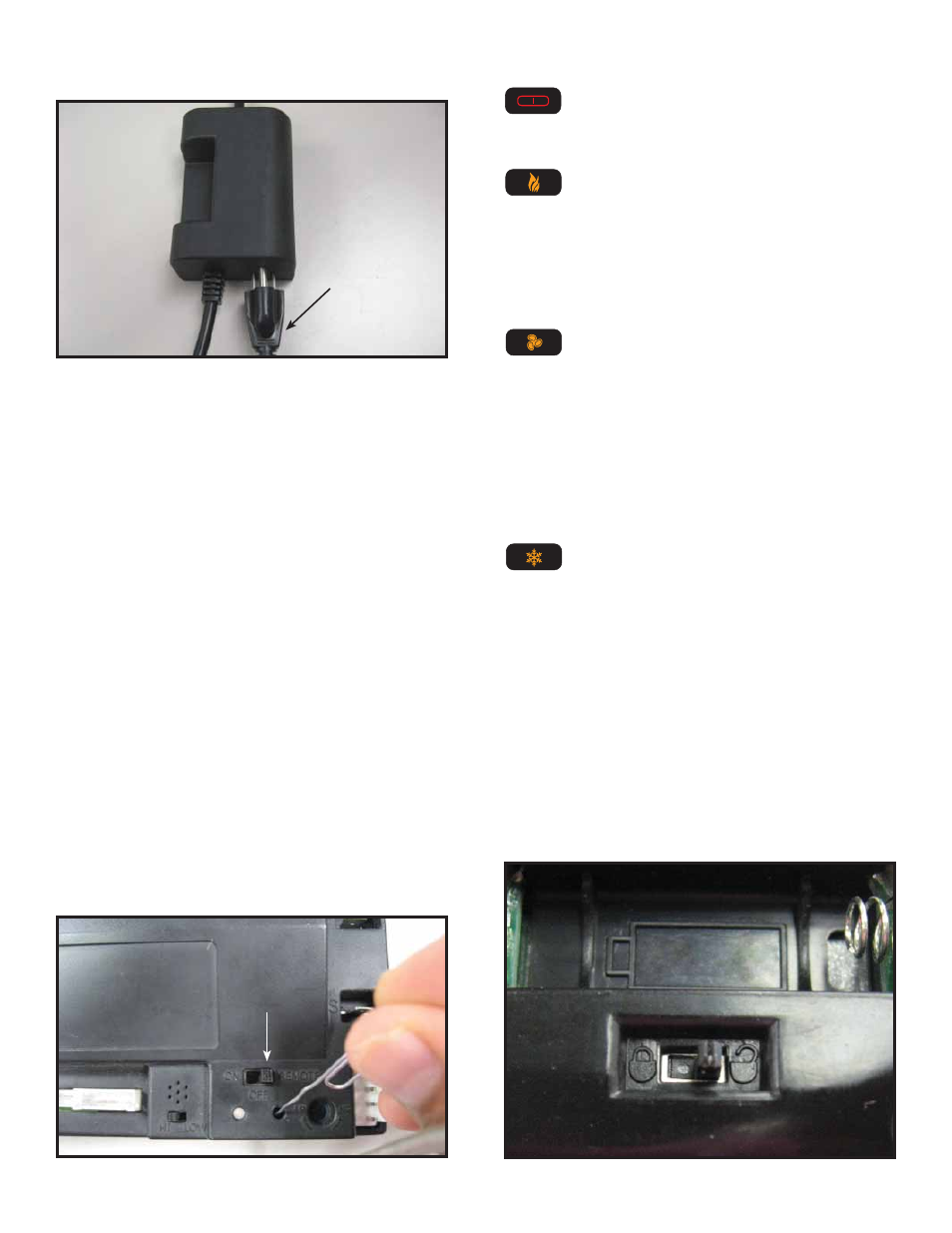

Figure 6. Programming RC200

REMOTE POSITION

Figure 5. Plug Fan into AUX200 Module

Programming the RC200 to the Control Module

CAUTION! Risk of burns! DO NOT program the remote
control to the control module when fi replace is hot.

• Verify the ON/OFF/REMOTE switch is in the REMOTE

position. Green LED light will blink three times and beep
once 5 seconds later when ready. See Figure 6.

• Using a small item (such as a paper clip) press and

release the learn button located near the ON/OFF/
REMOTE switch. See Figure 6.

• Control module will beep once and LED will blink green

for 10 seconds.

• While the LED is blinking, press the power button on

the remote control. A double beep will come out of the
control module to indicate that it has been programmed
successfully.

NOTICE: Up to three remote controls can be programmed
into the control module. Simply press a button on the other
remote controls during the 10 second programming process
to add another remote into the system.

To clear memory in the control module, use a small item
(such as a paper clip) to press and release the LEARN
button. Control module will beep once and LED will blink
green for 10 seconds DO NOT press any buttons on the
remote during the ten seconds that the green LED blinks.
The memory will be cleared.

FAN CORD

• Insert 3 prong plug from AUX200 module into REM/AUX

receptacle of fi replace junction box.

Press the PILOT button to activate or deactivate
the constant pilot.

The control module will beep

once indicating constant pilot has been activat-
ed. A double beep indicates the constant pilot
has been deactivated.

Press the FLAME button to adjust the fl ame
height. The fl ame height can be adjusted to 5
different settings: MAX, HIGH, MEDIUM, LOW,
MIN. Flame height will not be adjustable for fi rst
ten seconds when fi replace is turned on. The
system remembers the previous fl ame height
setting and will automatically adjust to previ-
ous setting after 10 seconds.

Press the FAN button to adjust the fan speed.
The FAN speed can be adjusted to 4 different
settings: HIGH, MED, LOW and OFF. The fan
has a timer built into the control module. After
the fi replace is turned ON the timer will wait for
3 minutes before turning on the fan. In addition,
the fan will remain on for 12 minutes after the
fi replace has been turned OFF. Whenever the
fan is turned ON, the FAN will start up on the
high setting for 10 seconds before adjusting to
the previous user setting.

Function Buttons

Press the POWER button to turn the fi replace
ON and OFF. The fi replace will fi rst ignite the pi-
lot. Once the pilot fl ame is established the main
burner will be lit.

Setting the Child Lock

• Remove battery cover from the back of the remote by

sliding it down. Slide the child lock switch to enable or
disable the child lock feature. See Figure 7.

NOTICE: No functions will be usable until child lock feature
is disabled.

Figure 7. Child Lock Switch

NOTICE: Whenever the fi replace is cycled from OFF to
ON, the main burner will light on high for 10 seconds before
returning to the previous user setting.
