Hearth & Home Technologies • RC200 Multifunction Remote Control • 2166-392 Rev. C • 1/13 2

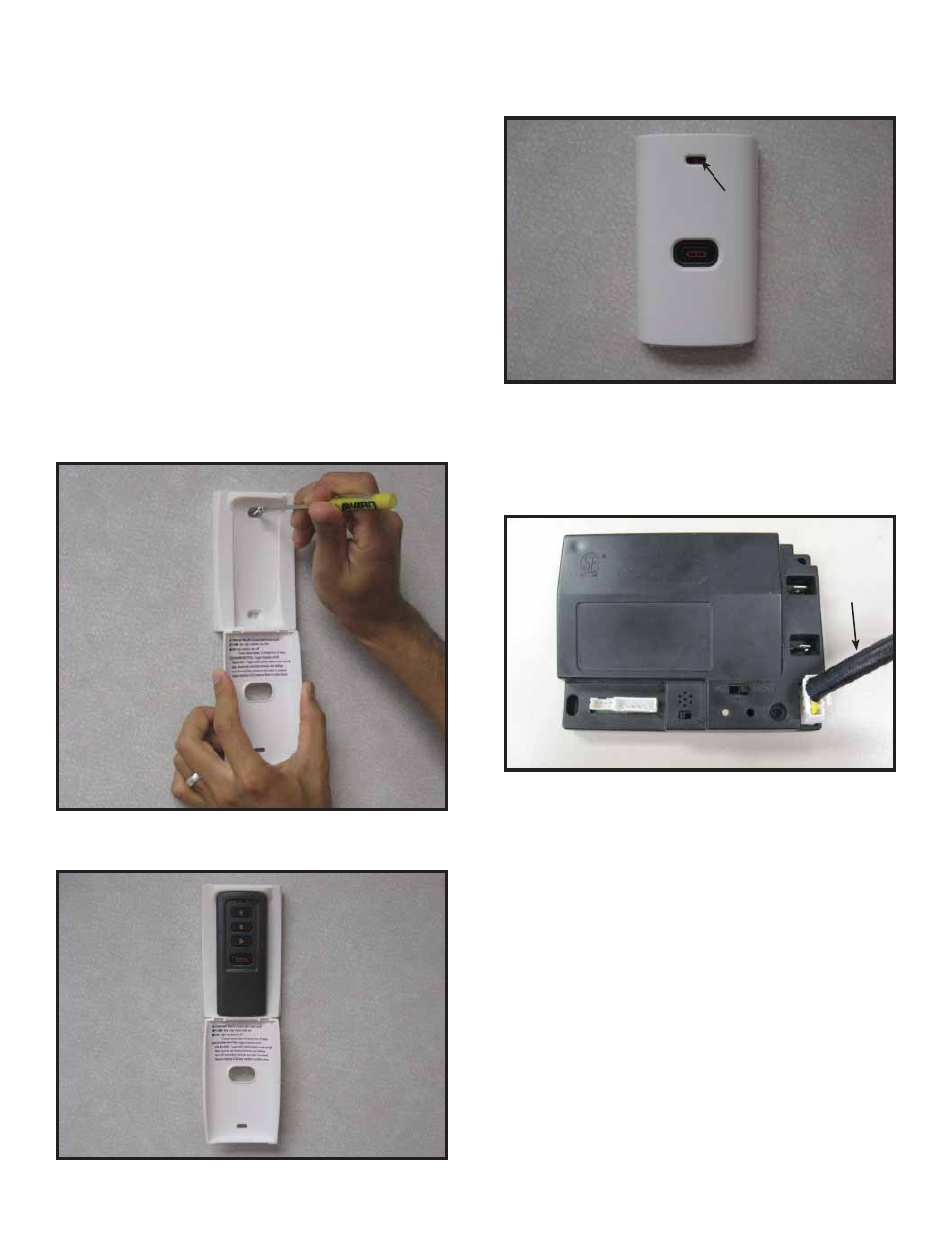

Figure 3. Mounting Remote Control Housing
5. Close the housing door and press the power button.
The red light illuminates if the battery was properly in-
stalled. See Figure 3.
Fan Installation
• Insert the 3 prong plug from the fan into the receptacle
located in the AUX200 module. See Figure 5.
Figure 4. AUX 200 module installation
RED LED RED LED
AUX200 AUX200
CABLE CABLE
AUX200 Module Installation
• Control Module should be set in the OFF position before
any components are installed.
• Insert the 4 hole harness from the AUX200 module into
the 4 pin plug on the control module. See Figure 4.
Figure 2. Remote in Housing
Installation of Remote Control Housing
CAUTION! Risk of Fire! DO NOT install damaged or
modifi ed components
. Warranty will be voided if damaged
or modifi ed components are installed.
Kit components: One remote control, two #6 screws, two
wall anchors, one A23 battery and one AUX200 module (if
purchased retail).
1. Remove remote control components from packaging.
2. Remove battery cover from the back of the remote by
sliding it down and install A23 battery.
To prevent unintended operation when not using your fi re-
place for an extended period of time (summer months,
vacation, trips, etc):
• Remove battery from remote control.
• Unplug switching adapter and remove back-up batteries.
3. Secure the remote control housing on a fl at wall sur-
face using the two screws and wall anchors provided.
See Figure 1.
Figure 1. Mounting Remote Control Housing
4. Place remote control inside housing. See Figure 2.
