Dolphin Terminal Well Place the Dolphin in the well to communicate with a host device and/or to charge the Dolphin’s battery.
LEDs There are two LEDs on the front panels of the Mobile IntelliBase and Mobile Base charging/communication cradles.
Dock LED Turns solid green when the Dolphin terminal is properly seated into the Dolphin Mobile IntelliBase.
COMM LED
Indicates the status of data transfer between the Host Device and the Dolphin terminal as described
below:

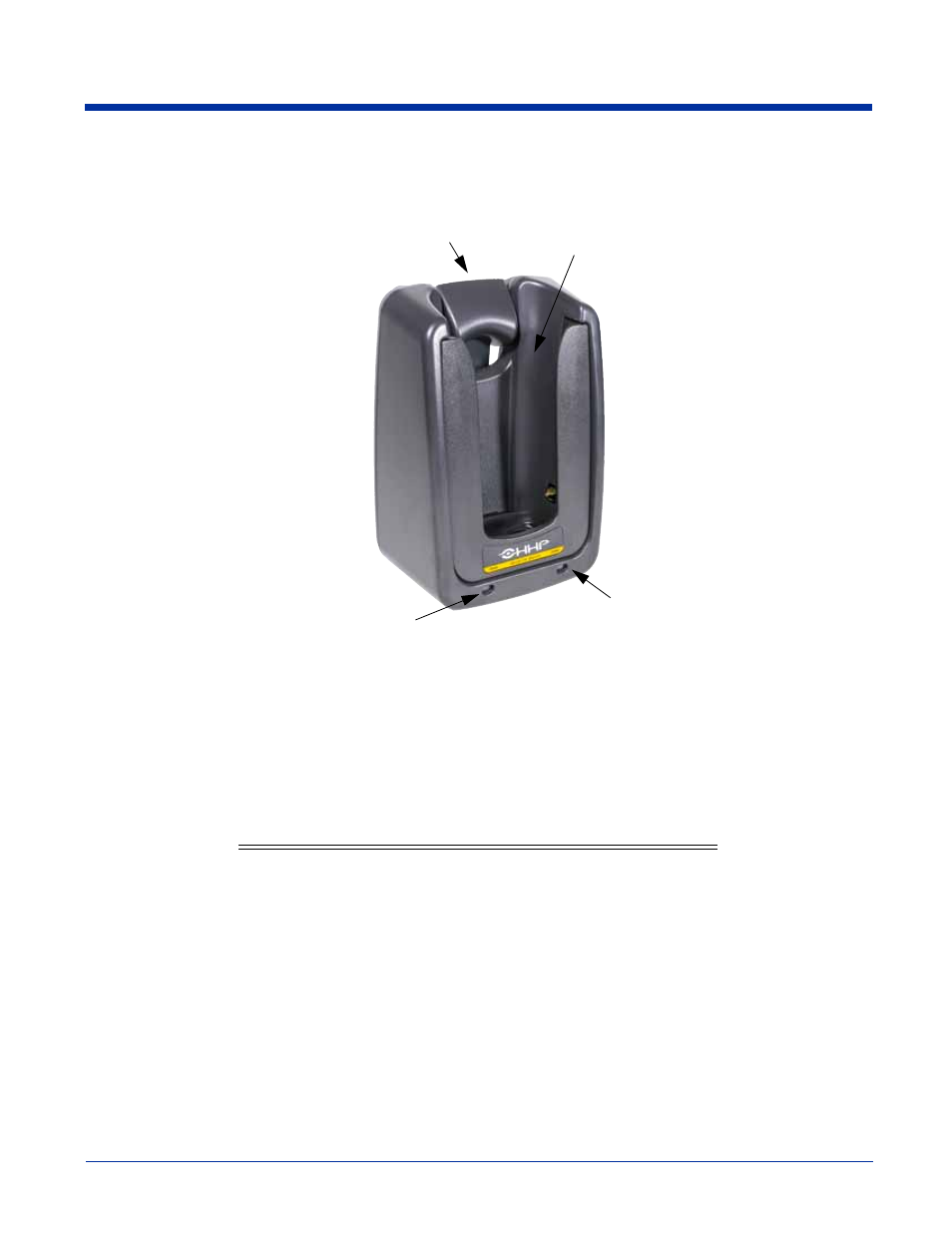

Front Panel of Dolphin Mobile Base
Comm LED
Description
Red LED
Data is being sent from the Host Device to the
Dolphin Mobile IntelliBase/Mobile Base.
Green LED
Data is being sent from the Dolphin Mobile
IntelliBase/Mobile Base to the Host Device.
Orange LED
Data is being sent at high data rates.
Terminal
Well
DOCK LED
COMM
LED
Spring-Arm Assembly
