Back Panel
HomeBase/IntelliBase
There is a 5V DC power supply connector and an RS-232 connector:
Power supply connector Use this connector to attach a power supply to the HomeBase. The power supply provides 5V DC
input for communications and battery charging.
RS-232 Communications Port
Use a standard serial cable to connect this port to a host RS-232 device.
Green LED
Data is being sent from the IntelliBase+ to the
Host Device.
Orange LED
Data is being sent at high data rates.

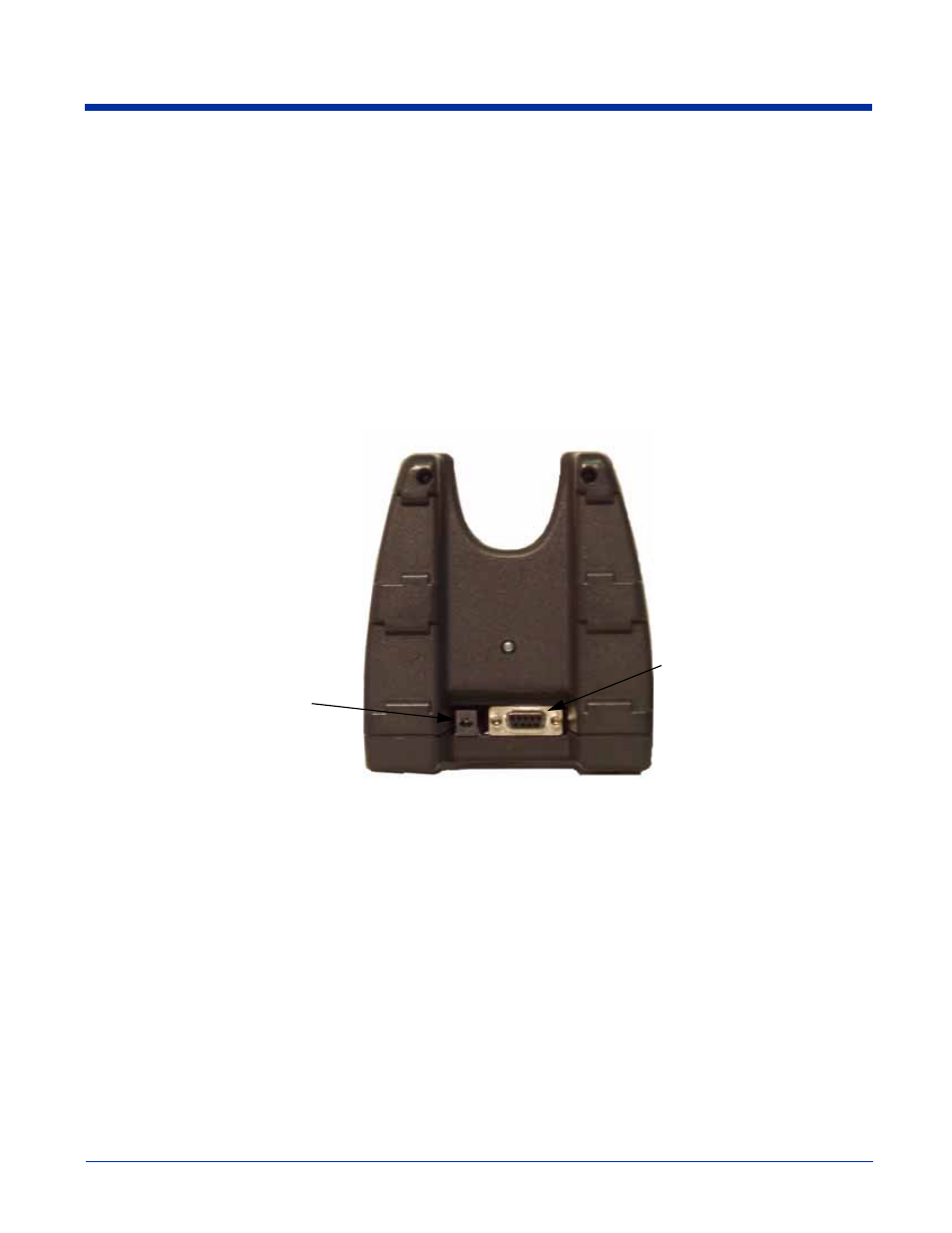

Rear View of Dolphin HomeBase/IntelliBase
Power Supply
Connector
RS-232
Connector
