33
Slope Downward
(1/4 in. per foot
minimum)
Turn-down
Drip Edge
Chase
2 in. (51 mm) Collar
on Chase Top
.018 (26 ga) min.
Galvanized
Chase Top

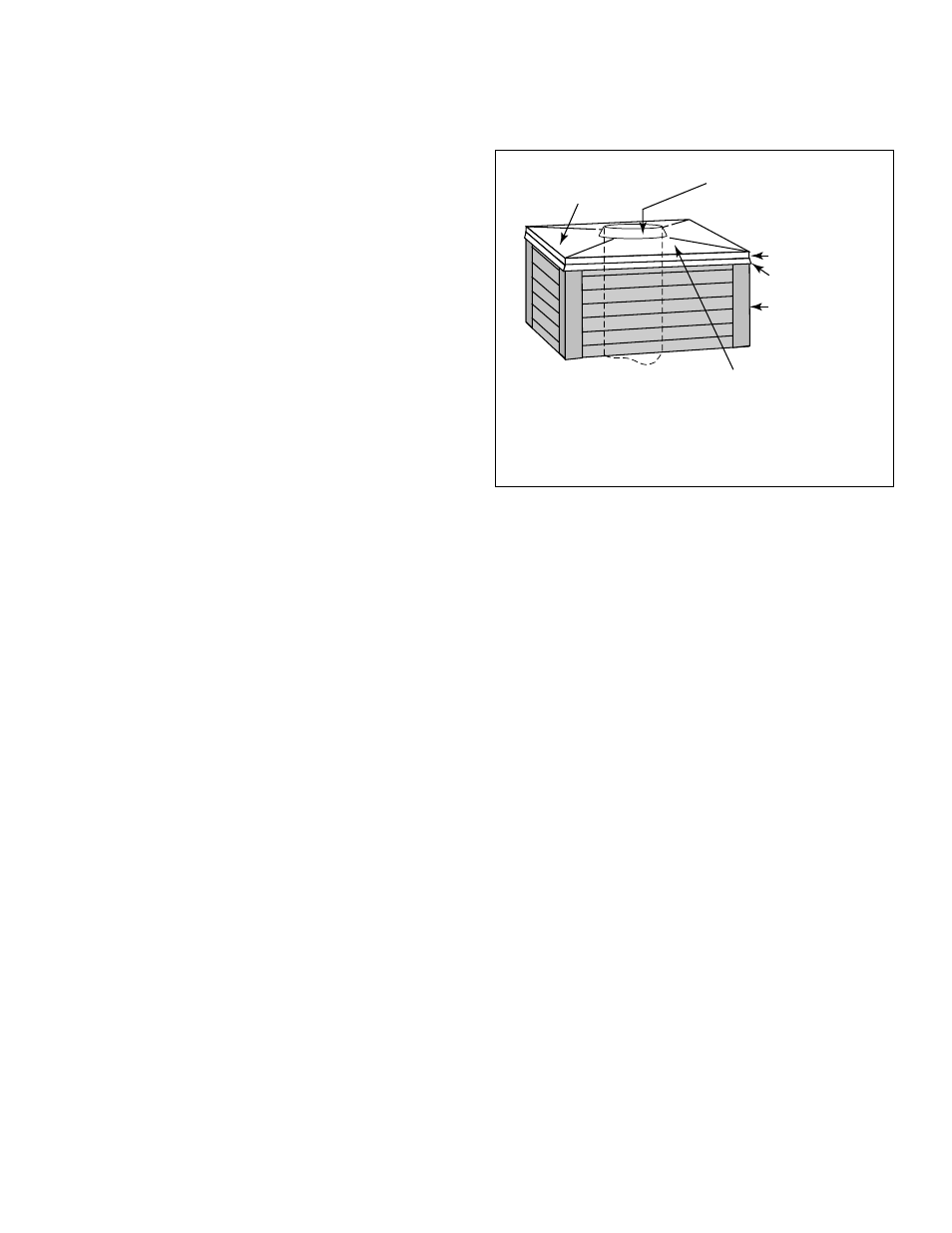

Figure 9.3 Chase Top Construction
B. Install Fireplace & Chimney
Install as per Sections 7 and 8.
Heat & Glo • EM-415, EM-485 • 33056 • Rev W • 10/08
C. Install Chase Top
• You MUST use a chase top in a chase installation. Chase
tops are available from your Heat & Glo dealer or may
be fi eld constructed.
• Include a turndown and drip edge to prevent water from
seeping into the chase.
• Include a 2 in. (51 mm) soldered, welded or spun collar
around pipe opening to keep water out.
• Provide a 1/8 in. (3 mm) gap around the fl ue pipe.
• Slope the chase top downward away from the
opening.
WARNING! DO NOT caulk the pipe to the chase top
collar. Restricting air fl ow around chimney may cause
fi re.
• Caulk all seams to prevent leaks.
• Refer to Figure 9.3.
