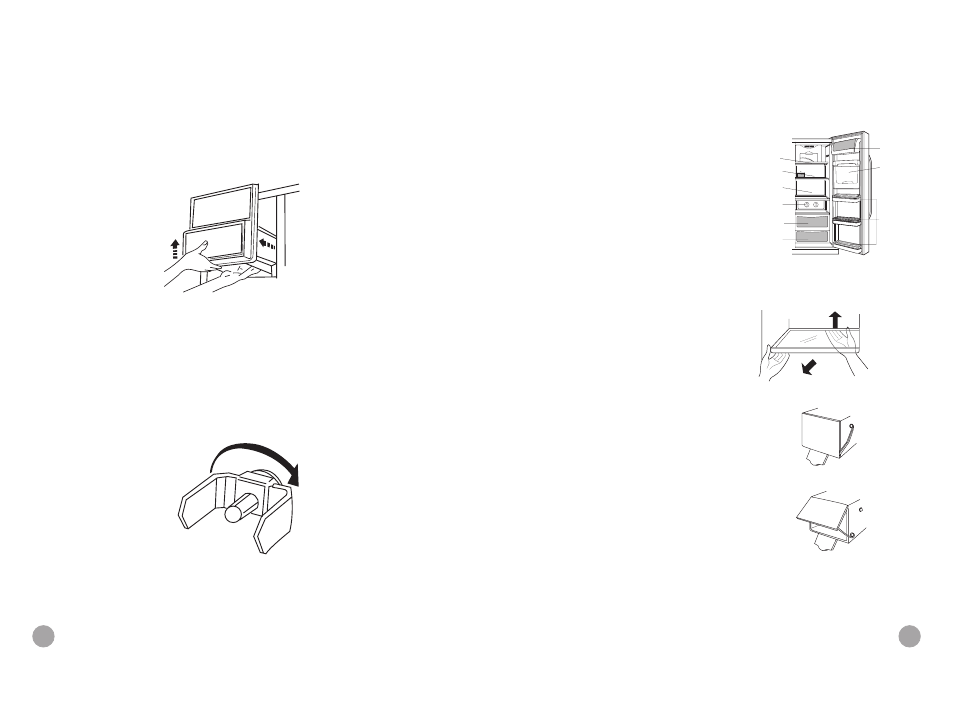

background image

11

Refrigerator compartment

Mode 1

Mode 2

Caution: Ensure that a correct mode has been set before loading the food.

Vegetables and fruits will freeze if mode 2 is set.

Note: HRF-669FF/A series no chiller compartment exit

1

2

3

4

5

6

7

8

Chiller/Crisper

Storage areas

As cold air circulates inside the refrigerator, temperature

differences exist inside the storage compartments. Area

6 is the coldest. Different foods should be placed in

different areas according to their properties.

1. Butter, cheese and canned food

2. Canned beverage and beer

3. Beverages and bottled food

4. Pickled food or canned pickled food

5. Meat and snacks

6. Wheaten food, canned food, milk and bean curd

7. Cooked meat and sausages

8. Fruit, vegetables and salad

Chiller compartment: Butter, fish and sliced meat

Crisper: Fruit, vegetable and salad

Dismounting the crisper cover

Lift

the shelf by the inner side and then move

the

shelf out of the compartment.

Option of chiller and crisper compartment

With lower temperature than that in the crisper, the chiller

compartment is used for short period storage of meat.

The air vent opened at the rear side of the food container

on the bottom in the refrigerator compartment can be

adjusted for two operation modes as shown in the figure.

Mode 1 (handle at position

) for crisper.

Mode 2 (handle at position

) for chiller compartment.

When switching the modes, remove the container from

the refrigerator compartment and manually adjust the

handle (as shown in the figure) for desired mode.

Dismounting and installing the cubed ice tray

22

Dismounting the cubed ice tray

Pinch the cubed ice tray at the center and remove it from the shelf.

Replacing the cubed ice tray

Slide the cubed ice try to the grooves by the two sides of inner liner until the clips fit to position.

If the cubed ice tray cannot fit the position properly, remove the cubed ice tray and turn the holder structure by

90

°„, then replace the cubed ice tray again until the clips fit to position.

Holder

Rotation
