Tilt upward

10

When dismounting

When installing

Lower and lock

Insert to top hook

Lift and pull out

The refrigerator is for short-term food

storage of daily consumption.

Although the temperature in most areas in the

refrigeration compartment can be regulated between

2

o

C and 10

o

C, extended periods of food storage is not

recommended. Refrigerator should only be used for

short-term storage.

Adjustable cantilever shelves

C a n t i l e v e r f o o d s h e l v e s c a n b e a d j u s t e d t o

accommodate food in different sizes.

When adjusting height of food shelves, remove the

shelf. Dismount the shelf pin, tilt the shelf, then pull to

remove it. When installing the shelf, ensure that the

inner side of the shelf is settled to the groove. Lower

the outer side of the shelf to the position in the groove.

Replacing the lower lamp in refrigerator

compartment

Lamp: 220-240V~/25W

Lamp holder: E14 (lamps exceeding 25W must not be

used)

When replacing the lamp,

* Unplug the appliance.

* Hold up

and pull out

the lampshade.

* Rotate the lamp anticlockwise until the lamp is

released. A lamp with the same specifications should

be used for replacement.

* Install back the lampshade.

Replacing the upper lamp in refrigerator

compartment

Lamp: 220-240V~/25W

Lamp holder: E27 (HRF-689FF/A series)

E14(HRF-669FF/A series)

Lamp exceedly 25w must not be used

When replacing the lamp,

* Unplug the appliance.

* Unscrew the lampshade.

* Hold up

= and pull out the lampshade.

* Rotate the lamp anticlockwise until the lamp is

released. A lamp with the same specifications should

be used for replacement.

* Install back the lampshade.

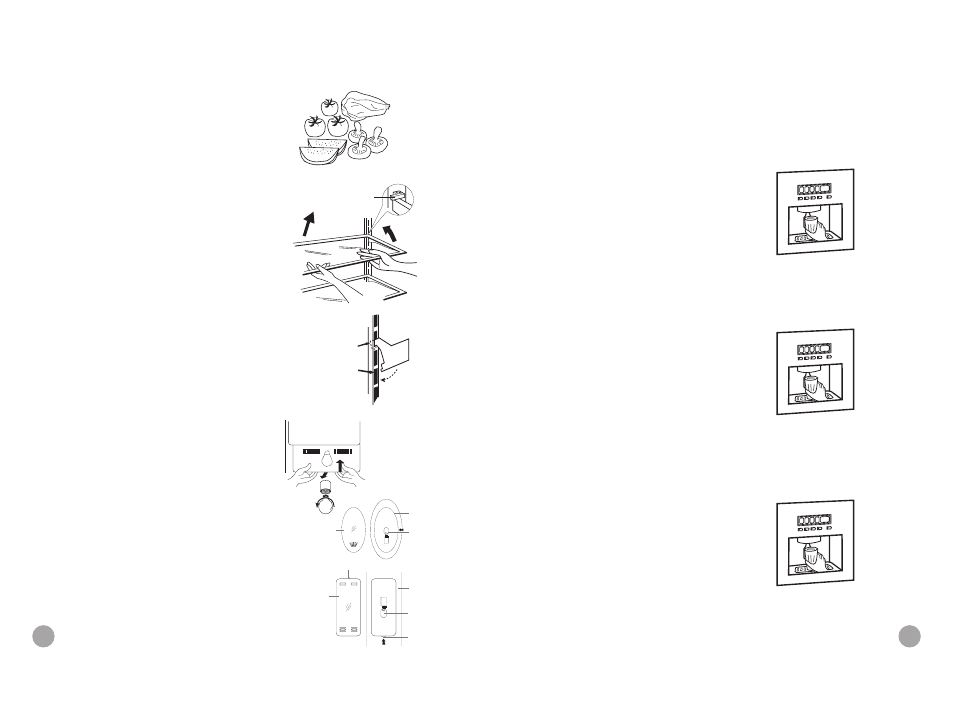

Refrigerator compartment

Shelf fixing pin

Dispenser operation

Opt for crushed ice, cool water or cubed ice supply. Press Ice/Water button with the glass as shown in the

figure.

(1) Crushed ice supply

* Press desired option button, the crushed ice indicator

illuminates.

* Slightly push the switch lever and crushed ice will be

supplied.

(2) Cubed ice supply

* Press desired option button, the cubed ice indicator

illuminates.

* Slightly push the switch lever and cubed ices will be

supplied.

(3) Cool water supply

* Press desired option button, the cool water indicator

illuminates.

* Slightly push the switch lever and cubed ices will be

supplied.

23

Lampshade

Lamp holder

Lug

Lamp

Slot

Lampshade

Lamp holder

Lamp
