6 ©2009 Hunter Fan Co. 44830-01 20091209
stand fan
figure 9.

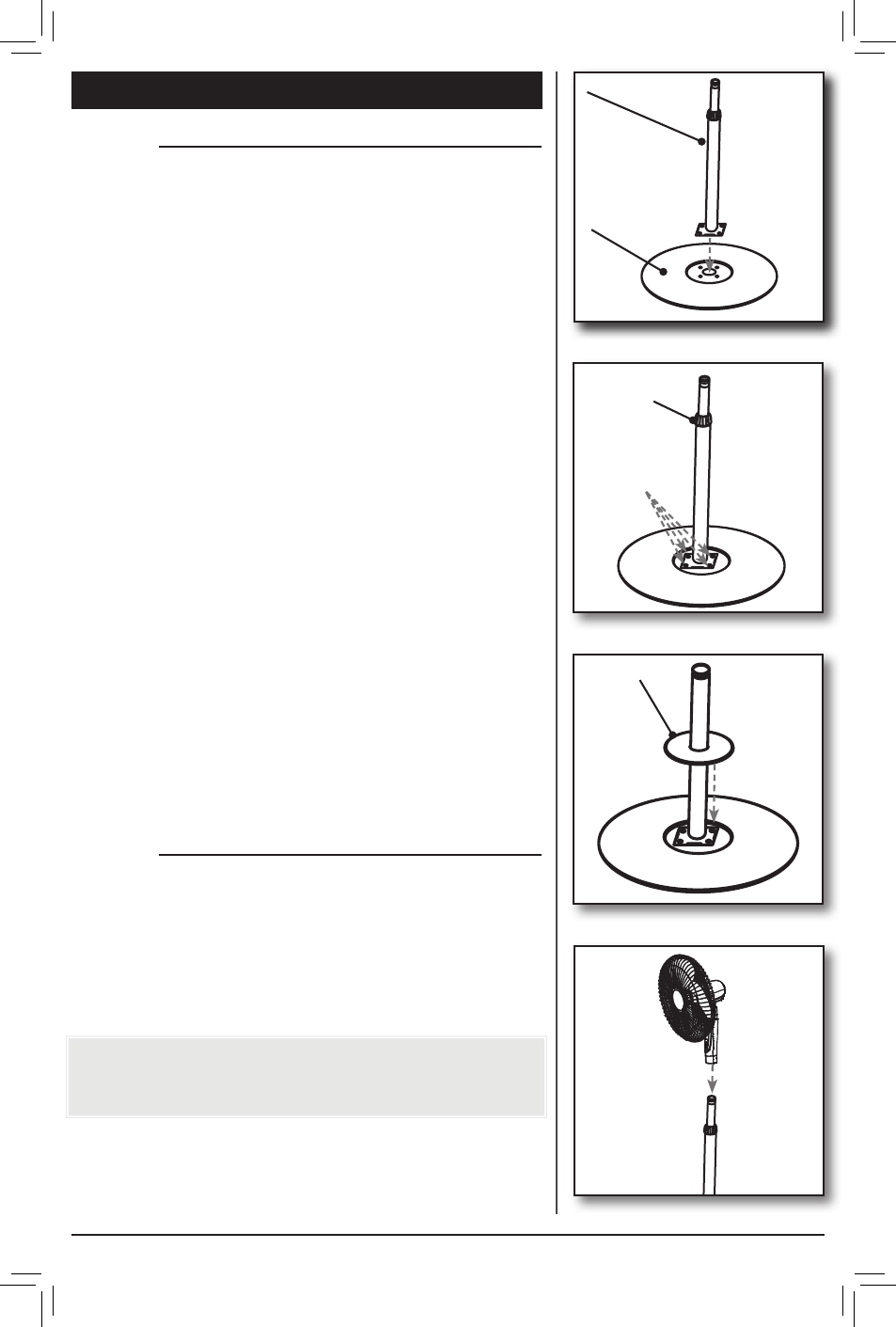

base assembly
1. Slide the Telescope Rod (7) into the top of the Stand
Base (8) aligning the 4 screw holes. Figure 7.
2. Secure the Telescope Rod (7) by inserting the 4 base
screws(9) inot the 4 nuts placed on the bottom of the
fan base and tighten securely. Figure 8.
3. Remove the Adjustment Knob(10) by twisting
counter-clockwise and slide the Base Cover(11)
down the Telescope Pole(7) until it covers the Screws
at the Stand Base(8). Figure 9.
4. Reattach the Adjustment knob and tighten.
5. loosen the Screw in the back of the Fan Assembly.
6. Slide the Fan Assembly onto the telescope pole of the
base until it rests on the top of the pole. Figure 10.
7. tighten the screw on the back of the fan Assembly
until secure.
Warning: do not force pole into the Stand Base
as damage to the Telescope Pole may occur. do not
overtighten the Base nut or screws.
figure 7.
(7) Telescope Pole
(8) Stand Base
figure 8.
Height adjustment
1. grip the upper part of the telescope pole and loosen
the Adjustment Knob.
2. Raise or lower the pole to the desired height.
3. Turn the Adjustment Knob until it is secure.
When adjusting the height of the fan, always grip the
pole above the adjustment knob firmly to prevent the
telescoping pole from collapsing.
(9) Screws
(10) Adjustment
Knob
(11) Base Cover
figure 10.
