Page 17: Physical description, Front and back panels -1
2-1
v1.0, March 2007
Chapter 2
Physical Description
This chapter describes the hardware features of the NETGEAR GS108T Gigabit Smart Switch.
Topics include:
•
Front and back panels
•
10/100/1000 Mbps auto-sensing RJ-45 ports
•
LED descriptions
•
Reset button
•
Factory defaults button
Front and Back Panels
show the key components on the front and back panels of the
NETGEAR GS108T Gigabit Smart Switch.

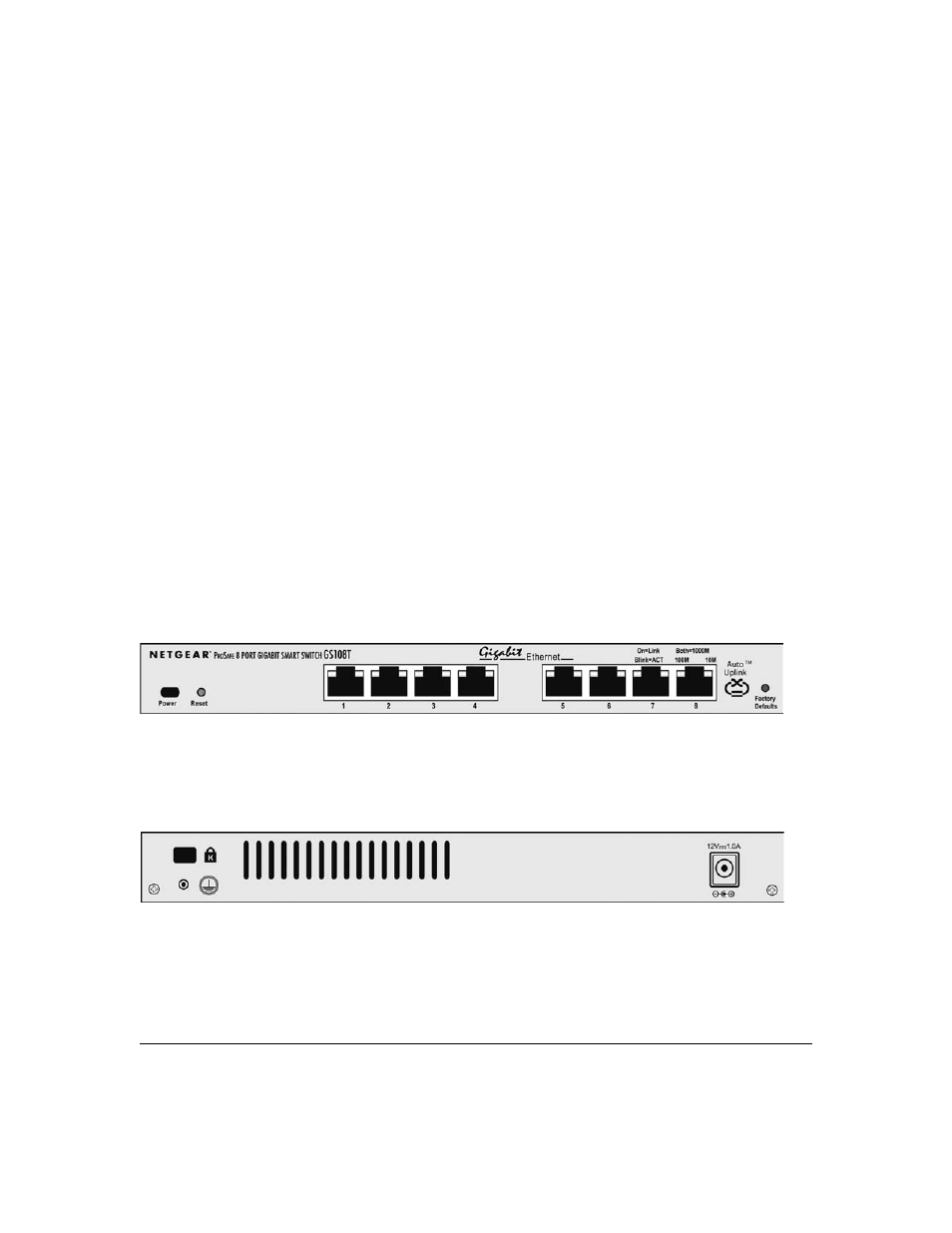

Figure 2-1 GS108T Gigabit Smart Switch—Front Panel
Figure 2-2 GS108T Gigabit Smart Switch—Rear Panel
The front panel contains RJ-45 jacks with LEDs. The rear panel has a DC jack for accommodating
the power adapter.
