HONDA TL5040 - Manual (Page 16)

THROUBLESHOOTING
SYMPTONS
Check for proper oil level. Refer Low oil in gearbox
Check all bolts for tightness. Refer Loose components
Noisy
Adjust skids for same depth Tiller not level right to left Uneven Till
REMEDY PROBABLE CAUSE
Adjust hitch right lift arm
to Torque Specifications
to Lubrication section.
Knocking or
Remove foreign material Foreign material wrapped around rotor
Bogging
level tiller
Chattering
Adjust 3-point hitch top link to Tiller is tilted towards the rear
SPECIFICATIONS
Approximate Working Width ................................................................................................................... 40"
Inside Housing Width ........... .................................................................................................................... 39"
Input RPM ............................................................................................................................................. 2,000
Type Hitch ............................................................................................................................... 3-point Cat. 0
Tine Shaft Speed ..............................................................................................
..............................
288 RPM
Gearbox Ratios ......................................................................................................................... Input - 4.1 : 1
Lateral - 1.69 : 1
Deck Material ................................................................................................................................. 5/64" steel
Tilling Depth ....................................................................................................................................... 0" - 7"
No. of Tines ................................................................................................................................................
24
Implement Weight .............................................................................................................................. 244 Ibs
Shipping Weight ................................................................................................................................. 271 lbs
Chain Housing Oil
........................................................
AGMA 8EP Ind gear oil or SAE 140 GL 5 gear oil
(when the first oil is unavailable)

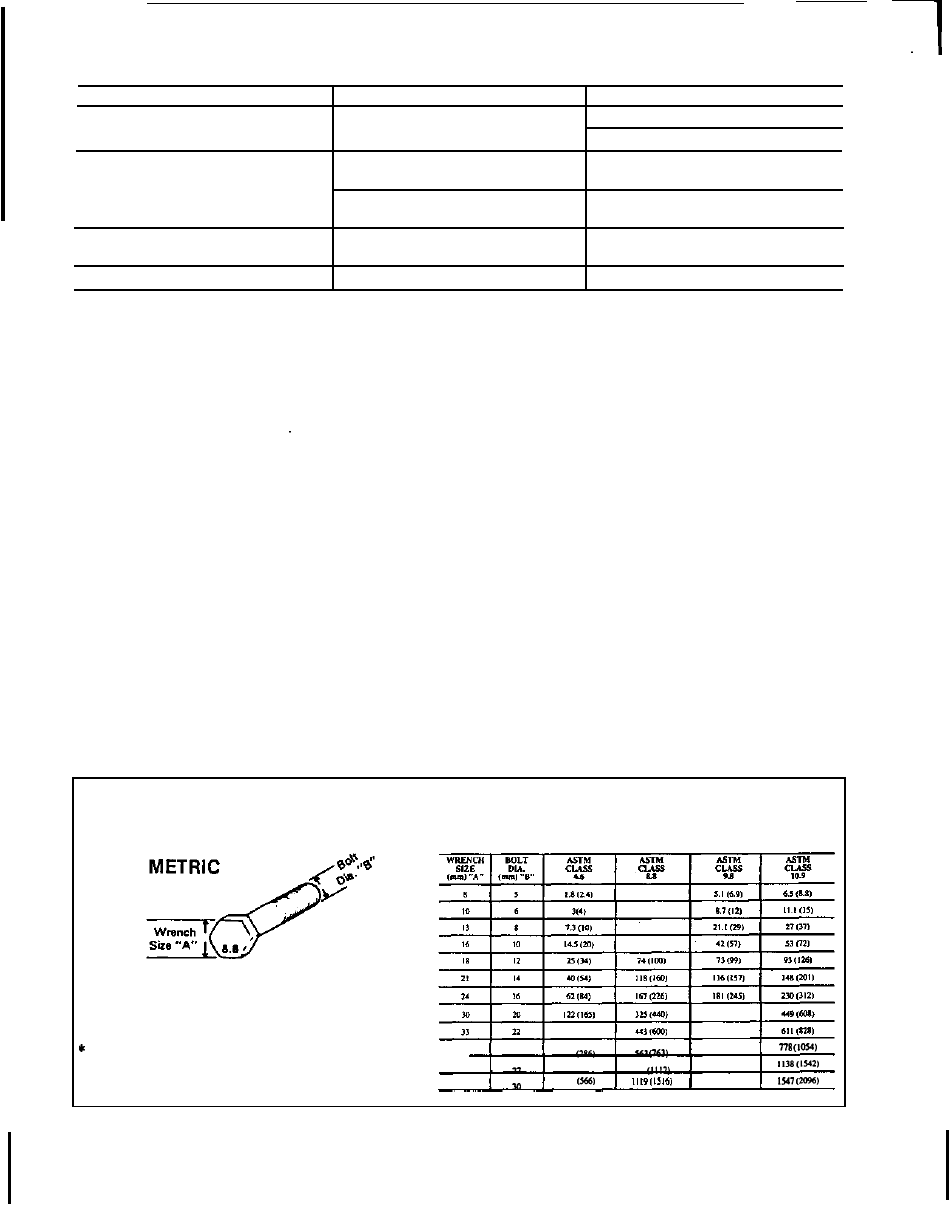

TORQUE SPECIFICATIONS
Proper torque for metric fasteners used on TL 5040 Tiller.
Recommended Toraue in Foot Pounds (Newton Meters).*
Numbers appearing on bolt heads
indicate ASTM class.
Use 75% of the specified torque value for plated
24 21 I
fasteners. Use 85% of the specified torque
41 821
values for lubrificated fasteners.
46
418
14
