HONDA TL5040 - Manual (Page 15)

adjusting bail
\

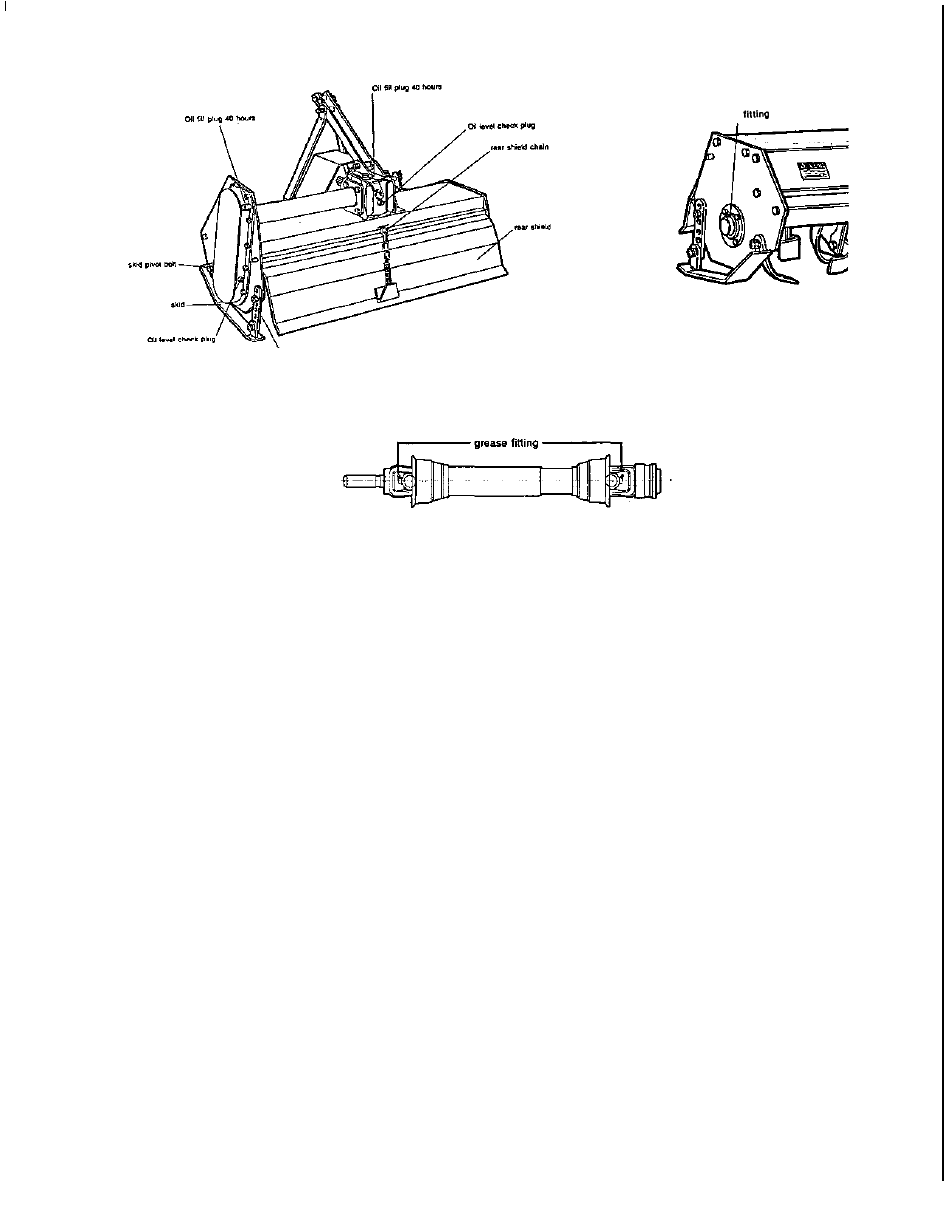

Fig. 25
Grease
Fig. 26
tractor end . tiller end
Driveline
Fig. 27
LUBRICATION
BEFORE EACH USE
1 Driveline Universal Joints - Apply grease to
2 Driveline - Disconnect driveline and separate
each fitting using grease gun (Fig. 27).
sections. Apply grease to male tube.
Reassemble driveline. (Fig.
8)
EVERY 40 HOURS
3 Rotor Shaft Bearing - Apply 2-3 shots of
grease to grease fitting at right end of rotor
shaft using hand pump grease gun (Fig.
26).
4 Input Gearbox - With tiller level, remove oil
level check plug on rear of gearbox housing.
Correct oil level is at bottom of check plug.
Add oil if necessary. Gearbox capacity
14 oz.
5 Lateral chain housing - With tiller level,
remove oil level check plug on side of
housing. Correct oil level is at bottom of
check plug. Add oil if necessary. Chain
housing capacity is 28
oz.
Chain Housing Oil
........................................................
AGMA 8EP Ind gear oil or SAE 140 GL 5 gear oil
(when the first oil is unavailable)
Gearbox Oil
......................................................................................................
SAE 90 or 80 W - 90 wt. oil
Grease .............................................................................................................................. lithium base grease
13
