ASSEMBLY
Fitting the loop handle
(325Cx)
•

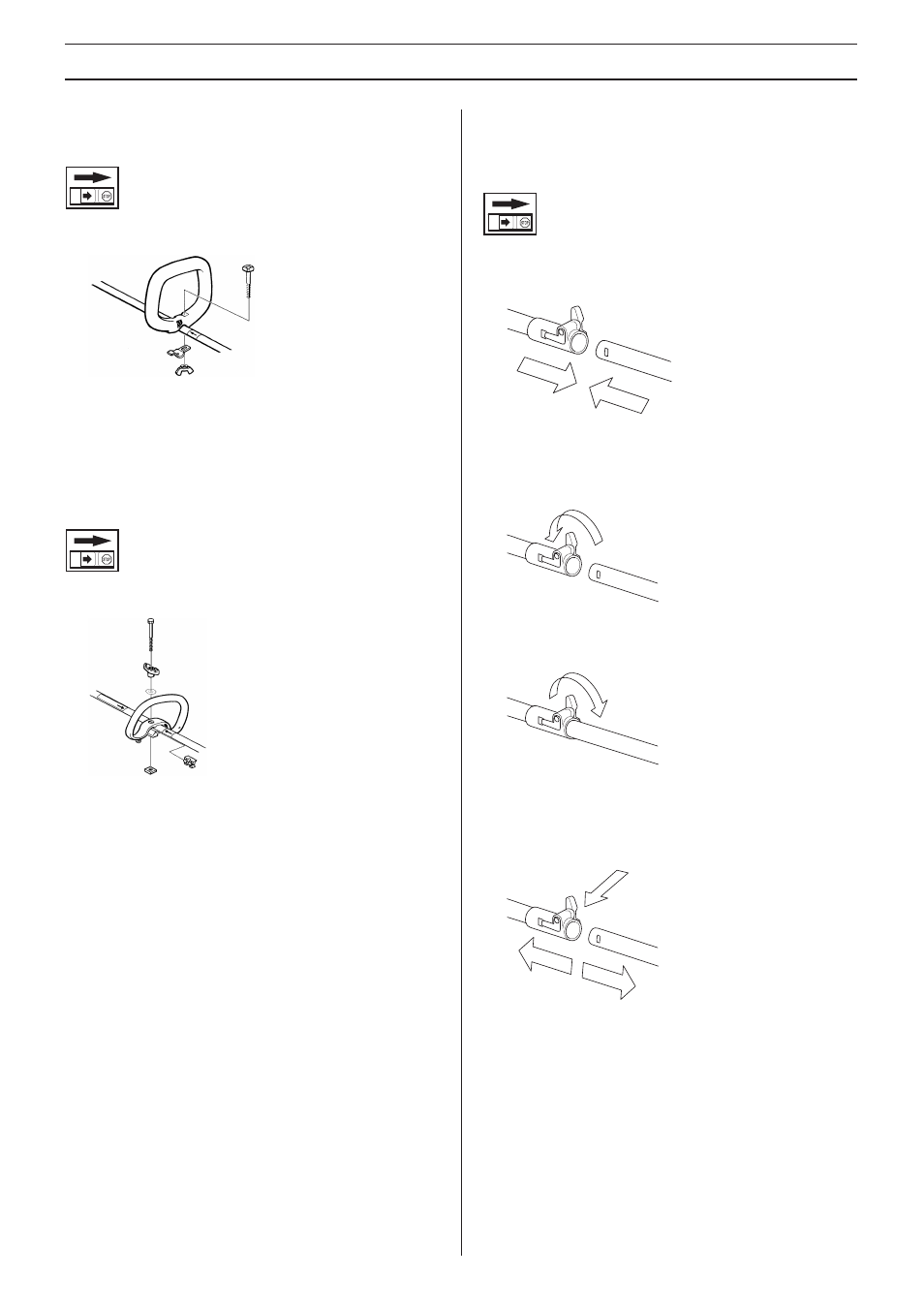

Position the handle on the shaft. Note that the handle
must be mounted below the arrow on the shaft.
•
Fit the screw, securing plate and wing nut as shown in the
diagram.
•
Tighten the wing nut.
Fitting the loop handle
(323L, 323LD, 325Lx, 325LDx)
•
Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
•
Slide the spacer into the slot in the loop handle.
•
323L/323LD: Fit the nut, washer and screw.
325Lx/325LDx: Fit the nut, knob and screw. Do not
overtighten.
•
Now adjust the trimmer to give a comfortable working
position. Tighten the bolt/knob.
Assembling and dismantling the
two-piece shaft
(323LD, 325LDx)
Assembly:
•
Make sure the knob is loose.
•
Align the cut-out in the lower part of the shaft with the
coupling locking tab on the upper part of the shaft. Then
lock the sections together.
•
Tighten the knob.
Dismantling:
•
Undo the knob (at least three turns).
•
Push the knob towards the coupling.
•
Carefully twist the lower half of the shaft to unlock it.
•
Hold both parts of the shaft and pull the lower part of the
shaft out of the coupling.
