8

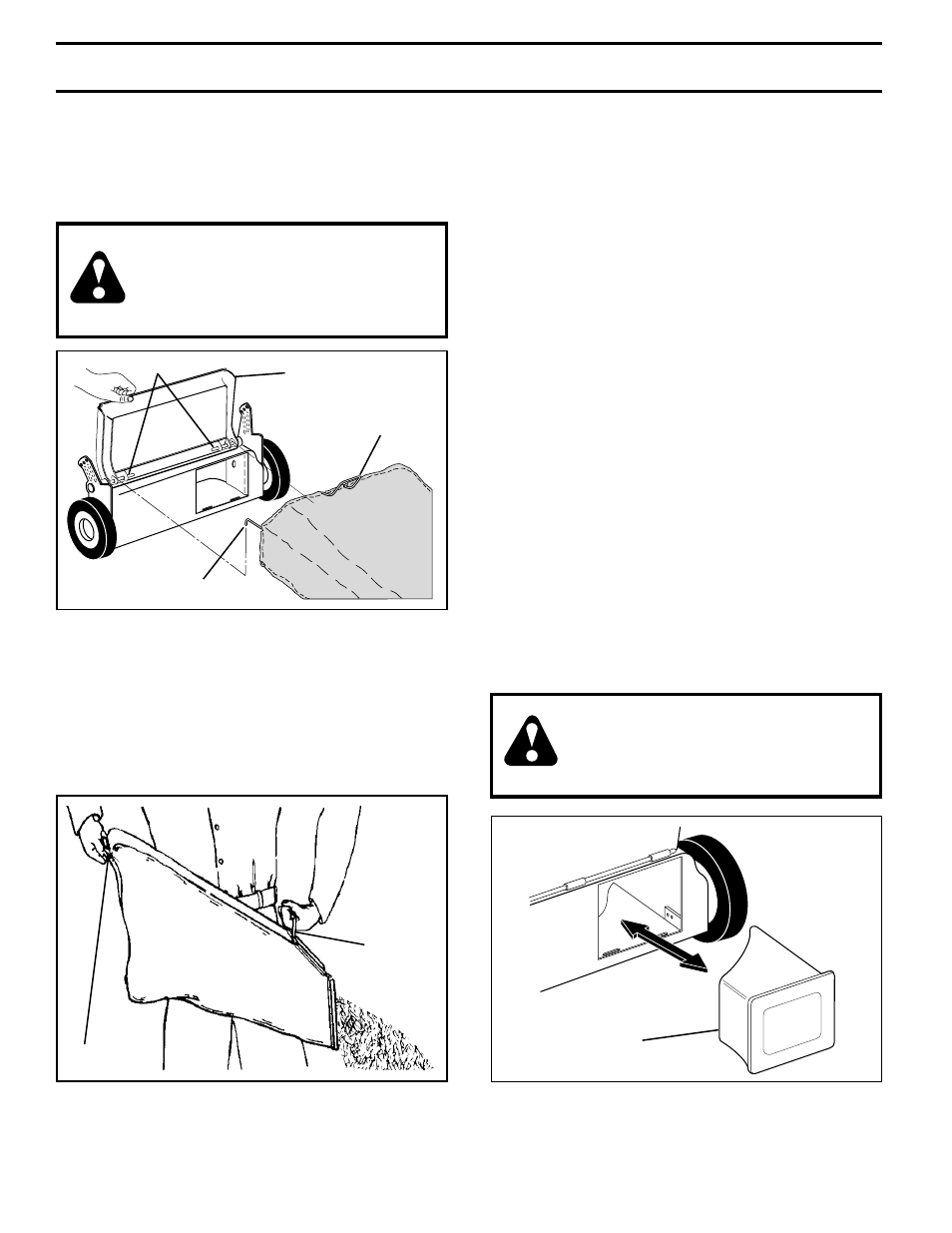

FIG. 7
FIG. 6
TO EMPTY GRASS CATCHER (See Fig. 7)
1. Lift up on grass catcher using the frame handle.
2. Remove grass catcher with clippings from under lawn
mower handle.
3. Empty clippings from bag using both frame handle and
bag handle.
NOTE: Do not drag the bag when emptying; it will cause
unnecessary wear.
OPERATION
PIVOT PINS REAR
DOOR
GRASS
CATCHER
HANDLE
CATCHER FRAME HOOK
TO CONVERT MOWER
Your lawn mower was shipped ready to be used as a
mulcher. To convert to bagging or discharging:
REAR BAGGING (See Fig. 8) -
•
Open rear door and remove mulcher plug. Store mulcher
plug in a safe place.
• You can now install grass catcher.
• To convert to mulching or discharging operation, install
mulcher plug into rear discharge opening of mower.
SIDE DISCHARGING (See Fig. 9) -
•
Mulcher plug must be installed into rear discharge
opening of mower (see above instructions).
• Open mulcher door and install discharge deflector under
door as shown.
• Mower is now ready for discharging operation.
• To convert to mulching or bagging operation, discharge
deflector must be removed and mulcher door must be
closed.
SIMPLE STEPS TO REMEMBER
WHEN CONVERTING YOUR LAWN MOWER
FOR MULCHING -
1.
Rear mulcher plug installed.
2. Mulcher door closed.
FOR REAR BAGGING -
1.
Rear mulcher plug removed.
2. Grass catcher installed.
3. Mulcher door closed.
FOR SIDE DISCHARGING -
1.
Rear mulcher plug installed.
2. Side discharge deflector installed.
CAUTION: Do not run your lawn mower
without mulcher plug or approved grass
catcher in place. Never attempt to oper-
ate the lawn mower with the rear door
removed or propped open.
GRASS
CATCHER
FRAME
HANDLE
BAG
HANDLE
TO ATTACH GRASS CATCHER (See Fig. 6)
1. Lift the rear door of the lawn mower and place the grass
catcher frame side hooks onto the door pivot pins.
2. The grass catcher is secured to the lawn mower housing
when the rear door is lowered onto the grass catcher
frame.
CAUTION: Do not run your lawn mower
without mulcher plug or plate, clipping
deflector or approved grass catcher in
place. Never attempt to operate the lawn
mower with the rear door removed or
propped open.
FIG. 8
MULCHER PLUG
