11

MAINTENANCE

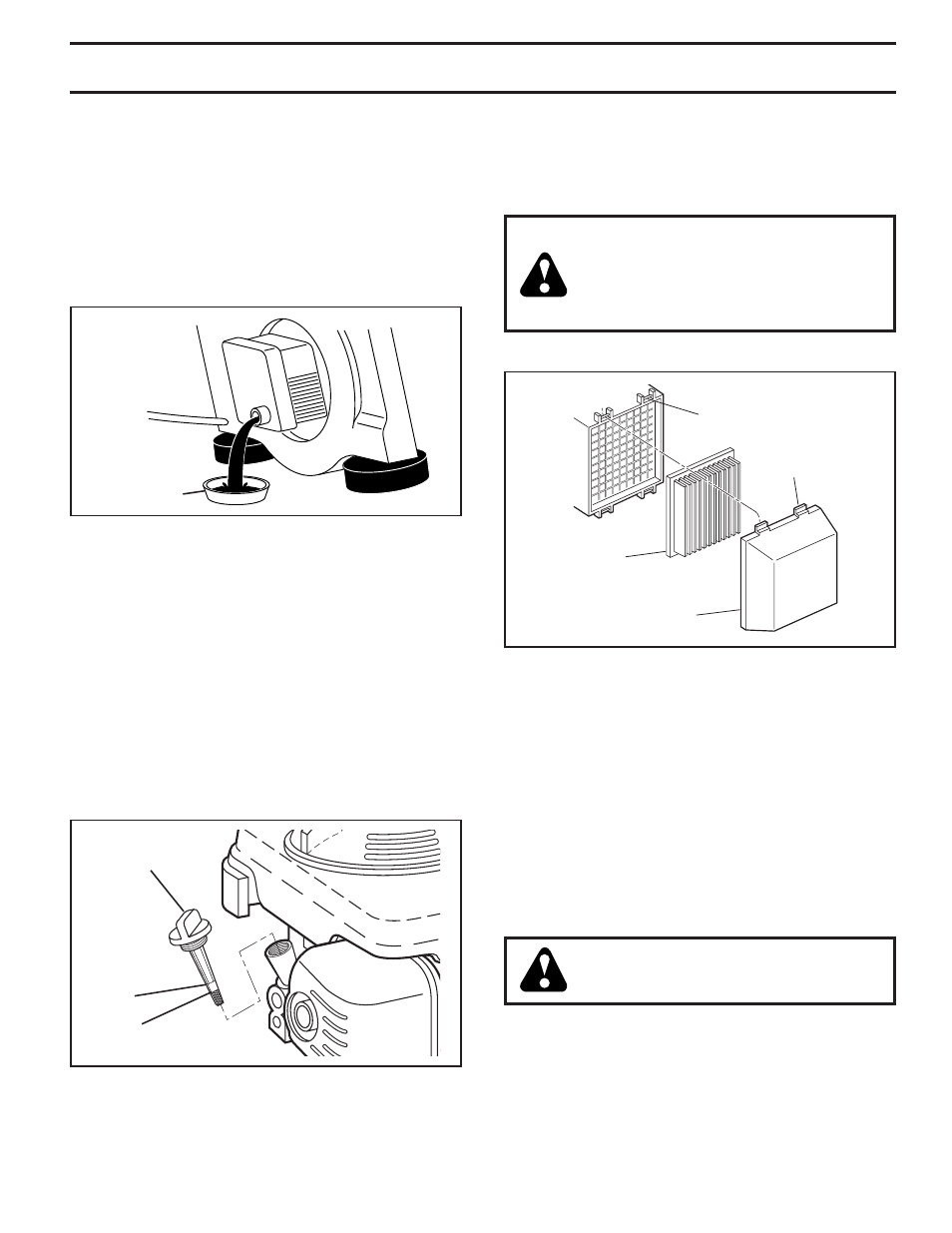

FIG. 11

CONTAINER

TO CHANGE ENGINE OIL (See Figs. 11 & 12)

NOTE: Before tipping lawn mower to drain oil, empty fuel
tank by running engine until fuel tank is empty.

1. Disconnect spark plug wire from spark plug and place

wire where it cannot come in contact with plug.

2. Remove oil fill cap/dipstick; lay aside on a clean sur-

face.

3. Tip lawn mower on its side as shown and drain oil into

a suitable container. Rock lawn mower back and forth
to remove any oil trapped inside of engine.

4. Wipe off any spilled oil from lawn mower or side of

engine.

5. Fill engine with oil. Slowly pour oil down the oil fill spout

into the engine.

6. Wait one minute to allow oil to settle. Use guage on oil

fill cap/dipstick for checking level. Insert dipstick into
the tube and rest the oil fill cap on the tube. DO NOT
thread the cap into the tube when taking reading.

7. Continue adding small amounts of oil and rechecking

the dipstick until it reads full. DO NOT overfill, or engine
will smoke on startup.

8. Always be sure to retighten oil fill cap/dipstick before

starting engine.

9. Reconnect spark plug wire to spark plug.

TO CLEAN AIR FILTER
1. Remove

cover.

2. Carefully remove cartridge.

3. Clean by gently tapping on a flat surface. If very dirty,

replace cartridge.

CAUTION: Petroleum solvents, such as
kerosene, are not to be used to clean
cartridge. They may cause de terioration
of the cartridge. Do not oil car tridge.
Do not use pres surized air to clean or
dry car tridge.

4. Install cartridge, then replace cover.

OIL FILL CAP /
DIPSTICK

LOWER
MARK

UPPER
MARK

FIG. 12

AIR FILTER (See Fig. 13)

Your engine will not run properly and may be damaged by
using a dirty air filter. Replace the air filter every 100 hours of
operation or every season, whichever occurs first. Service
air cleaner more often under dusty conditions.

MUFFLER

Inspect and replace corroded muffler as it could create a
fire hazard and/or damage.

SPARK PLUG

Replace spark plug at the beginning of each mowing season
or after every 100 hours of operation, whichever occurs
first. Spark plug type and gap setting are shown in the
“PRODUCT SPEC IFICA TIONS” section of this manual.

CLEANING

IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER
HOUSING FREE OF BUILT-UP GRASS AND TRASH. CLEAN
THE UNDERSIDE OF YOUR MOWER AFTER EACH USE.

CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with plug.

Clean the underside of your lawn mower by scraping
to remove build-up of grass and trash.

Clean engine often to keep trash from accumulating. A
clogged engine runs hotter and shortens engine life.

Keep finished surfaces and wheels free of all gasoline,
oil, etc.

We do not recommend using a garden hose to clean
lawn mower unless the electrical system, muffler, air
filter and carburetor are covered to keep water out.
Water in engine can result in shortened engine life.

FIG. 13

TAB

CARTRIDGE

FILTER COVER

SLOT
