(1) Turn the base face up (Fig. 25) and loosen the
wing-nut.
(2) Apply a square to the base and the saw blade
and, turning the slotted set screw with a slotted-
head screwdriver, shift the position of the base
to produce the desired right angle.
7. Service parts list
CAUTION:
Repair, modification and inspection of Hitachi Power Tools must be carried out by an
Hitachi Authorized Service Center.
This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service
Center when requesting repair or other maintenance. In the operation and maintenance
of power tools, the safety regulations and standards prescribed in each country must be
observed.
MODIFICATIONS:
Hitachi Power Tools are constantly being improved and modified to incorporate the latest
technological advancements.
Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior
notice.

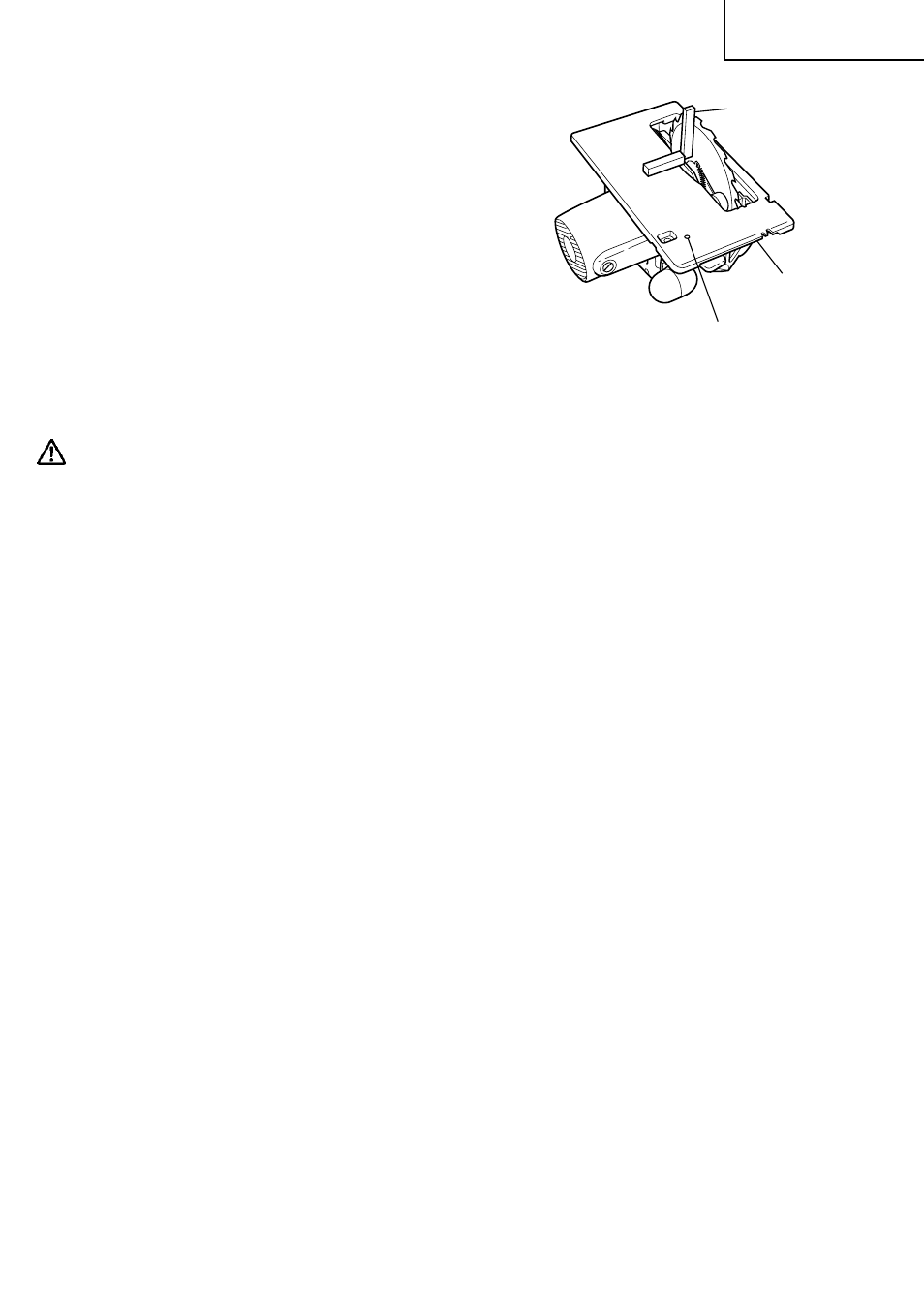

Fig. 25
Square
Slotted Set Screw
Base
