USE OF DUST BAG
WARNING:
● To avoid serious accident, ensure the switch is in the OFF position, and disconnect the
plug from the receptacle.
● Never attempt to saw any material like metal and so on that give off sparks. Such action
can lead to fire or injury.
1. Mounting the dust bag
Hold the clasp of the dust bag and insert it into
the adapting mouth of the body while opening
the thrusting mouth. (Fig. 19)
2. Dumping sawdust and cleaning the
inside of dust bag
NOTE: If too much sawdust is accumulated inside
the dust bag, the dust collector will run low
on power. Attempt to dump the sawdust as
early as you can and clean the dust bag
thoroughly so that you can enjoy your work
with strong dust collecting power.
(1) Hold the clasp, open the thrusting mouth of the
dust bag, and pull it off from the body.
(2) Open the fastener (Fig. 20) and dump the
sawdust.
USE OF DUST GUIDE
WARNING:
● To avoid serious accidents, ensure the switch is in the OFF position, and disconnect the
plug from the receptacle.
● The dust guide is a component part that changes the discharge direction of sawdust and
is not a tool to collect dust. Make certain that you wear protective glasses and a
dustproof mask during the use of the dust guide.
CAUTION:
● The dust guide can change the direction of the discharge direction. Never point it in the
direction of the worker.
● Never carry the tool by the dust guide.

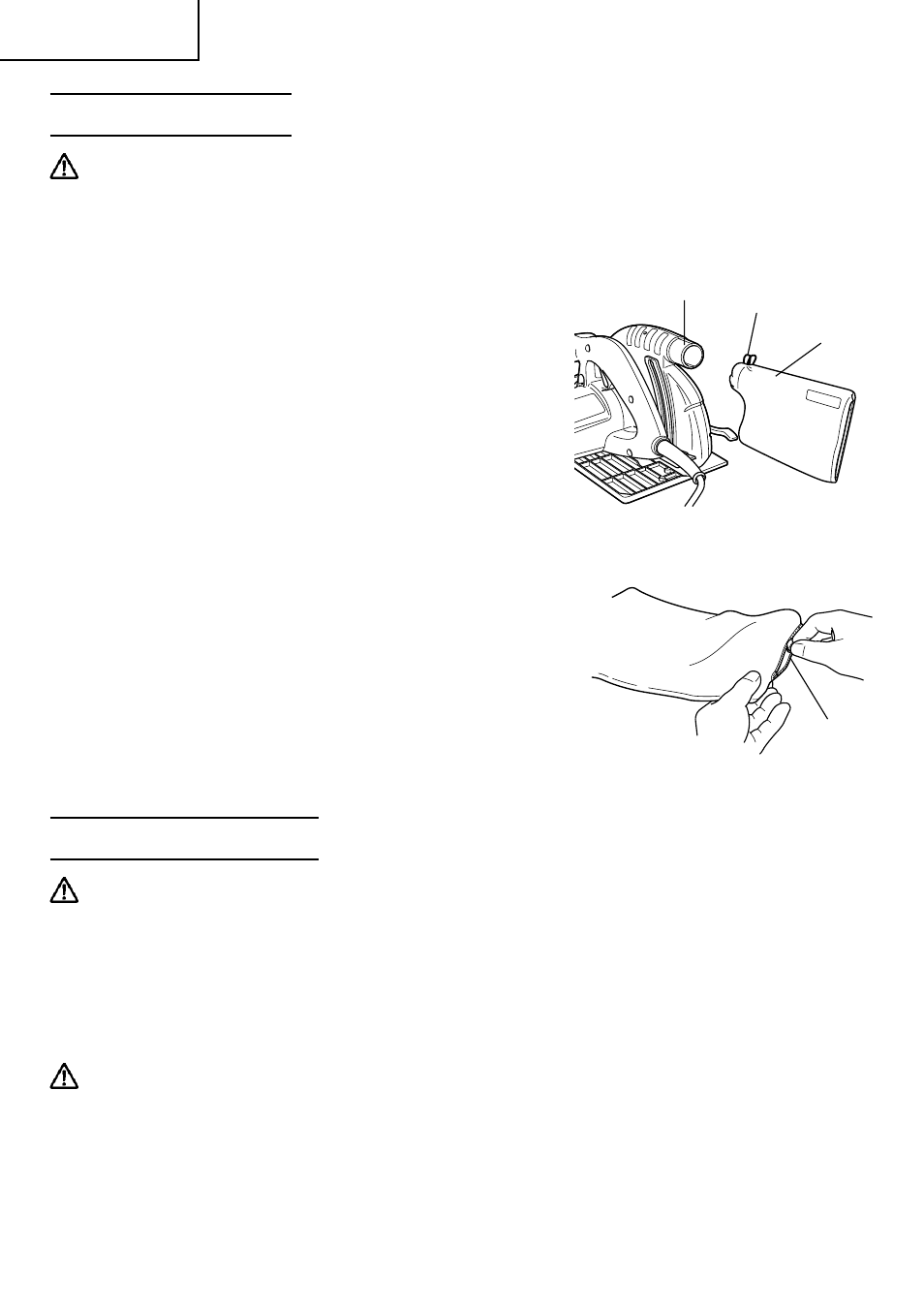

Fig. 19
Fig. 20
Dust Bag
Adapting Mouth
Clasp
Fastener
