SF2600.

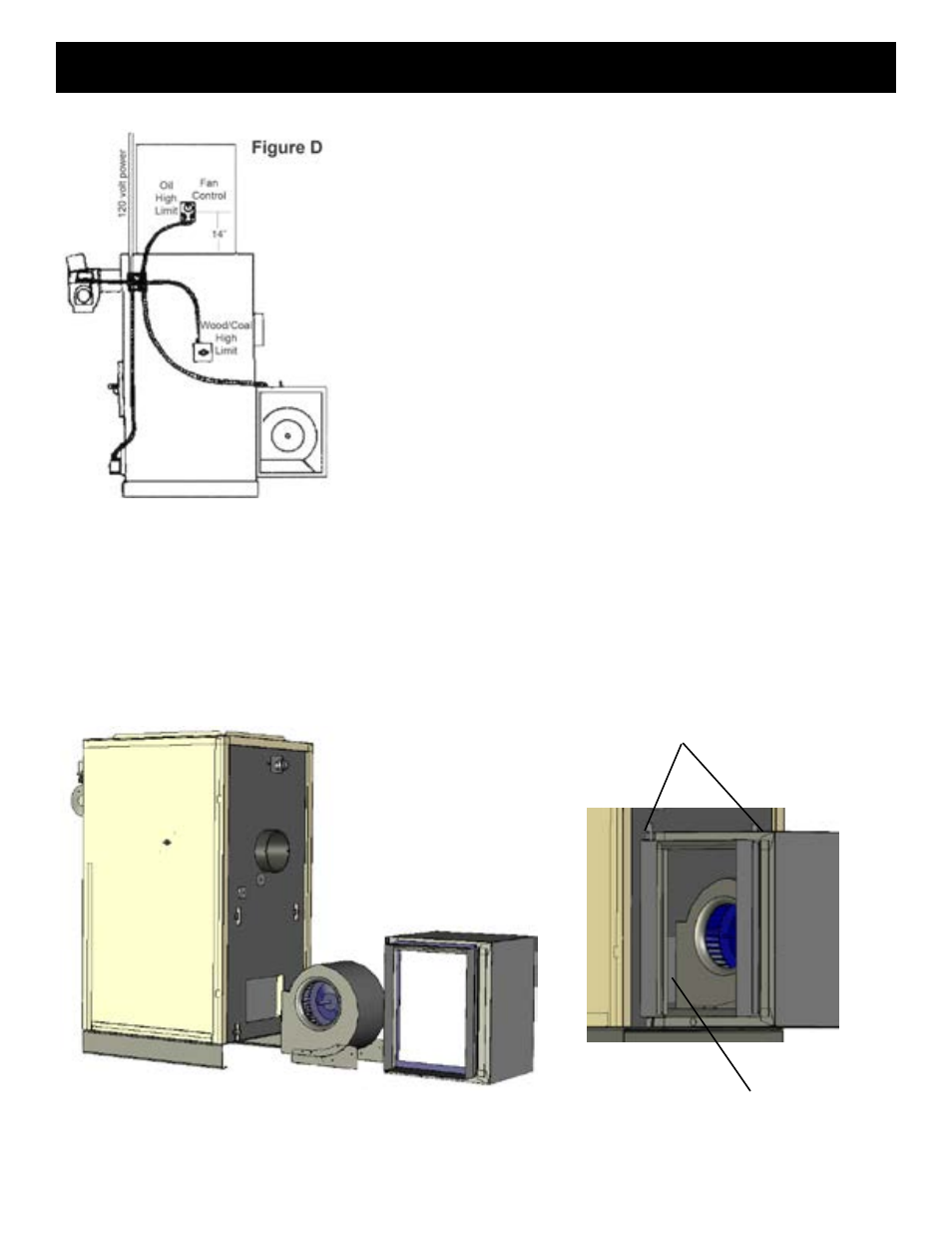

This figure represents the model SF2600 furnace. It’s intention is to represent
the approximate location of the various controls. This drawing may also be used
as a reference for wiring and control spacing. Please note that this drawing is for
reference only. Specific installations will vary.
mounting The blower And Filter box
Position the filter box between the brackets on the rear of the furnace, with the
bottom of the box resting on the flange at the bottom of the furnace. Insert the
mounting clips into the bracket slots to secure the filter box. (see Figure 2) Next,
install the blower brackets onto the blower being sure to install the rubber feet
into the brackets. NOTE: On the SF3500, install the blower mount and blower
before the filter box. All hardware, brackets, etc. for the blower, will be found
in the carton with the blower. Next, position the blower in the filter box, centered
behind the inlet hole and allow approximately 1/8 in. space between the rear of
the furnace and the blower outlet. Now, install the filter rail onto the filter box.
NOTE: The filter rail is best installed on the side toward the shaker handle, so
that any pipes from the hot water coil do not interfere with filter installation or
removal.
NOTE: Before proceeding with the installation of the access door, it is suggested
that the wiring be completed.
The access door is installed by slipping the flange on the bottom of the access
door over the bottom rail of the filter box opening, then push the top of the door against the top of the filter box opening and
secure with a sheet metal screw.
Furnace Installation
Figure 2
Filter box mounting clips
1/8 in. space between
blower and furnace
