DVI Input
Connect the monitor output
connector from a PC to the
appropriate input port.
Antenna Input
Connect cable or
antenna signals to
the TV, either directly
or through your
cable box.
External Speaker
(8 ohm Output)
Connect to optional
external speaker(s).
DVD/DTV Input
(Component )
Connect a component
video/audiodevice to
these jacks.
Audio/Video Input
S-Video Input
Connect audio/video or
S-Video out from an
audio/video or S-Video
device to these jacks.

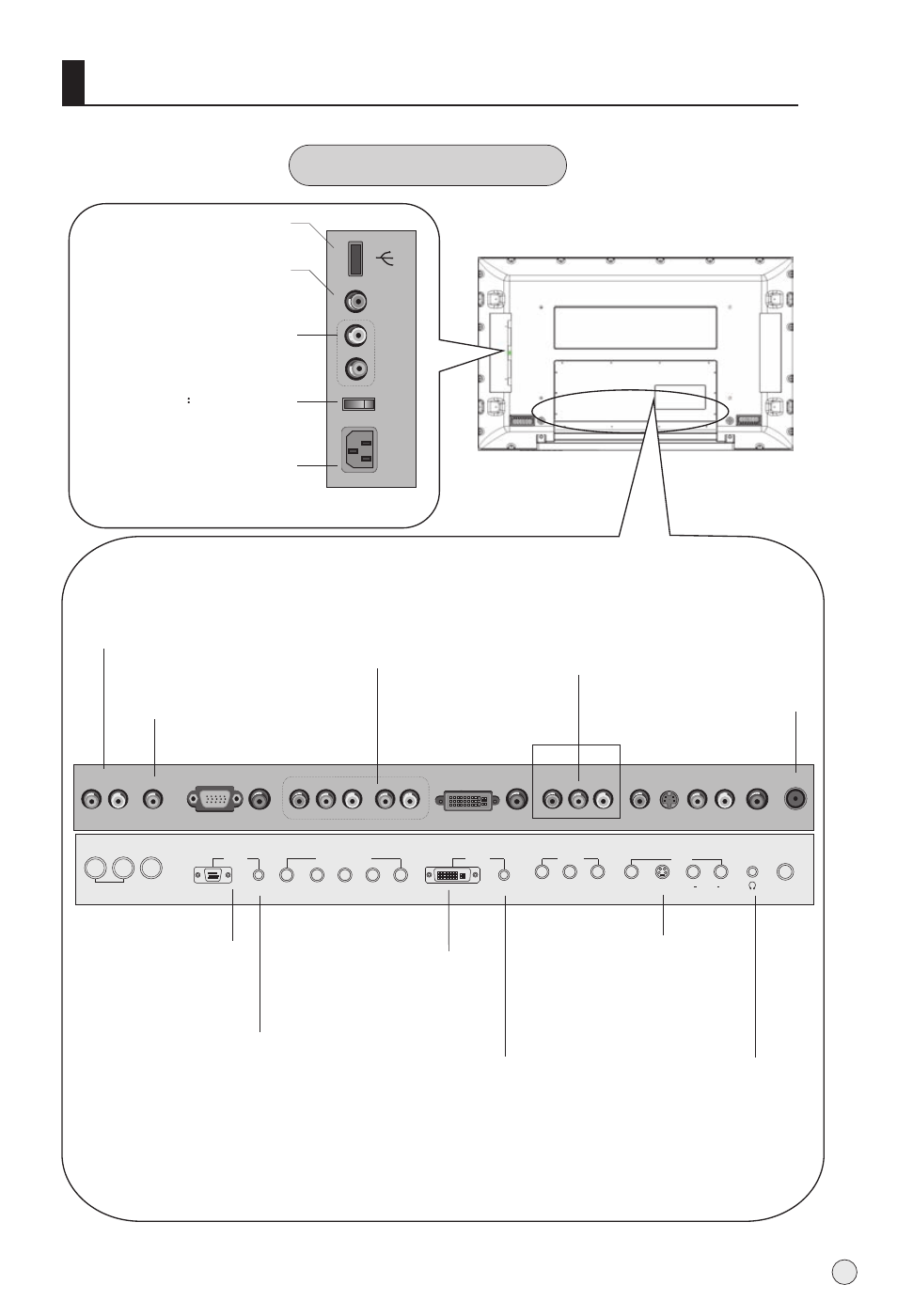

Buttons and interface location
Rear panel Control
EXT Subwoofer:
Subwoofer audio output
terminal.
Audio input
for linking DVI or
other appliance audio
frequency output terminals.
Video/Audio output
terminal
Connect ordinary video/audio
or other appliance
audio input terminals.
VGA Input
Connect the monitor
output connector from
a PC to the jack
5
VIDEO
L
AUDIO
R
POWER
Power Cord Socket
This TV operates on AC power.
The voltage is indicated on
the specifications page.
Never attempt to operate the
TV on DC power
Switch power on/off
USB Socket
AUDIO Input
connect to hear
stereo sound from an
external device .
VIDEO Input
Connects the video signal
from a video device.
AUDIO
AV IN AV OUT
AUDIO AUDIO
DVI IN COMPONENT IN
AUDIO
VGA IN
ANT IN DVI VGA S-VIDEO Pr/Cr Pb/Cb Y L R VIDEO L R AUDIO VIDEO L R AUDIO OUT
R L
WOOFER
Audio input
for linking PC or
other appliance audio
frequency output terminals.
Earphone jack
Earphone Audio output
terminal
