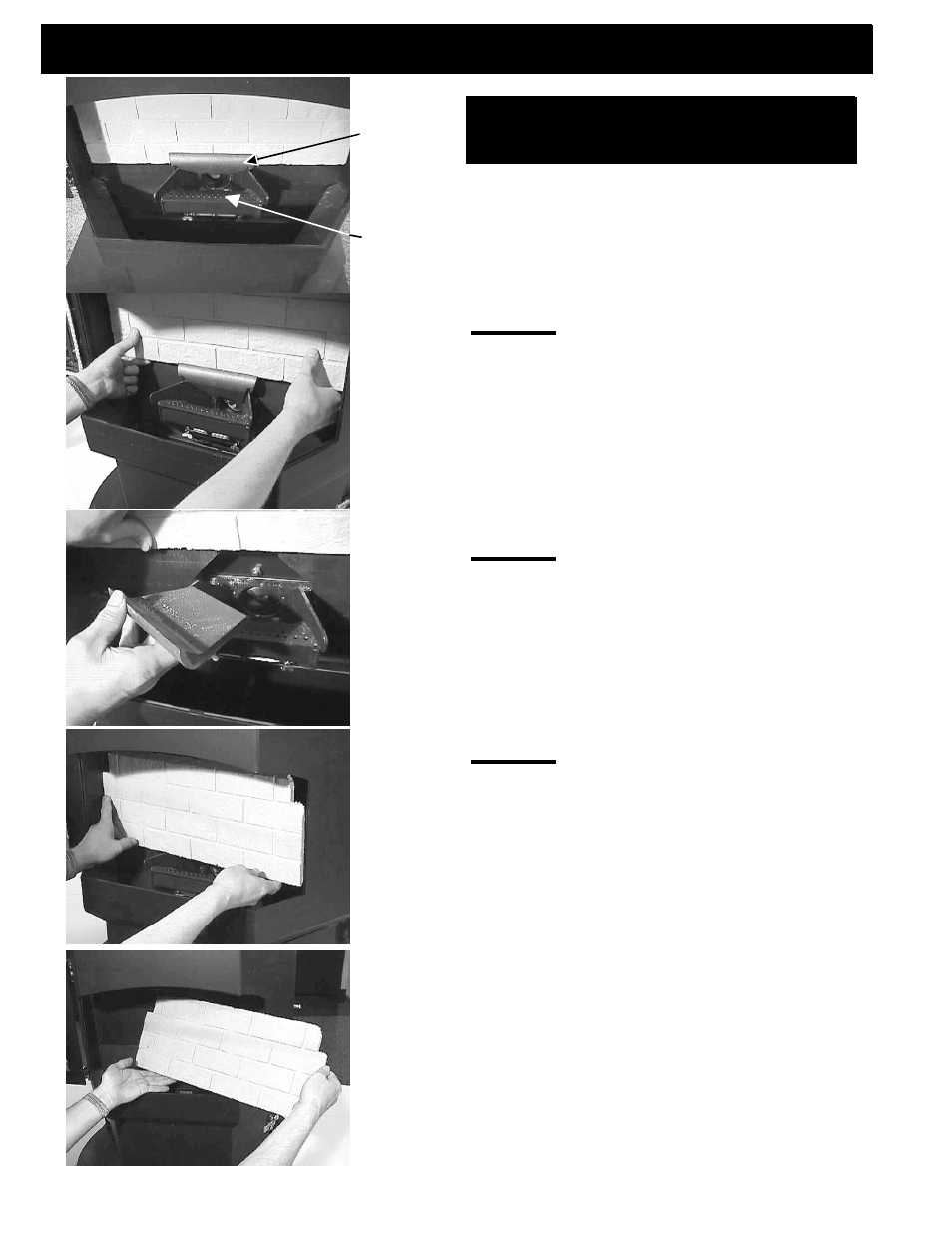

Flame Guide and Brick Panel
Removal for Cleaning
Figure 42
Slide brick panel straight upward with both hands.
Figure 43
W hile holding the brick panel up with one hand,
remove the flame guide from the top of the burn
pot.
Figure 44
Slide the brick panel into the left corner of the
firebox with the panel resting on the top edges of
the burn pot. Rotate the right side of the brick panel
through the door opening.
Reverse this operation to reinstall the brick panel
after cleaning.
Fig. 41
Fi g. 42
Fig. 43
Fi g. 44
Fig. 45
Firebox Brick Panel
Flame Guide/
Brick panel
holder
Burn pot
Maintenance - Flame Guide and Brick Panel
