Page 11
11

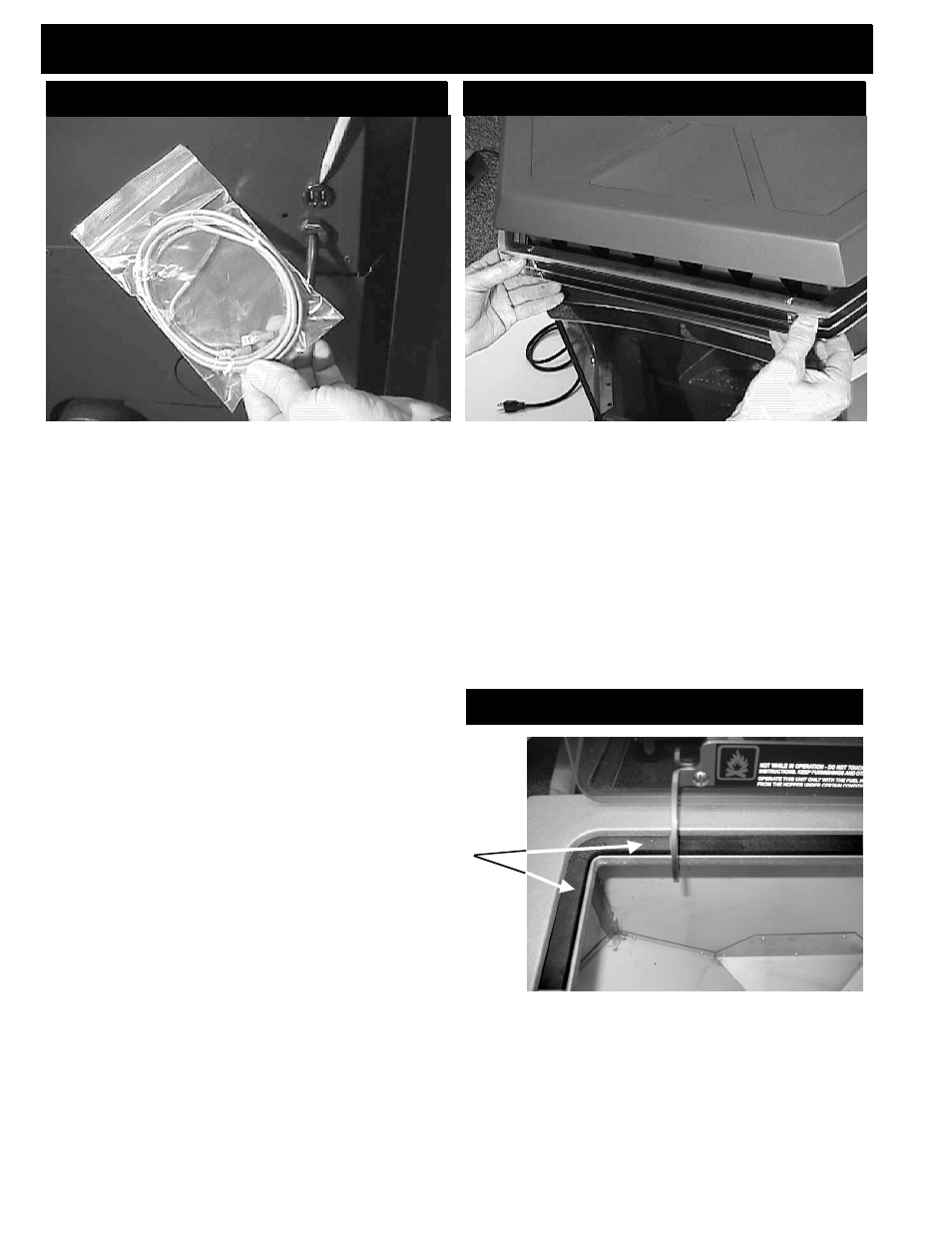

The room sensor is a small temperature sensor
on the end of a 60" gray wire. This sensor is installed
much like a standard wall thermostat. Because it is so
small, it can be hidden along the trim of a doorway or
even up the leg of a coffee table. There is a remote
room sensor port on the rear of the unit for easy exter-
nal connection. Use standard 18-2 thermostat wire to
extend the distance to the desired location (100' maxi-
mum). The room sensor should be installed in the lo-
cation where you want to control the temperature.
NOTE: Distances of more than 25 feet from the
unit or in another room are not recommended. It is
recommended that the room sensor be installed, even
if only installed on the rear of the unit as a return air
sensor. The room sensor is essential for the Advance's
excellent efficiency.
Gold Air Grill Installation
Do not allow pellets or sawdust to build up on the
hopper lid gasket.
Inspect the hopper lid gasket for damage. A good
hopper lid seal is very important for proper
operation.
REMINDERS
Fig. 18
Insert the two tail end hooks of the Air Grill Assembly
up under the stove top edge. Insert inward until the
two center hooks drop into the stove body slots in the
front of the unit.
Fig. 16
Fig. 17
Room Sensor and Air Grill Installation
Room Sensor Installation
Hopper Lid
Foam Gaskets
