SECTION H: TROUBLESHOOTING GUIDE
1.

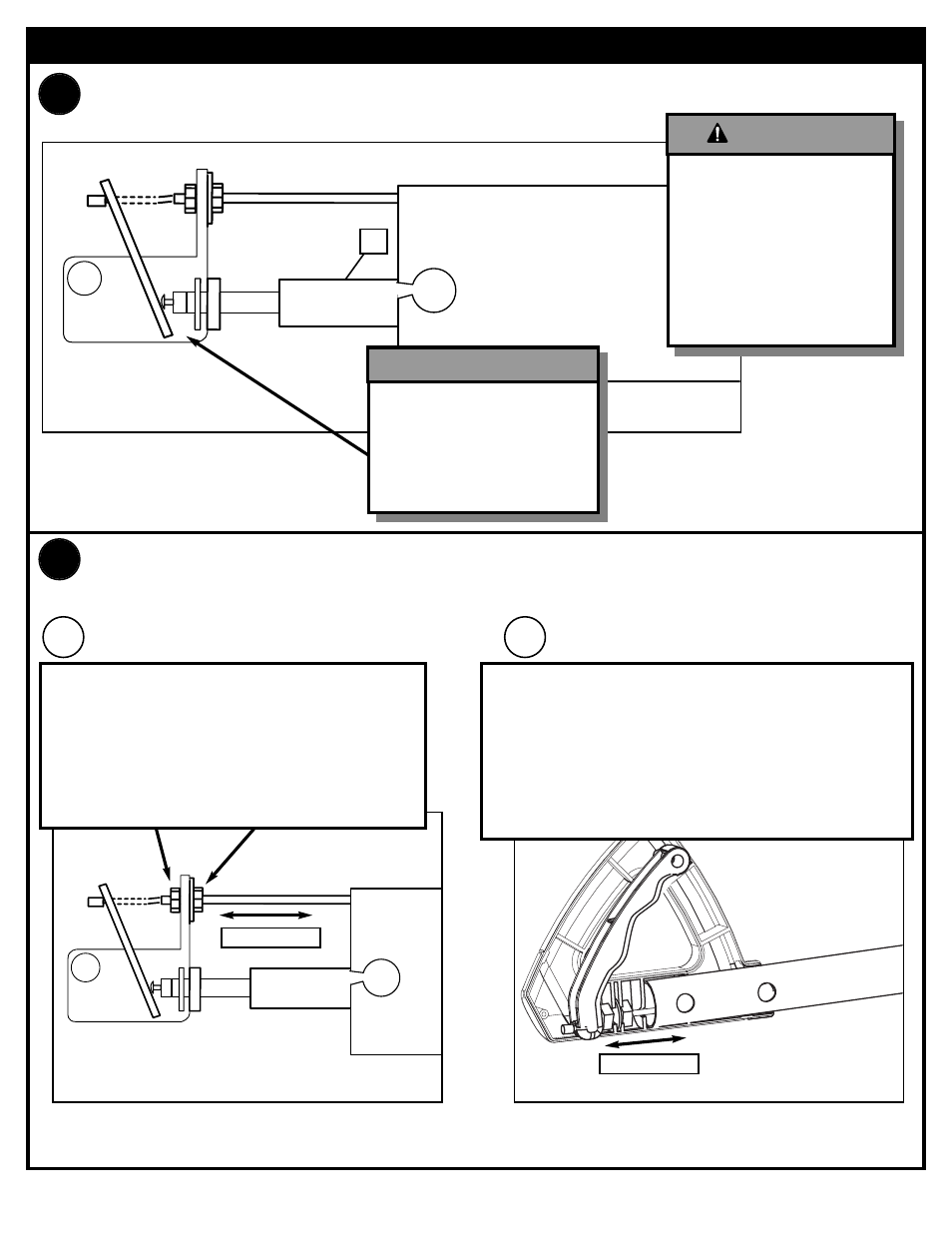

If the elevator is still difficult to operate, verify that the valve located on the strut is
fully depressed when the trigger is activated.
TWO PEOPLE
REQUIRED FOR THIS
PROCEDURE. FAILURE
TO FOLLOW THIS
WARNING COULD
RESULT IN SERIOUS
INJURY AND/OR
PROPERTY
DAMAGE.
WARNING!
Pin must be fully
depressed so that the
backboard assembly
can move freely
IMPORTANT!:
2.
To allow easy movement, or if system does not lock when the trigger is released,
two adjustments can be made.
Slide shroud back to expose bracket and cable.
• If the system does not move freely, loosen nuts and
adjust cable toward gas strut.
• If the system does not lock when the trigger is
released, adjust cable away from gas strut.
Tighten nuts and slide shroud back into position.
A.
Remove right handle to allow access to trigger and cable
mechanism.
• If system is not moving freely, loosen nuts and adjust cable
away from trigger.
• If the system does not lock when the trigger is released, adjust
cable toward trigger.
Reconnect right handle.
B.
Lock Unlock
Lock Unlock
