Installation Sequences Installation Sequences
8. wind-up work
Insert S S upper fixing plate cover into upper fixing plate. (2 places, refer to Figure A on Page 19)
Insert NM= NM= upper fixing cover into upper/lower (left/ right) sides. (4 places, refer to Figure B on Page 19)
Fix R= R= upper gasket sheet with NQ NQ wood screw, and insert NO NO bolt cover.
put 2 Q Q side gaskets into the left and right clearance between the refrigerator and the cabinet, and stick them
well. (Refer to Figure D on Page 19: Stick the magnetic part of gasket to the side panel of refrigerator.)
When change the hinge position, remember to insert U U hinge hole sheet. (6 places, refer to Figure E on Page
20)
Insert T T hinge cover. (4 places, refer to Figure F on Page 20)
Install ventilation grill at the mop plate section of the refrigerator cabinet. (It is provided separately) (Refer to
Figure G on Page 20)
Fix the ventilation grill on the plug-in in the mop plate.
Draw back the cover and fix the unfixed right side section of the refrigerator foot.
(Refer to Figure H on Page 20)
Use NR NR hinge fixing screw to fix the hinge fixing hole. (refer to Figure I on Page 20)
Connect the power cord and confirm that it can function well.

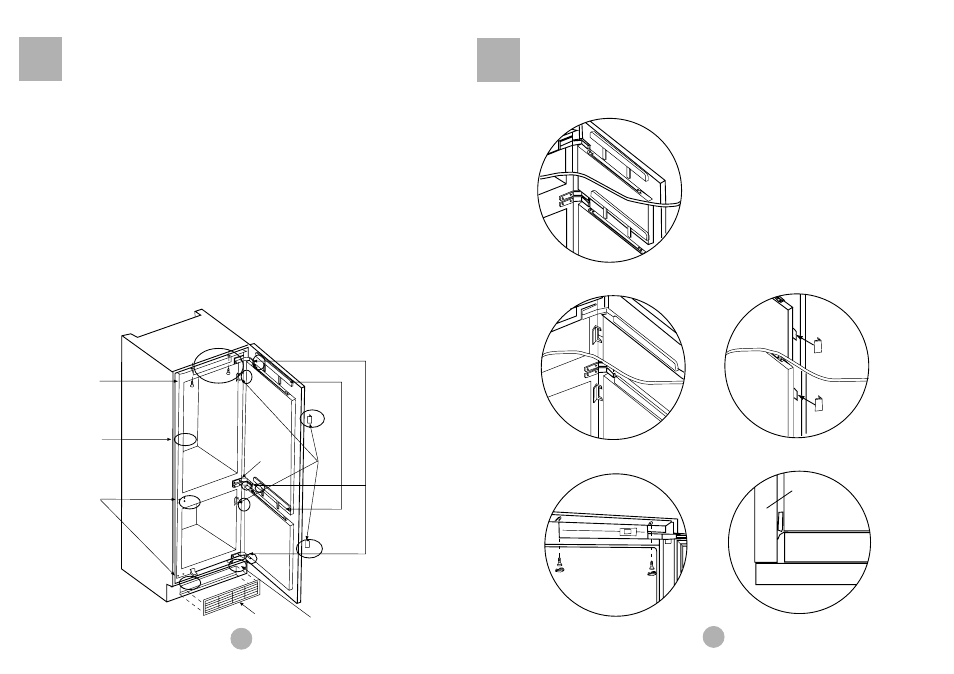

(Figure I)
(Figure A)
(Figure B)
(Figure C)
(Figure D)
(Figure E)
(Figure F)
(Figure G) (Figure H)
Figure A Assembly Method
door Upper door
door Lower door
door Upper door
door Lower door
door Lower door
door Upper door
Refrigerator
Cabinet
Refrigerator Cabinet door
Figure B Assembly Method
Figure C Assembly Method Figure D Assembly Method
Refrigerator door
