17 01/03 P/N 211560H
Item Qty. Part No. Description
1 4 206677 J-Bolt, 1/2”-13 x 24”
2 8 202459 Nut, Hex 1/2”-13
3 1 920578 Mounting Plate
4 34* 203474 Washer, Flat 1/2” x 1” O.D.
5 1 980830 Pole
6 1 220590 Pole Cap, Square
7 11 206340 Nylon Insert Lock Nut, Hex 1/2”-13
8 8 220589 Cap, Arm Support Insert
9 2 906658 Support Arm, 42” Long, (Upper)
10 2 906678 Support Arm, 52” Long, (Lower)
11 2 220586 Logo Label, 15” x 1 3/4”
12 4 220588 Bolt, Hex Flange 1/2”-13 x 9”
13 1 906675 H-Frame
14 1 206685 Foam Roll
15 1 206681 Foam Pad, 4” x 28”
16 4 202856 Bolt, Hex Head,1/2”-13 x 4”
17 1 908058 Bracket, Jack Support (Left)
18 1 906276 Bracket, Jack Support (Right)
19 3 220048 Bolt, Hex Flange, 1/2”-13 x 6”
20 1 222880 Crank Jack
21 2 206311 Spacer, Black .53” x 1/2”
22 4 203113 Bolt, Hex Flange 5/16”-18 x 2 1/2”
23 8 203100 Nut, Hex Flange 5/16”-18
Item Qty. Part No. Description
24 8 203218 Washer, Flat 5/16” x 7/8” O.D.
25 1 920263 Rim, Orange
26 4 201611 Bolt, Hex Flange, 5/16”-18 x 3”
27 5* 203232 Washer, 3/4 O.D.
28 1 200484 Spring
29 1 200323 Washer, Large Concave
30 1 201124 Nut, Hex Locking, 5/16-18
31 1 920043 Cover Plate, Orange
32 2 220140 Screw, Self Tapping, 1/4 - 20 x 1/2
33 1 220569 Label Logo Circle
34 1 204282 Net
35 1 220565 Label, Height Indicator
36 1 206555 Pole Pad (May Not Be Included)
37 1 200685 Label, Height Adjustment
38 4 200517 Bolt Covers
39 1 920262 Bracket, Orange
40 1 920038 Inner Bracket, Black
41 1 220065 Bolt, Carriage 3/8 x 5 1/2
42 2 203063 Nut, Hex Nylon Locking 3/8
43 1 203017 Nut, Hex 3/8
44 1 203439 Bolt, Hex 3/8 x 6
45 1 220064 Spacer, 5 x 1/2” O.D.
46 1 206269 Spacer, Zinc .75” x 4”
* You May Have Extra Parts With This Model.
PARTS LIST

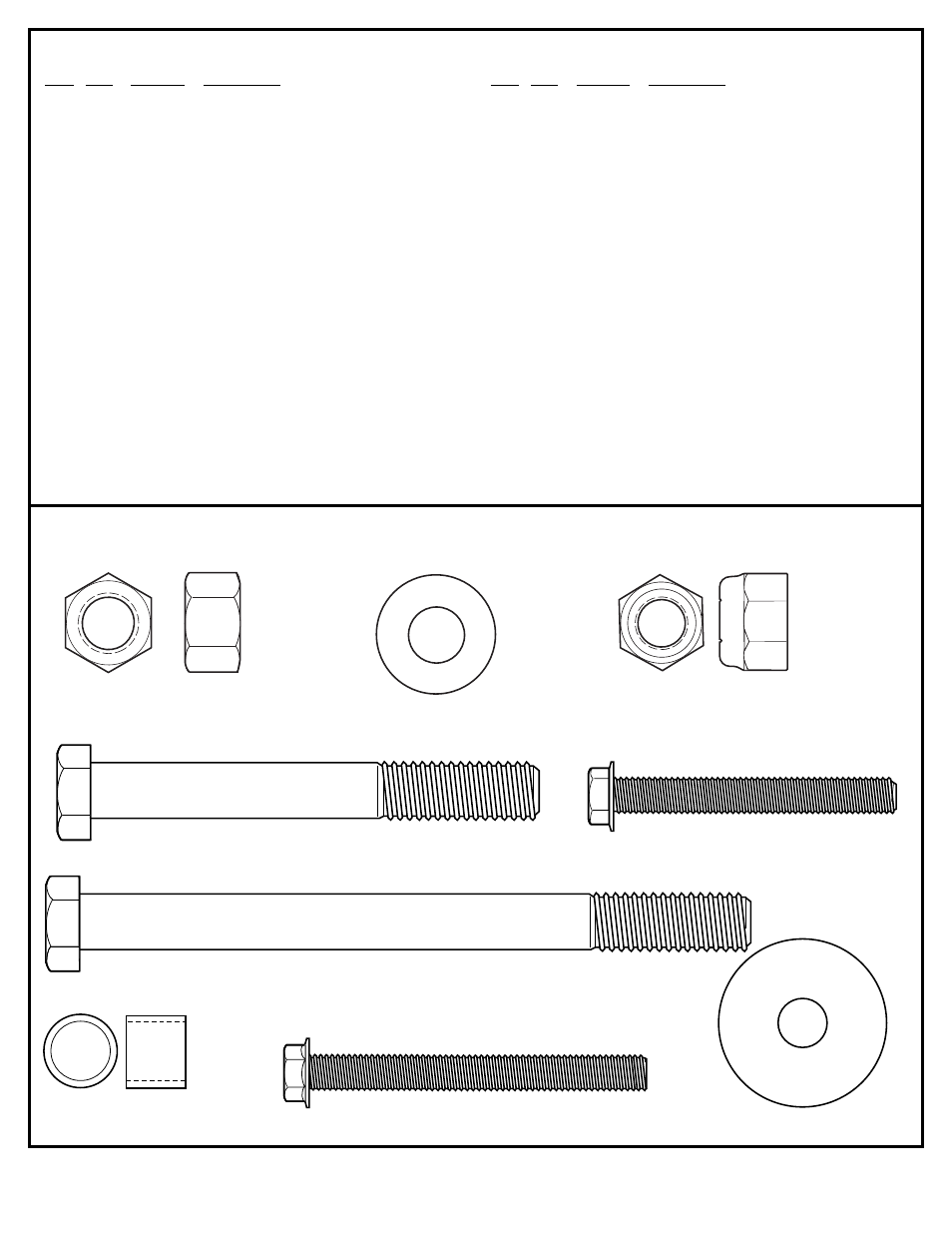

Item #16 (4)
Item #21 (2)
Item #29 (1)
Item #22 (4)
Item #26 (4)
Item #2 (8)
HARDWARE IDENTIFIER
Item #4 (34)*
Item #19 (3)
Item #7 (11)
