15

01/03

P/N 211560H

7

7

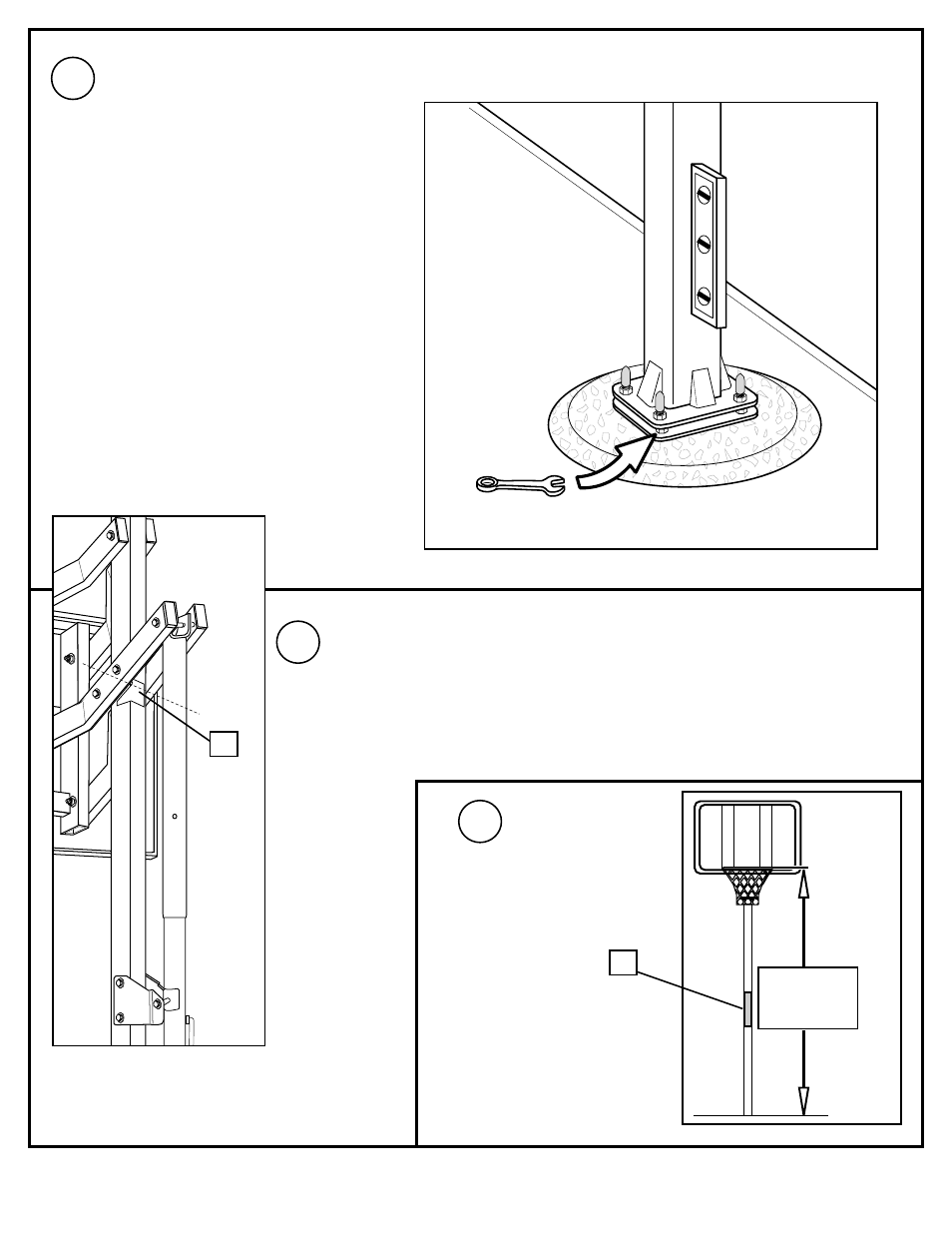

26.

Crank to achieve a rim height of 7’ (2.13 m) from the
ground. Place a mark on pole at the point where the
lower support arms intersect pole. Center and apply
the 7’ (2.13 m) height line on label (35) on the mark
and wrap around. View height indicator label to
determine approximate backboard height.

35

Apply height adjustment
label (37) to front of pole
as shown.

27.

10 feet

(3.05 m)

REGULATION

RIM HEIGHT IS

10 FEET (3.05 m).

37

25.

Check leveling at this time. Pole should
be level in all directions. NOTE: If
adjustment is necessary, adjust system by
rotating the nuts (2) between mounting
plate (3) and pole flange. (Refered to in
Step 6.)

After system is leveled,

completely tighten nuts (7) above pole
flange.
