12

P/N 211560H

01/03

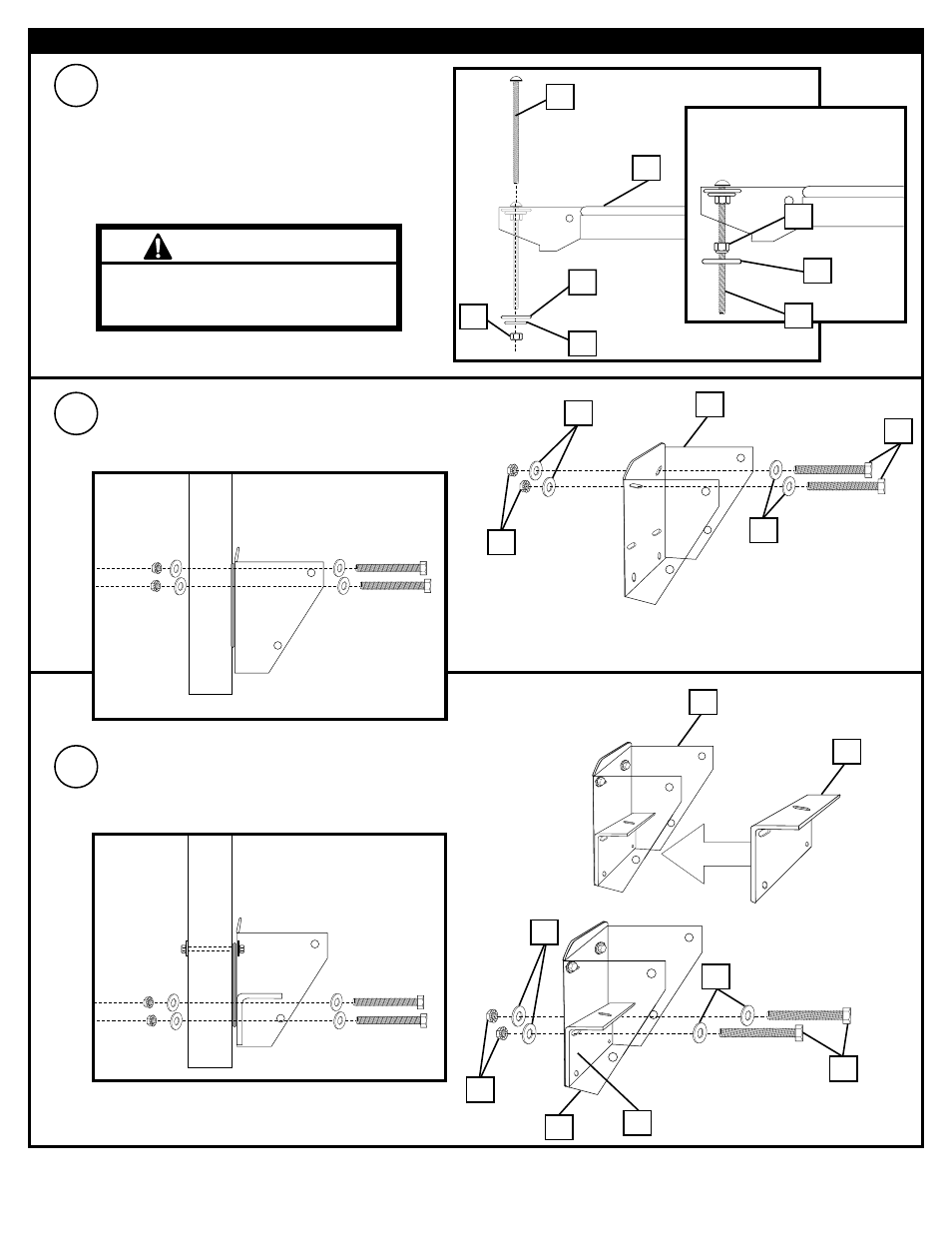

RIM ASSEMBLY & INSTALLATION

WARNING

17.

Install carriage bolt (41) through rim (25),
washers (4) and (27) as shown. Tighten
nut (43) completely. Place nut (42) about
half-way up carriage bolt (41) as shown.

25

4

41

27

43

TWO PERSON MINIMUM REQUIRED FOR THIS

PROCEDURE. NOT FOLLOWING RECOMMENDATION

MAY RESULT IN SERIOUS BODILY INJURY AND/OR

PROPERTY DAMAGE.

Attach bracket (39) to backboard and support
structure by inserting bolts (26) and washers (24)
through top holes in bracket (39), Tighten nuts (23)
completely.

26

39

24

23

24

18.

23

24

24

40

26

Insert inner bracket (40) into bracket (39) as shown.
Insert bolts (26) and washers (24) through top holes
of inner bracket (40) as shown, *FROM STEP 13-
Now tighten backboard/frame nuts (23) completely.

19.

39

40

39

42

41

27
