HONDA AUTOMATIC DAY/NIGHT MIRROR (ATTACHMENT KIT) User Manual
Page 8
8 of 10
AII 30556 (0509)
© 2005 American Honda Motor Co., Inc. - All Rights Reserved.

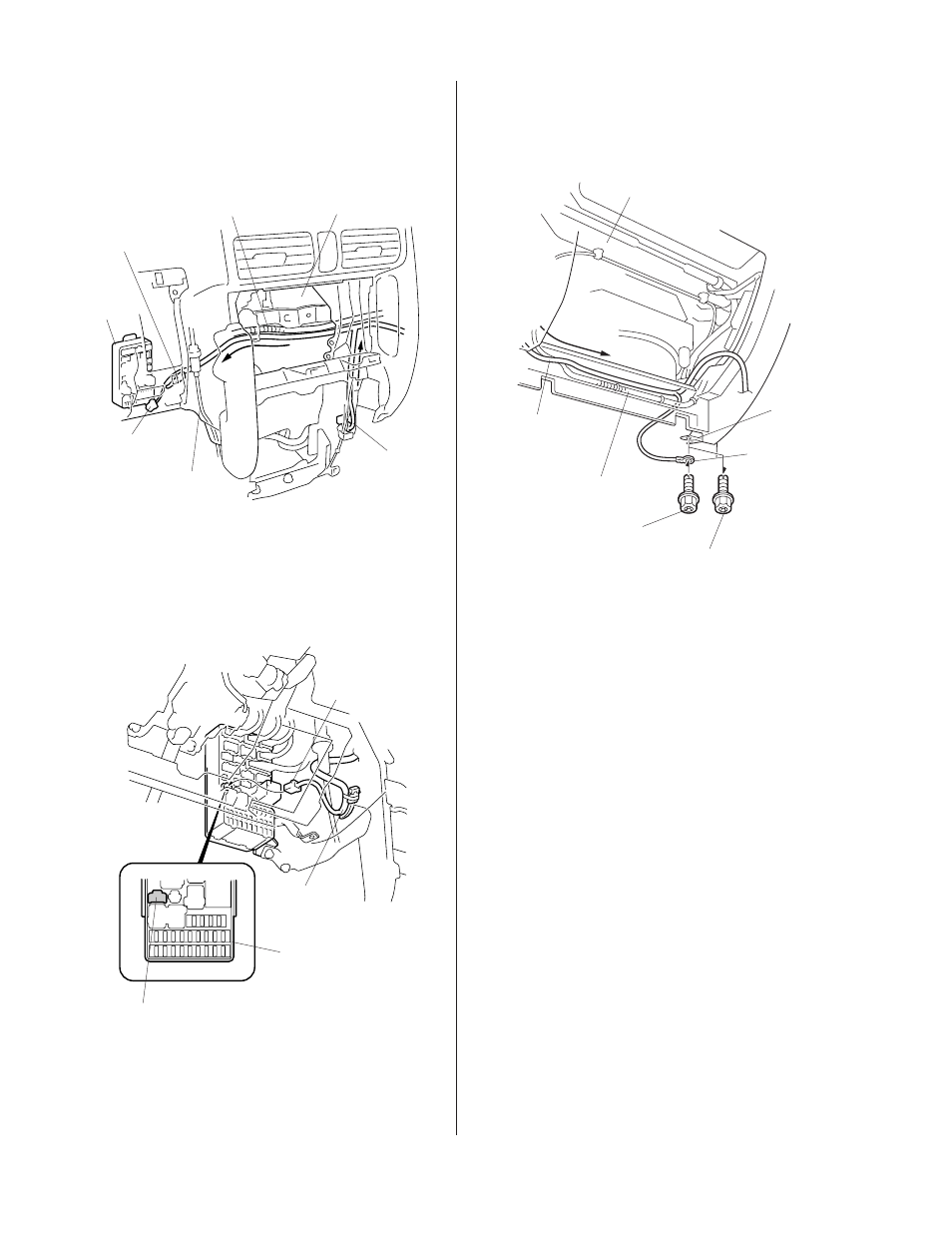

31. Route the day/night mirror harness 4-pin connector
with fuse case upwards to the vehicle harness,
and then along the vehicle harness to the fuse box
through the dashboard pocket opening.
32. Connect the day/night mirror harness 4-pin
connector to the accessory terminal of the fuse
box.
33. Route the day/night mirror harness ground terminal
to the right along the vehicle harness at the rear of
the glove box frame.
4130010H
DAY/NIGHT
MIRROR
HARNESS 4-PIN
CONNECTOR
DAY/NIGHT
MIRROR
HARNESS
FUSE BOX
ACCESSORY
TERMINAL
LOCATION
34. Remove and discard the instrument panel bracket
bolt, and secure the day/night mirror harness
ground terminal to the instrument panel bracket
with the new ground bolt supplied.
4129040H
FUSE
BOX
VEHICLE HARNESS
DASHBOARD
POCKET OPENING
DAY/NIGHT
MIRROR
HARNESS
SHIFT
LEVER
CABLE
DAY/NIGHT
MIRROR
HARNESS
4-PIN
CONNECTOR
DAY/NIGHT
MIRROR
HARNESS
FUSE CASE
4130022H
GLOVE BOX
OPENING
VEHICLE
HARNESS
DAY/NIGHT
MIRROR
HARNESS
DAY/NIGHT
MIRROR
HARNESS
GROUND
TERMINAL
GROUND
BOLT
INSTRUMENT
PANEL
BRACKET
BOLT
(Discard.)
