HONDA AUTOMATIC DAY/NIGHT MIRROR (ATTACHMENT KIT) - Manual (Page 3)

© 2005 American Honda Motor Co., Inc. - All Rights Reserved. AII 30556 (0509)
3 of 10

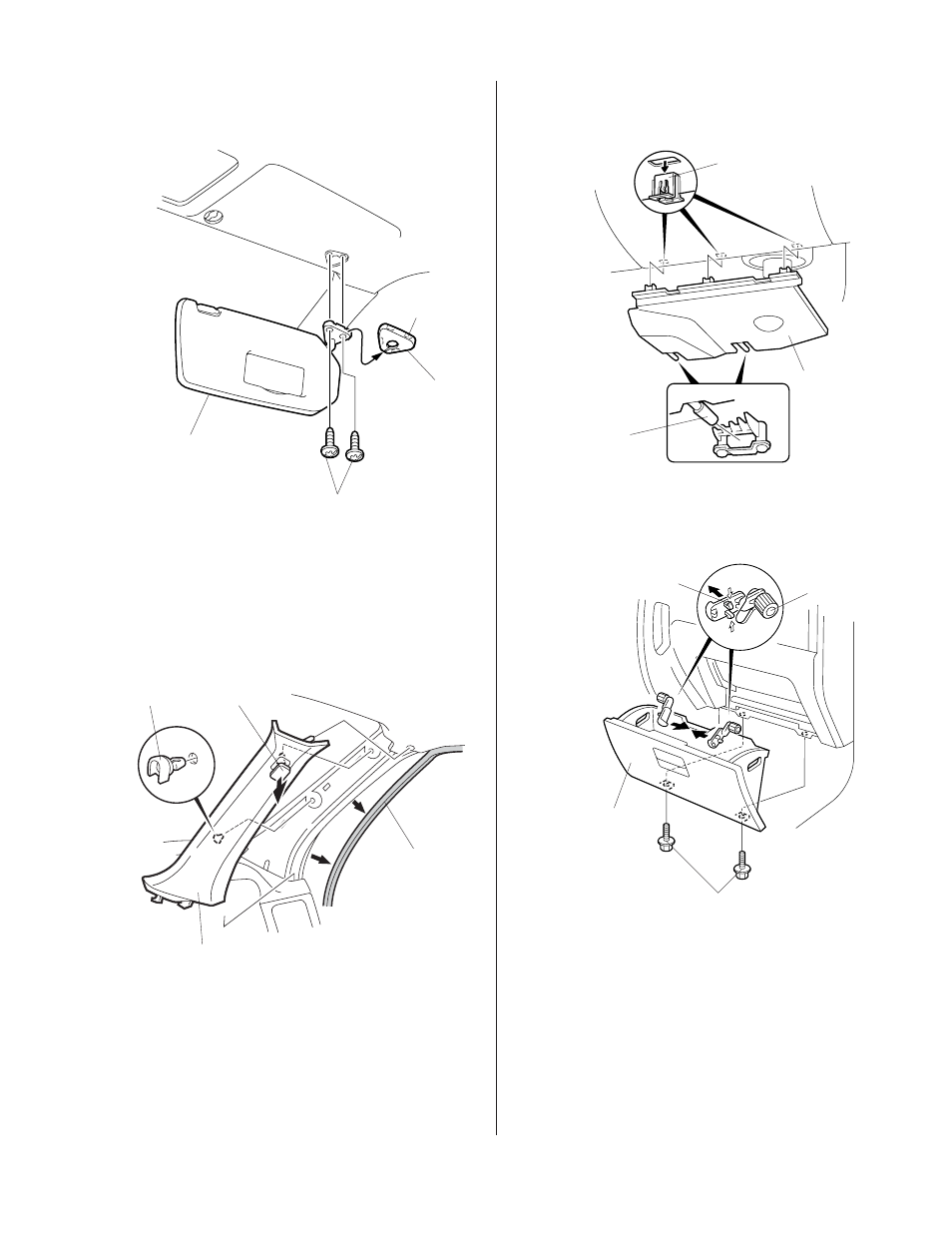

7. Remove the cap from the right sunvisor (four
retaining tabs).
8. Remove the right sunvisor (two T25 Torx screws).
9. Remove the door opening weatherstrip from the
right front pillar in the area shown. Remove the
right front pillar trim (2 clips).
4130090H
RETAINING
TABS (4)
CAP
TORX SCREW
RIGHT
SUNVISOR
4130100H
CLIP
CLIP
Pull out part way
to release.
DOOR OPENING
WEATHERSTRIP
RIGHT FRONT
PILLAR TRIM
10. Remove the passenger’s dashboard under cover
(release the three clips and two pins.)
11. Open the glove box. Release the right and left
stops.
12. Remove the two screws from the bottom of the
glove box, and remove the glove box.
PINS (2)
PASSENGER’S
DASHBOARD
UNDER COVER
CLIPS (3)
STOPS (2)
SCREW
GLOVE
BOX
TABS (2)
