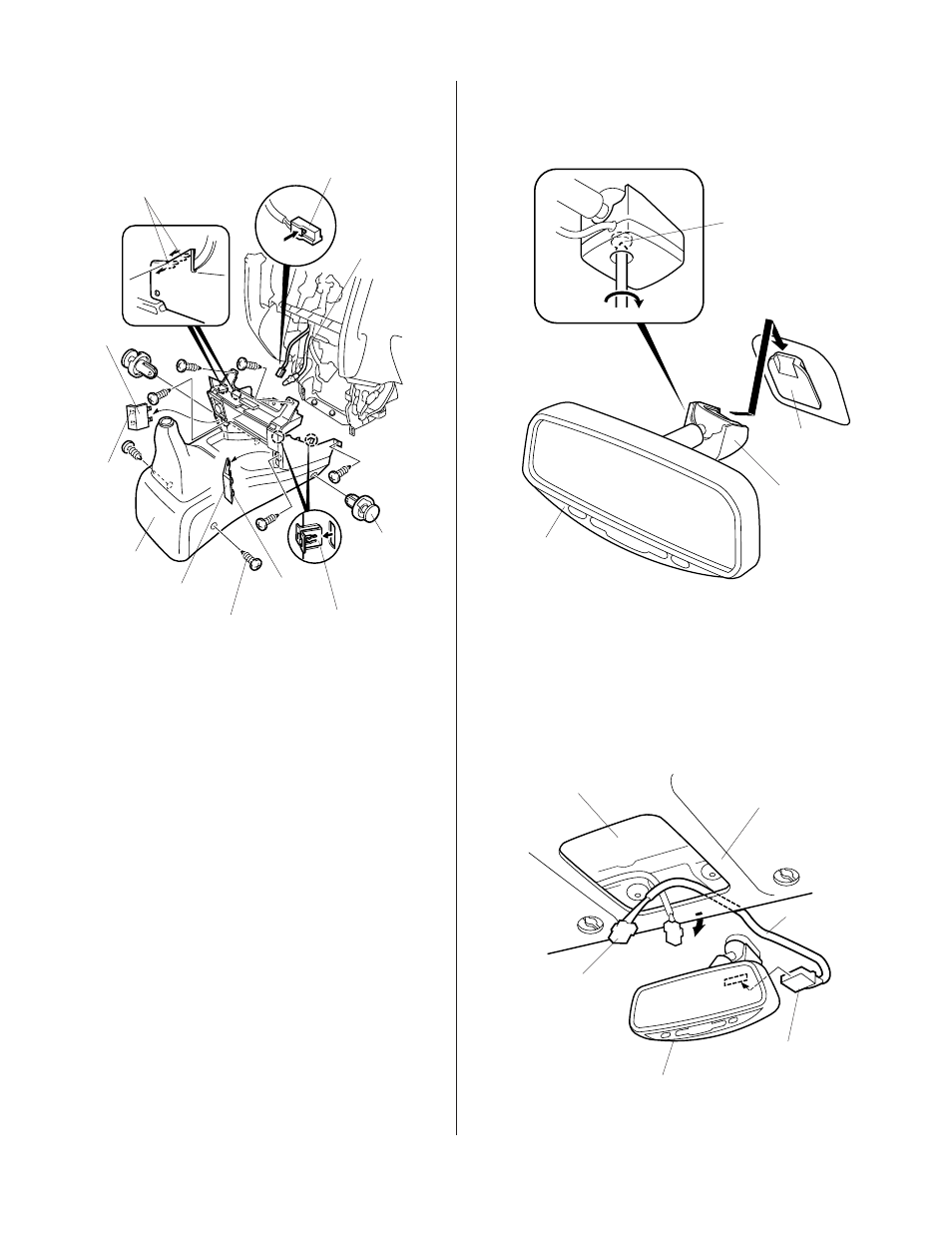

24. Plug the mirror harness 7-pin connector into the

rear of the mirror, then route the 4-pin connector
up and out through the console opening in the
roof lining as shown.

21. On M/T vehicles only, remove the two side covers

(four tabs) from the center console.

22. On M/T vehicles only, remove the two clips and

seven self-tapping screws, and pull the front
console out toward you to release four clips.
Unplug the vehicle 2-pin connector from the
accessory socket, then remove the front console.

4130150H

CONSOLE OPENING

IN ROOF LINING

ROOF LINING

MIRROR

HARNESS

MIRROR HARNESS

7-PIN CONNECTOR

DAY/NIGHT

MIRROR

HARNESS

4-PIN

CONNECTOR

23. Slide the day/night mirror stay onto the mirror

holder, then tighten the T20 Torx screw installed on
the day/night mirror.

4130140H

MIRROR

HOLDER

MIRROR

STAY

DAY/NIGHT

MIRROR

TORX

SCREW

4404311T

Pull

VEHICLE 2-PIN

CONNECTOR

CLIPS (2)

SELF-TAPPING

SCREWS (7)

CLIPS (2)

TABS (4)

SIDE

COVER

SIDE COVER

TABS (4)

CLIP

FRONT

CONSOLE

ILLUMINATION

BULB
