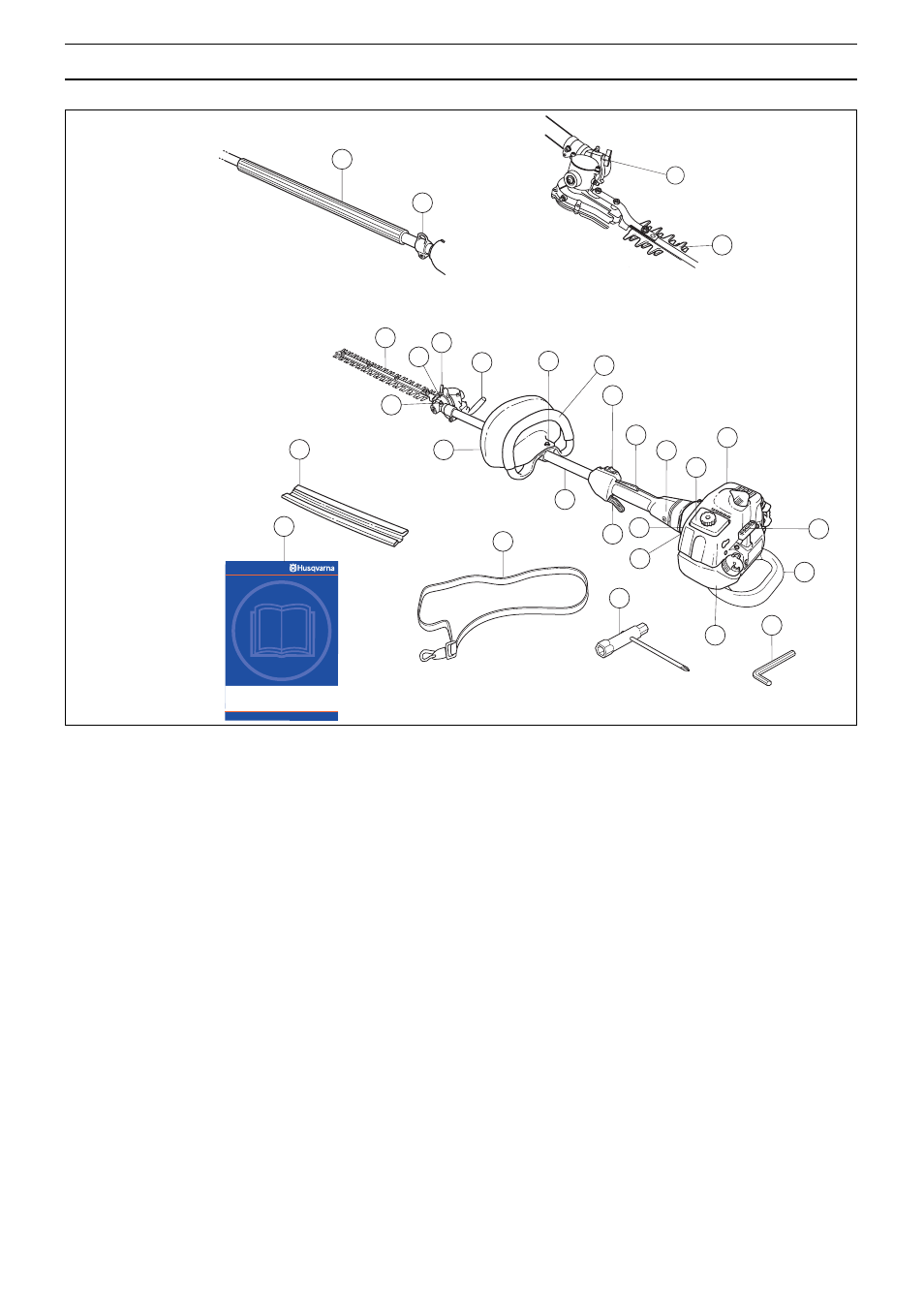

WHAT IS WHAT?
What is what?
8
19
12
13
14
17
16
15
18 22
27
25
26
23
11
5
21
20
4
6
21
9
10
2
3
1
7
326HE4
326HDA55
24
28
1 Cutter
2 Grease nipples (3)
3 Bevel gear
4 Cutter guard (326HDA55)
5 Shaft
6 Front handle (326HDA55/326HE3)
7 Front handle (326HE4)
8 Throttle control
9 Stop switch
10 Throttle lock
11 Harness support hook (326HE4)
12 Cylinder cover
13 Starter handle
14 Fuel tank
15 Choke control
16 Air purge
17 Air filter cover
18 Clutch cover
19 Hand guard mounting screw (326HDA55/326HE3)
20 Angle adjustment handle (326HE3, 326HE4)
21 Angle adjustment knob
22 Hand guard (326HDA55/326HE3)
23 Combination spanner
24 Operator
′
s manual
25 Transport guard
26 Allen key
27 Harness (326HE4)
28 Impact guard (326HE4)
