-3- 598-1143-01
12345678
1234
5
6
7
Inside Push
Button
Strobe/Tune Settings
Your wireless chime has different selectable tunes: Ding-Dong (two flashes/two
notes/two flashes) or Westminster (eight flashes/eight notes/eight flashes). The
factory setting is for the Westminster tune. This tune can be changed by following
the instructions below.
•
Ding-Dong (Two note tune)
Strobe will flash two times, play the two note tune, then flash two more
times.
Push button: Add a jumper to location 8.
•
Westminster (Eight note tune)
Strobe will flash eight times, play the eight note tune, then flash eight more
times.
Push button: Remove jumper from location 8.

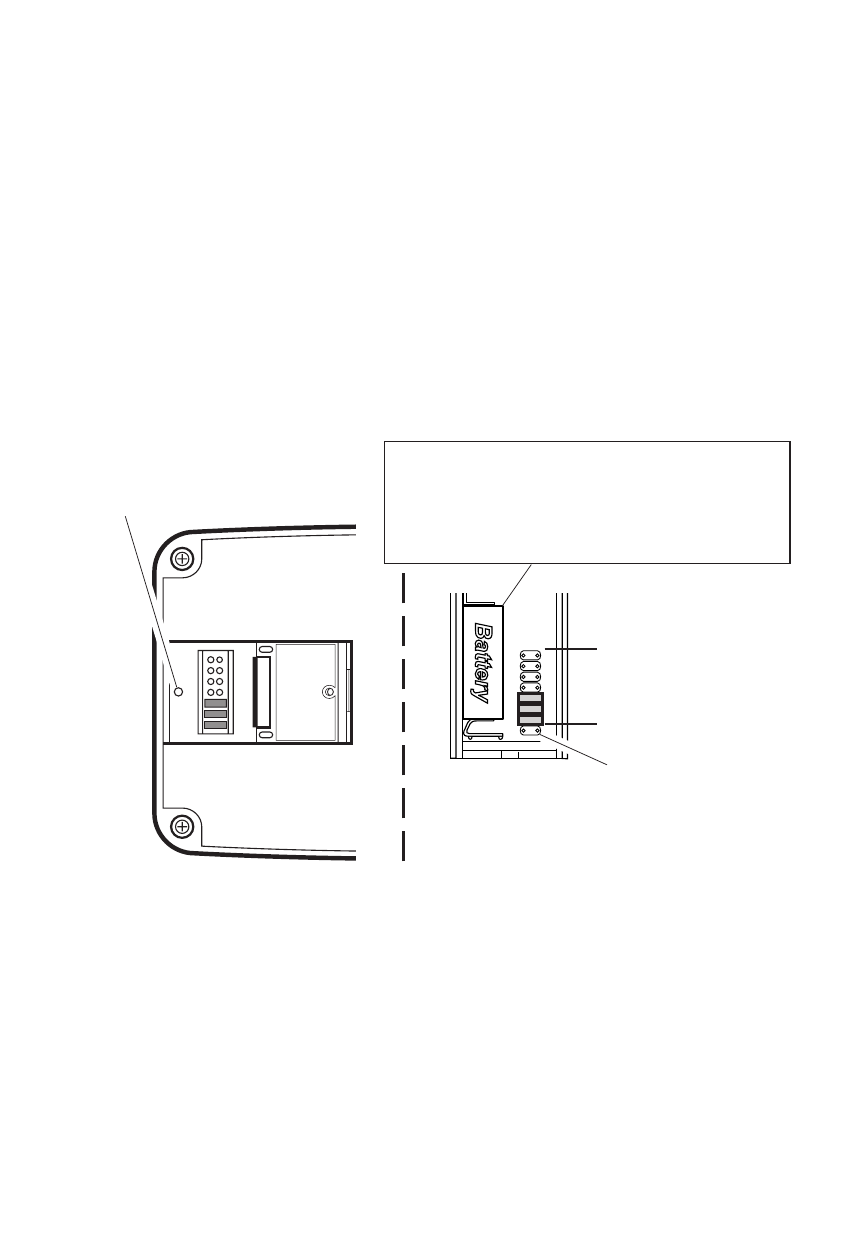

Push button Battery Replacement
Install an alkaline type A23 12 Volt battery.
See diagram inside push button for correct
battery orientation.
* Code Settings 1-7
Must Match Both
Push Button and
Chime
Remove screw to
open access door
Tune Setting
Back of
Chime
Note: Some models might require the use of
tweezers to remove and replace the jumpers.
