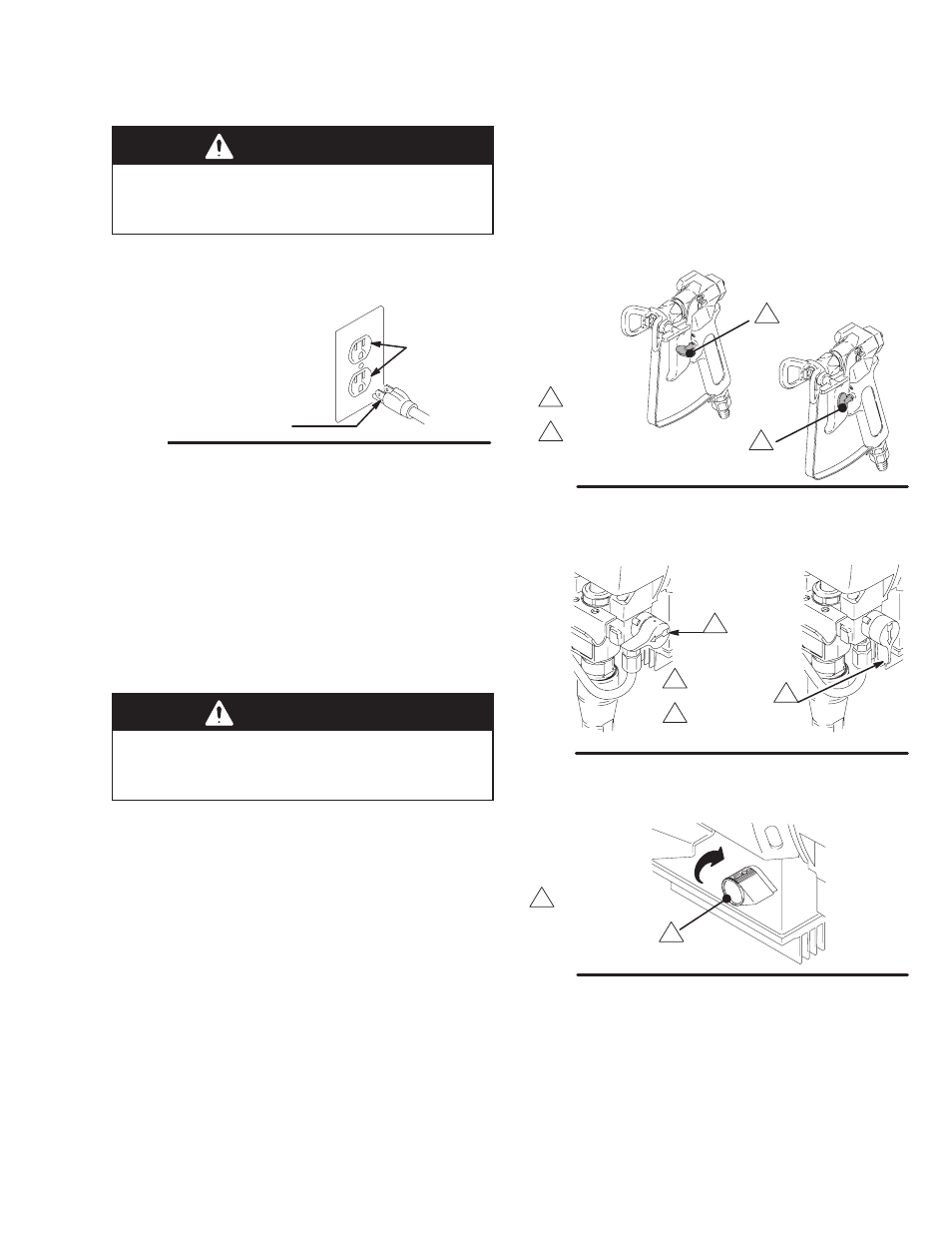

Setup

Grounding

WARNING

Improper installation or alteration of the grounding
plug will result in a risk of electric shock, fire or
explosion that could cause serious injury or death.

1.

This equipment requires a 120 Vac, 60 Hz, 15A
circuit with a grounding receptacle. See Fig. 3.

Fig. 3

Grounding Prong

Grounded
Outlets

2.

Do not alter the ground prong or use an adapter.

3.

A 12 AWG, 3-wire, grounded 150 ft extension cord
may be used with this equipment.

NOTE: Long extension cords affect sprayer perfor-

mance.

How to use the gun safety latch

When engaged, the gun safety latch prevents the gun
from accidental triggering. See Fig. 4.

WARNING

If the gun still sprays when the gun safety latch is
engaged, adjust the gun. See manual 307614,
supplied.

How to use the pressure drain valve

Use the pressure drain valve to relieve fluid pressure
from the pump and to help prime the pump. If the valve
senses an over-pressure condition, it opens automati-
cally to relieve fluid pressure. If this happens, stop
spraying immediately, shut off and unplug the sprayer.
Determine the cause of the problem and correct it
before operating the sprayer again. Refer also to the
Troubleshooting Guide, page 14. See Fig. 5.

How to use the pressure control

The pressure control controls the motor operation so
the sprayer maintains constant fluid pressure at the
pump outlet. Turn the pressure control knob fully
counterclockwise to obtain the minimum setting. Turn
the knob clockwise to increase pressure. See Fig. 6.

03008

Engaged

Disengaged

Fig. 4

1

2

1

2

Closed, or
spray position

Open, or
drain position

Fig. 5

1

2

1

2

7731A

7732A

Fig. 6

+

1

1

Rotate to increase (+)

or decrease (–)

pressure
