308801 31
Technical Data
Power Requirements 120 VAC, 60 Hz, . . . . . . . . . . . . .
1 phase, 15A minimum
Generator 3000W minimum . . . . . . . . . . . . . . . . . . . . . . .
Working Pressure Range 0–3000 psi . . . . . . . . . . . . . . .
(0–210 bar, 21 MPa)
Motor 0.9 HP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
with latex at 2000 psi (138 bar, 13.8 MPa)
Cycles/Gallon (liter) 566 (150) . . . . . . . . . . . . . . . . . . . . .
Maximum Delivery Rating 0.6 gpm (2.3 lpm) . . . . . . . .
Tip Size one gun to 0.026 new tip . . . . . . . . . . . . . . . . . .
with latex at 2000 psi (138 bar, 13.8 MPa)
Power Cord 14 AWG, 3 wire, 15 ft (4.5 m) . . . . . . . . . . .
Inlet Paint Strainer 16 mesh (975 micron) . . . . . . . . . . . .
Stainless Steel Screen, reusable
Outlet Filter 60 mesh (238 micron) . . . . . . . . . . . . . . . . . .
Pump Inlet Size 3/4 npt(f) . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid Outlet Size 1/4 npsm . . . . . . . . . . . . . . . . . . . . . . . .
Wetted Parts: Zinc-plated carbon steel, . . . . . . . . . . . . .
Aluminum, Stainless steel,
Polyethylene, Delrin
R, Leather
Tungsten carbide, Chrome plating, Polyurethane
NOTE:

Delrin

re trademarks of the DuPont Company.
Dimensions
Models 232132 and 232133 Models 232130 and 232131
Weight (dry w/o packaging) 61 lb (27.7 kg) . . . . . . . . . .
Length 25.5 in. (648 mm) . . . . . . . . . . . . . . . . . . . . . . . . .
Width 15 in. (381 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Height 20 in. (508 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight (dry w/o packaging) 73 lb (33.1 kg) . . . . . . . . . .
Length 21 in. (533 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . .
Width 20.5 in. (521 mm) . . . . . . . . . . . . . . . . . . . . . . . . . .
Height (Handle Down) 28.5 in. (711 mm)
Accessories
DANGER LABELS
The English language DANGER label shown on page 4
is also on your sprayer. If you have painters who do not
read English, order one of the following labels to apply to

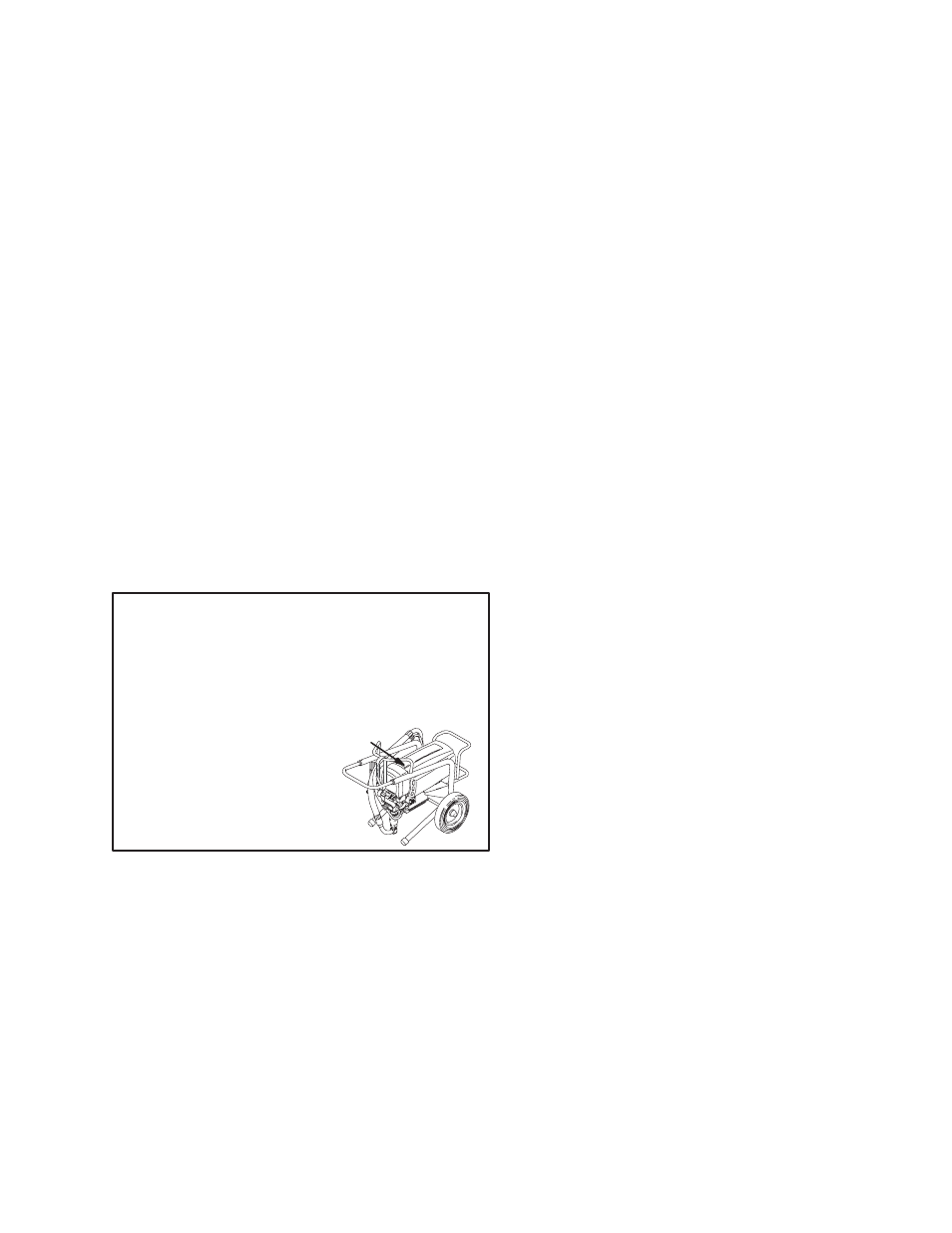

your sprayer. The drawing below shows the best place-
ment of these labels for good visibility.
Order the labels directly from Graco, free of charge:
1–800–328–0211
French 187784
Spanish 185956
German 185961
Greek 186041
Korean 186045
English 187791
Apply other
language here
7728A
Delrin® is a registered trademark of the DuPont Company.
